Square D

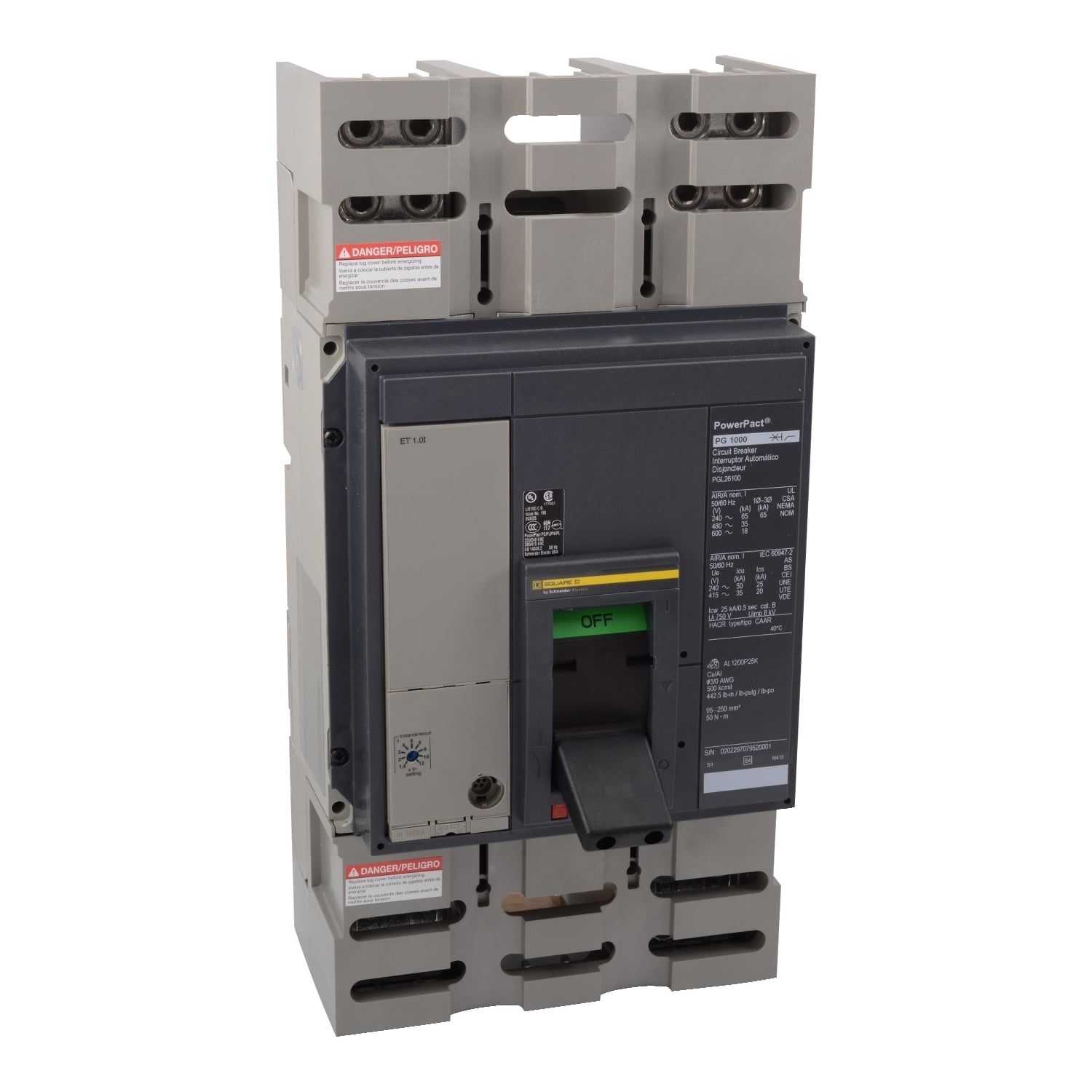

PGL26120 PowerPact MasterPact Type PGL Molded Case Circuit Breaker, 600 V AC, 1200 A, 65 kA at 240 V AC, 35 kA at 480 V AC, 18 kA at 600 V AC Interrupt, 2 Poles, Electronic Trip

MFR:
Schneider Electric
MFR #:
PGL26120
UPC:
785901787143
Item #:
1066517

Availability

Location Available Qty
Available Available to Order
$18,809.92 each

PowerPacTP-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has an electronic trip unit, ET 1.0I. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has lugs on both the line and load sides. This PowerPacT P, 1200A, 2 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Manuals and Documentation
Catalog Number PGL26120
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=431697&lang=en-us
UPC 785901787143
GTIN 00785901787143
Width 8.27
Width UOM Inch
Height 16.16
Height UOM Inch
Depth 8.05 IN
