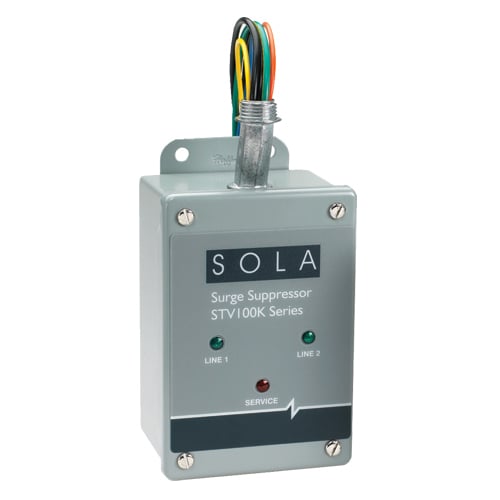

STV100K-23Y STV 100K Surge Protective Device, 400Y/230 V AC, 47 to 63 Hz, 100 kA SCCR, 3 Phase
- MFR:
- SolaHD
- MFR #:
- STV100K-23Y
- UPC:
- 783472019748
- Item #:
- 1066238
STV100K-23Y STV 100K Surge Protective Device, 400Y/230 V AC, 47 to 63 Hz, 100 kA SCCR, 3 Phase
- MFR #:
- STV100K-23Y
- UPC:
- 783472019748
- Item #:
- 1066238
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2,014.80
each
Manuals and Documentation
| Catalog Number | STV100K-23Y |
| Manufacturer | SolaHD |
| Brand | SolaHD |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Distribution Panels (<1200 A), Branch, Lighting and Control Panels, Factory Automation Installations, Dedicated Industrial Equipment |
| Connection | Parallel |
| Frequency Rating | 47 - 63 |
| Material | Metal Enclosure, NEMA 12 |
| Mounting | Flange |
| Phase | 3 |
| Response Time | <0.5 |
| Special Features | 100,000 amp peak current rating provides all mode protection against severe transients, Low clamping levels for more effective protection, 65 kAIC fault current fusing level provides safety and NEC conformance, LED status and audible alarms, Compact, rugged metal. |
| Standard | cULus Listed: UL 1449, 3rd Edition, type 2 locations, UL Listed: NEMA type 12 enclosure, CSA Listed: CSA C22.2 No. 8, CSA TI I-IIB, TI A-24, RoHS Compliant |
| UPC | 783472019748 |
| GTIN | 00783472019748 |
| Item Type | STV 100 K Series Surge Protection Devices |
| Size | 6.0 W x 4.0 D x 3.2 H |
| Environmental Conditions | 0 to 95% non condensing |
| Operating Temperature | -40 to 60 |
| Type of Indicators | Red & Green LED, Audible Alarm |
