KILLARK

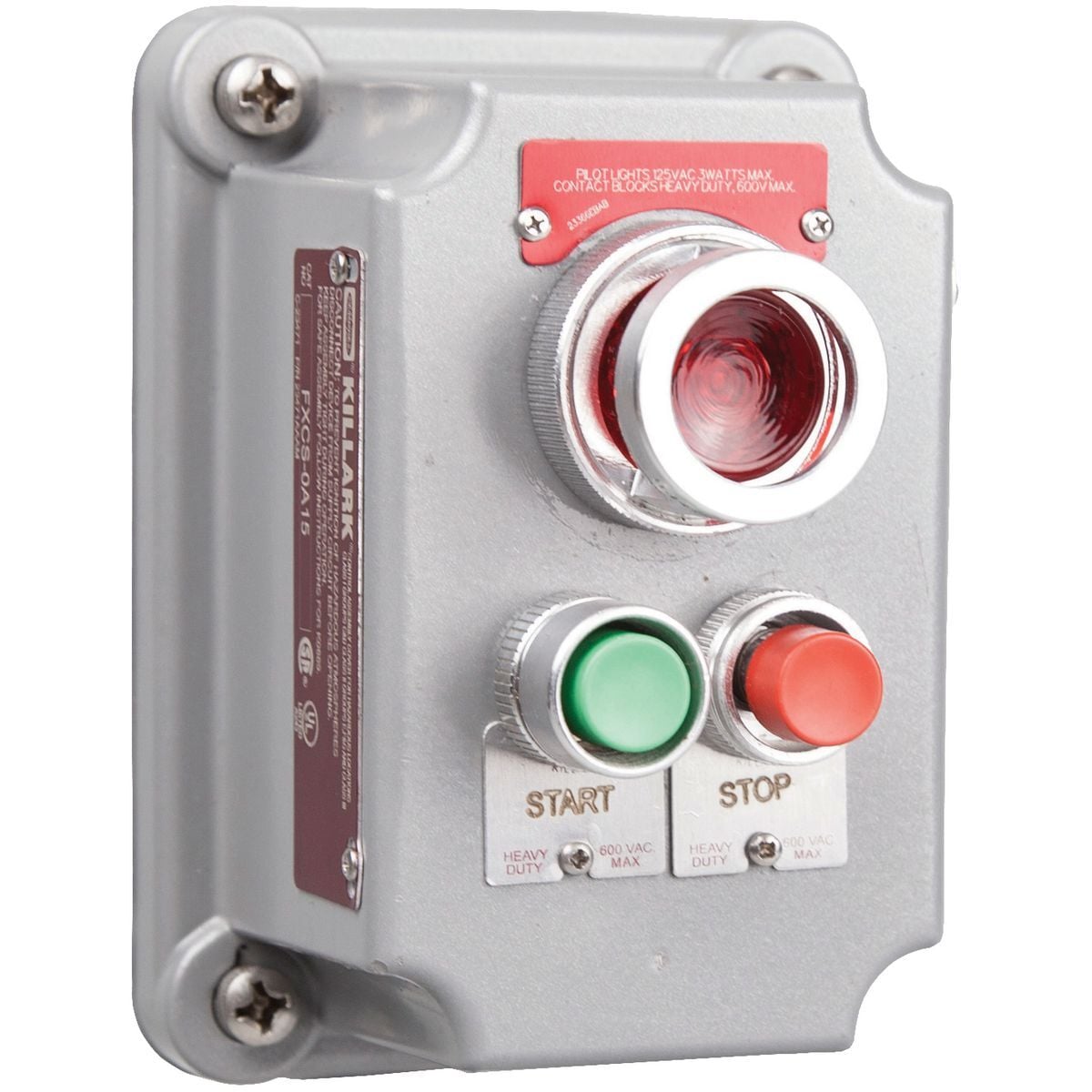

FXCS-0A15 FXCS Factory Sealed Control Station, 120/600 V AC, 10 A, 1NO-1NC Contact, 3 Operators, NEMA 3/7/9 NEMA Rating

MFR:
Killark, a Hubbell affiliate
MFR #:
FXCS-0A15
UPC:
783936200422
Item #:
1065408

Availability

Location Available Qty
Available Available to Order
$1,913.04 each
Manuals and Documentation
Catalog Number FXCS-0A15
Manufacturer Killark, a Hubbell affiliate
Brand KILLARK
Country of Origin United States
Made in USA Yes
Action Momentary
Actuator Double Pushbutton and Pilot Light
Amperage Rating 10
Application SEAL-X Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings
Color Green;Red P.B.; Red Light
Contact Configuration 1-NO/1-NC
Contact Rating 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC;
Material Copper-free aluminum
Number of Poles 2
Special Features Killark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
Standard UL, CSA
UPC 783936200422
GTIN 00783936200422
Item Type Aluminum Factory Sealed Cover With Pilot Light And Two Mini Push Buttons
Size 6.63 in x 6 in x 4.38 in
Environmental Conditions Hazardous locations
Voltage Rating Pilot light: 120 VAC. Push button: 600 VAC maximum.
Wattage 3W
