SCHNEIDER ELECTRIC

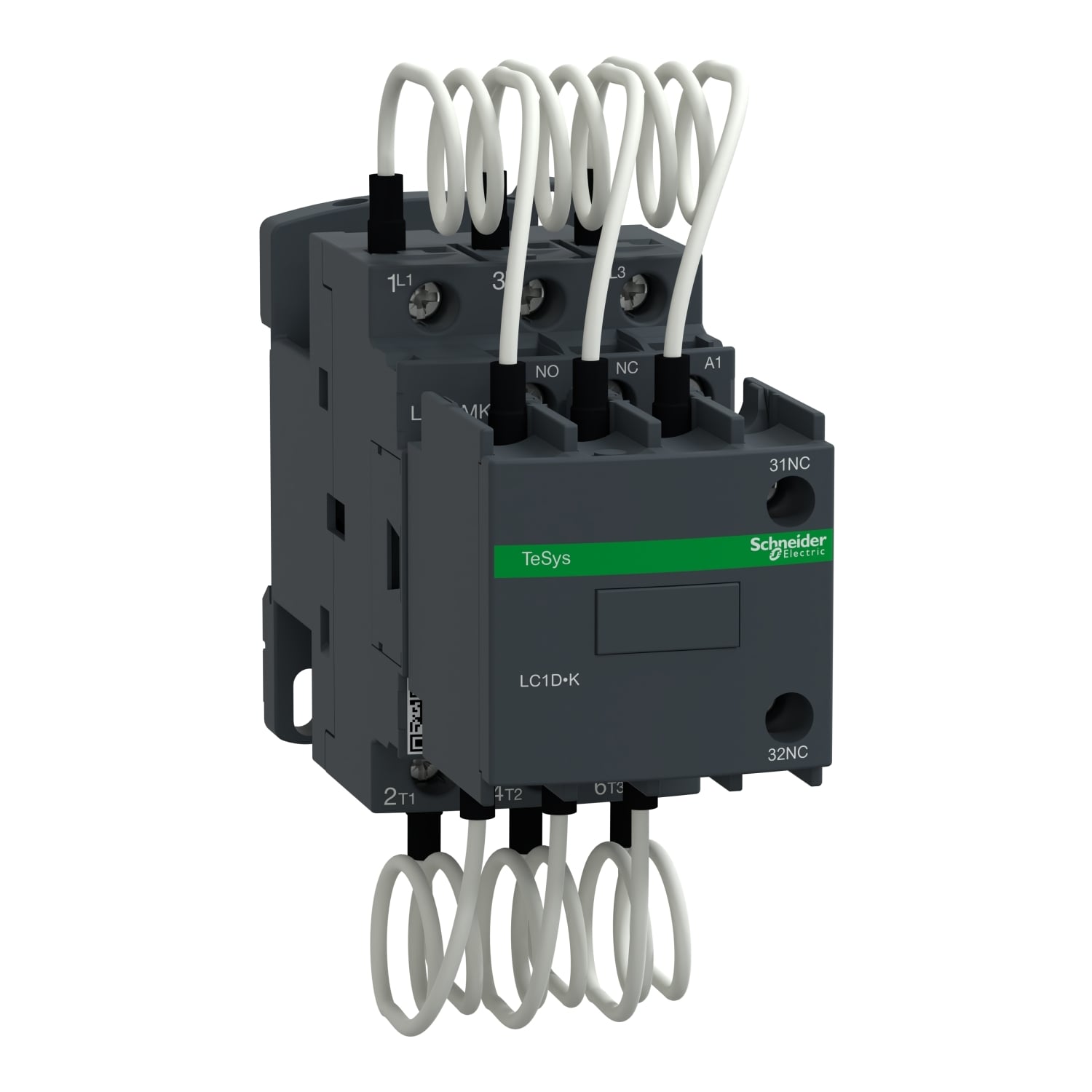

LC1DMKV7 LC1DMK Series Capacitor Duty Contactor, 400 V AC v coil, 3NO contact, 3 poles

MFR:
Schneider Electric
MFR #:
LC1DMKV7
Item #:
1064314

Availability

Location Available Qty
Available Available to Order
$1,149.44 each

TeSys Deca contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 25kVAR@400V 50Hz (42kVAR@690V). It provides a 400V 50/60Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Certified IEC 60947 and compliant with shunt capacitors standard IEC 60831.

Manuals and Documentation
Catalog Number LC1DMKV7
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application Power factor correction;Control
Coil Voltage 400 V AC 50/60 Hz
Connection Control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end;power circuit: screw clamp terminals 1 2.5-16 mm² - cable stiffness: solid;power circuit: screw clamp terminals 2 2.5-6 mm² - cable stiffness: solid;power circuit: screw clamp terminals 1 1.5-10 mm² - cable stiffness: flexible without cable end;power circuit: screw clamp terminals 2 1.5-6 mm² - cable stiffness: flexible without cable end;power circuit: screw clamp terminals 1 1-10 mm² - cable stiffness: flexible with cable end;power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: fle
Contact Configuration 3 NO;1 NO + 2 NC instantaneous;Mechanically linked 1 NO + 2 NC IEC 60947-5-1
Mounting Din Rail
Standard IECEE CB Scheme;UKCA;EN/IEC 60947-1;EN/IEC 60947-4-1;IEC 60335-1
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=268069046&lang=en-us
GTIN 03606480401244
Item Type Capacitor duty contactor
