Telemecanique

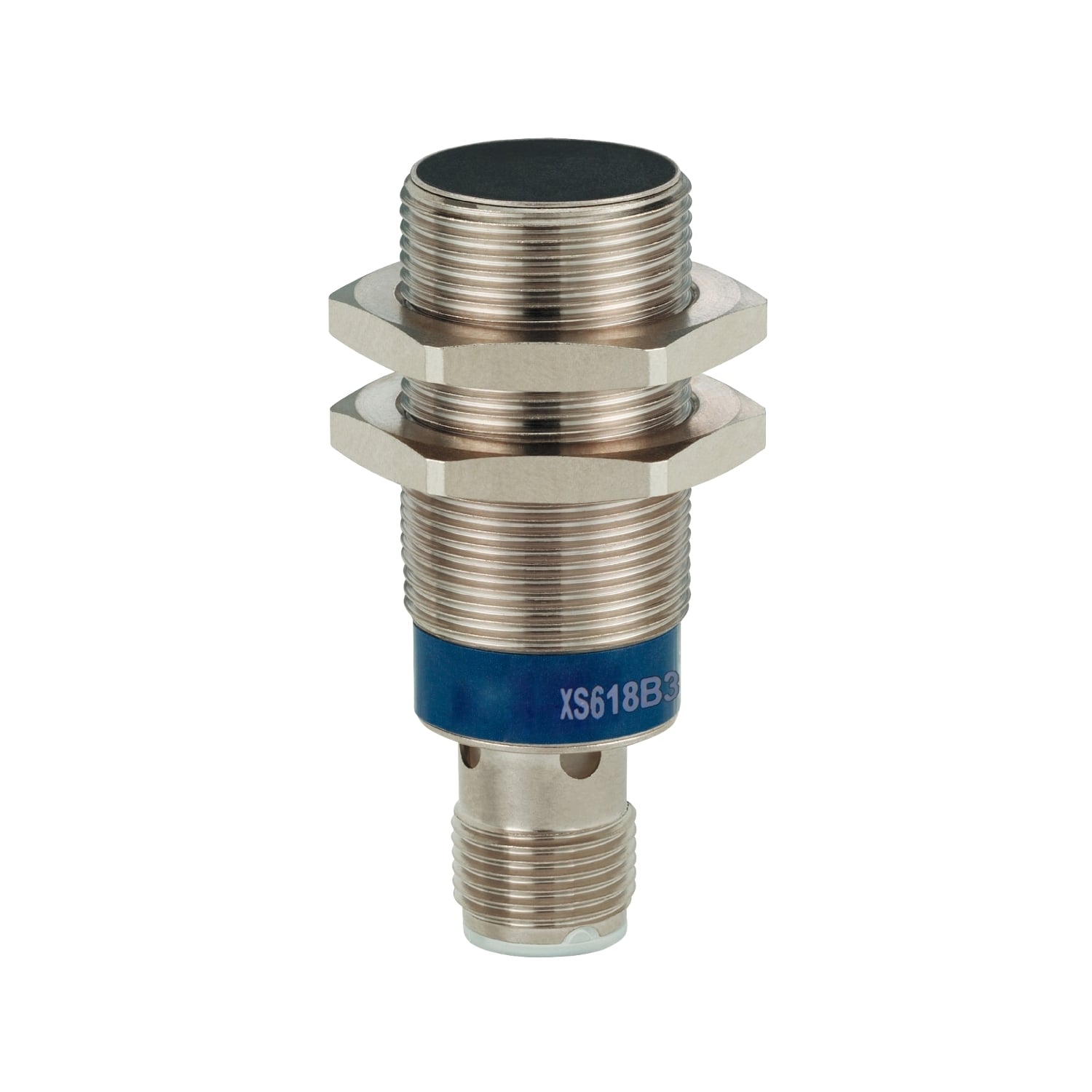

XS618B3DAM12 OsiSense XS Fixed Inductive Sensor, Proximity Sensor, Discrete Output, 1NO Contact, 12 to 24 V DC

MFR:
Telemecanique Sensors
MFR #:
XS618B3DAM12
Item #:
1063316

Availability

Location Available Qty
Available Available to Order
$120.62 each

This XS cylindrical (M18 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. It has a supply voltage of 12V to 24V DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable and has an increased sensing range. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has 4 LED viewports for easy sensor status viewing, setup and troubleshooting. IP65, IP67 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25C) and hot environments (+70C). It has a standard M12 connector, compatible with all existing market sensor cabling. It is CSA, UL certified.

Manuals and Documentation
Catalog Number XS618B3DAM12
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Unknown
Made in USA No
Application -
Connector Male connector M12, 4 pins
Enclosure Nickel Plated Brass
Indicator Output state 1 LED yellow)
Material Metal
Mounting Flush
Sensing Range > 0.16...0.31 in (> 4...8 mm)
Special Features IP67 CONFORMING TO IEC 60529-IP69K CONFORMING TO DIN 40050,MALE CONNECTOR M12 4 PINS
Standard IP67 conforming to IEC 60529;IP69K conforming to DIN 40050;CE
Supply Voltage 12...24 V DC reverse polarity protection
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=7050385&lang=en-us
GTIN 03389119045575
Item Type Inductive proximity sensor;Cylindrical M18
Operating Temperature -25-70 A Degrees C
