Square D

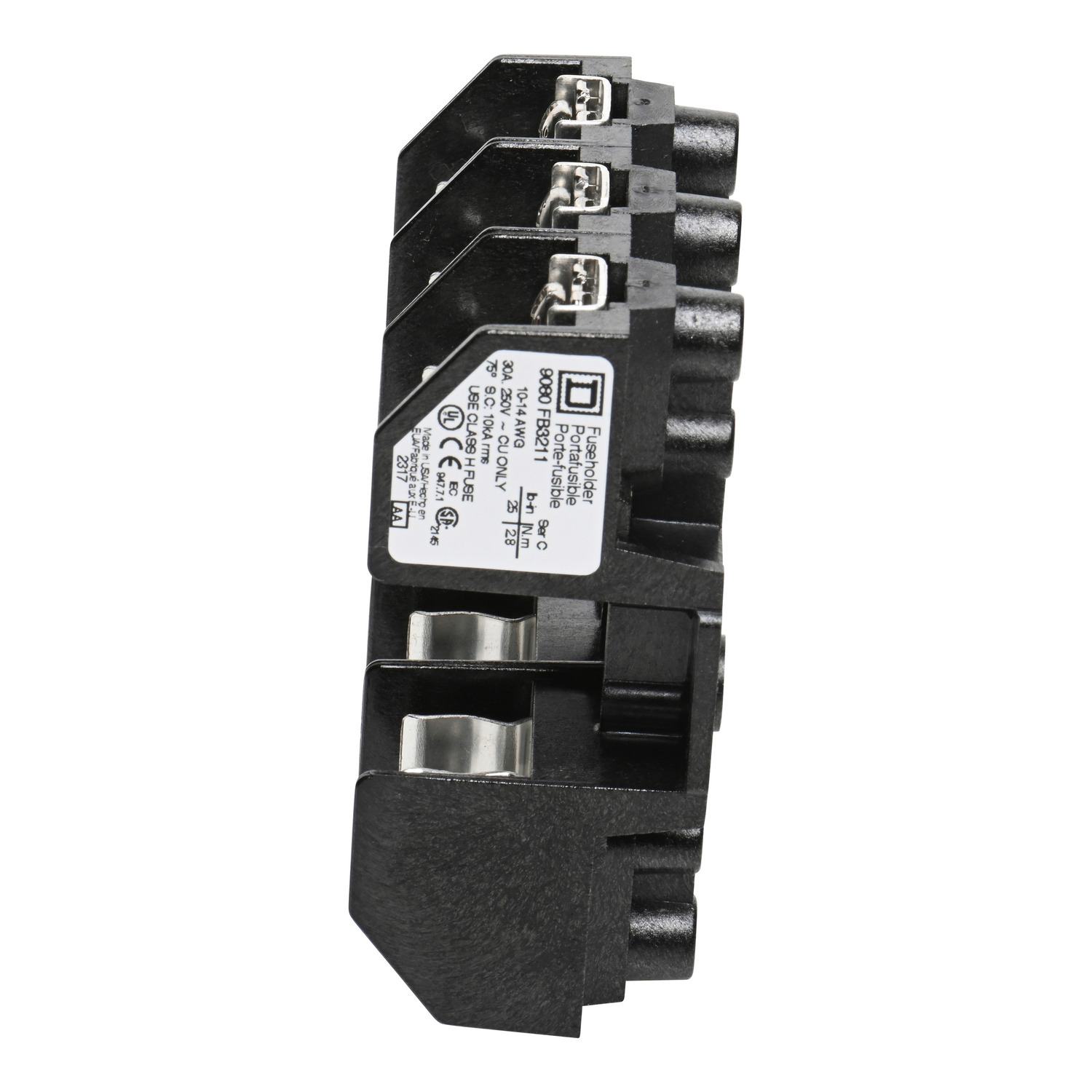

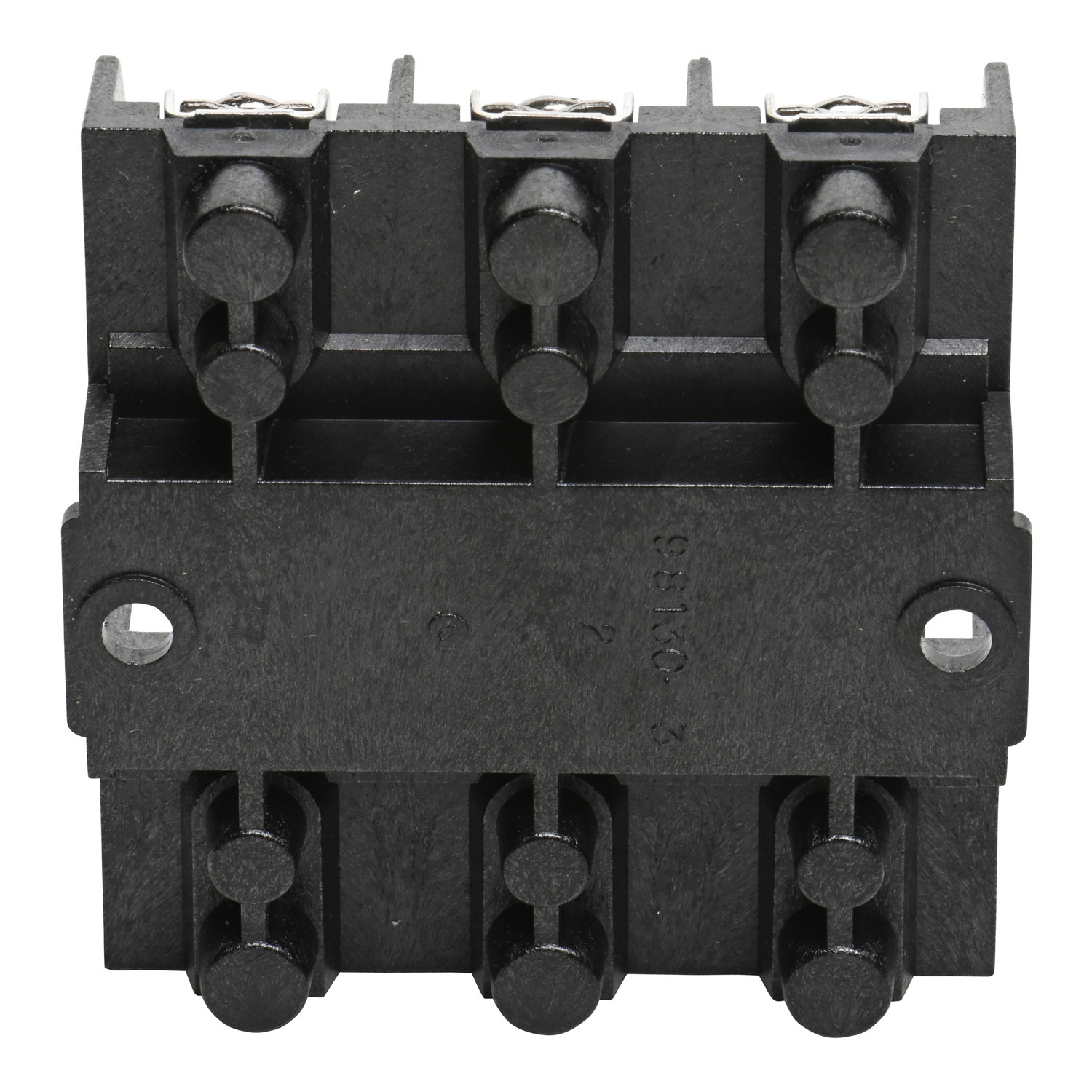

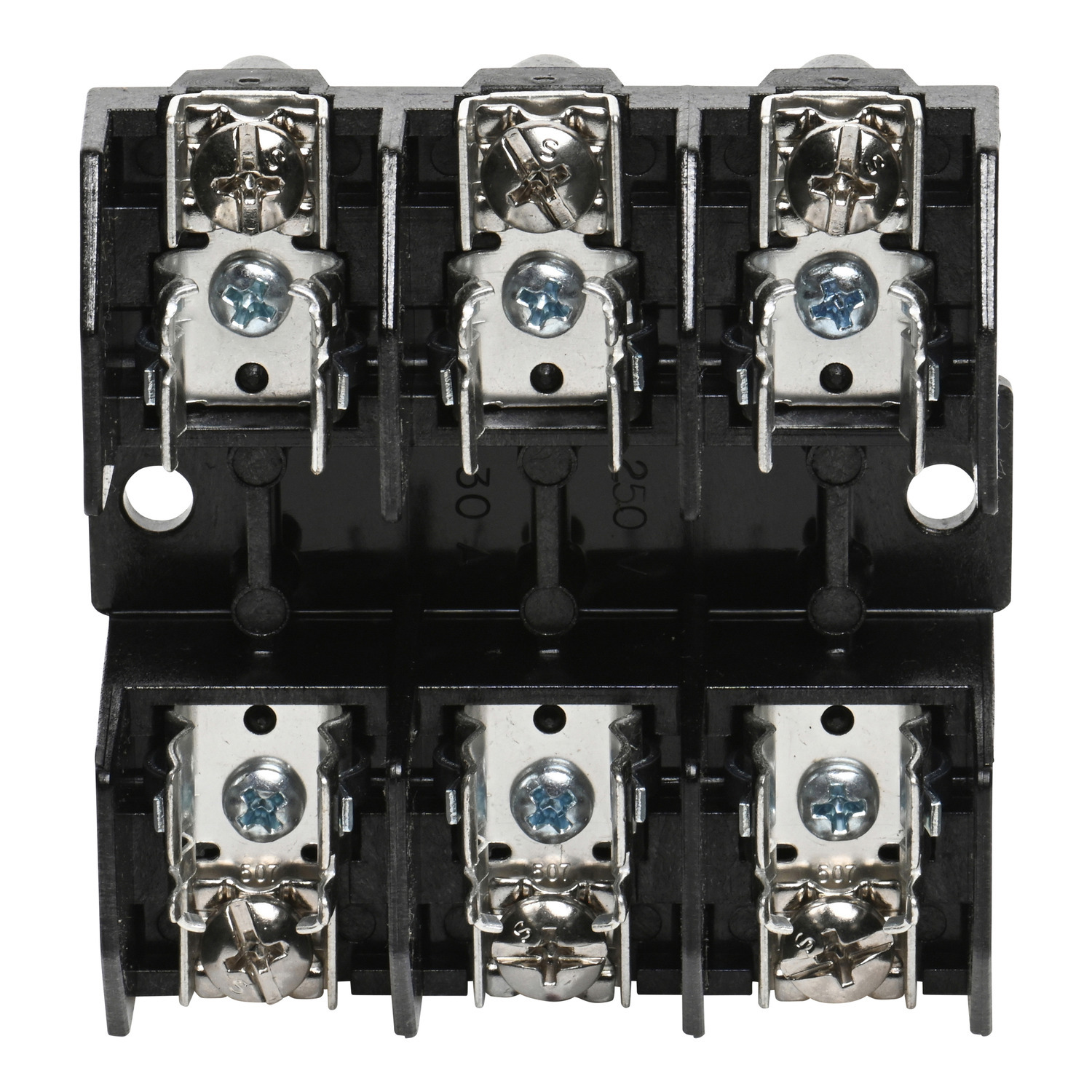

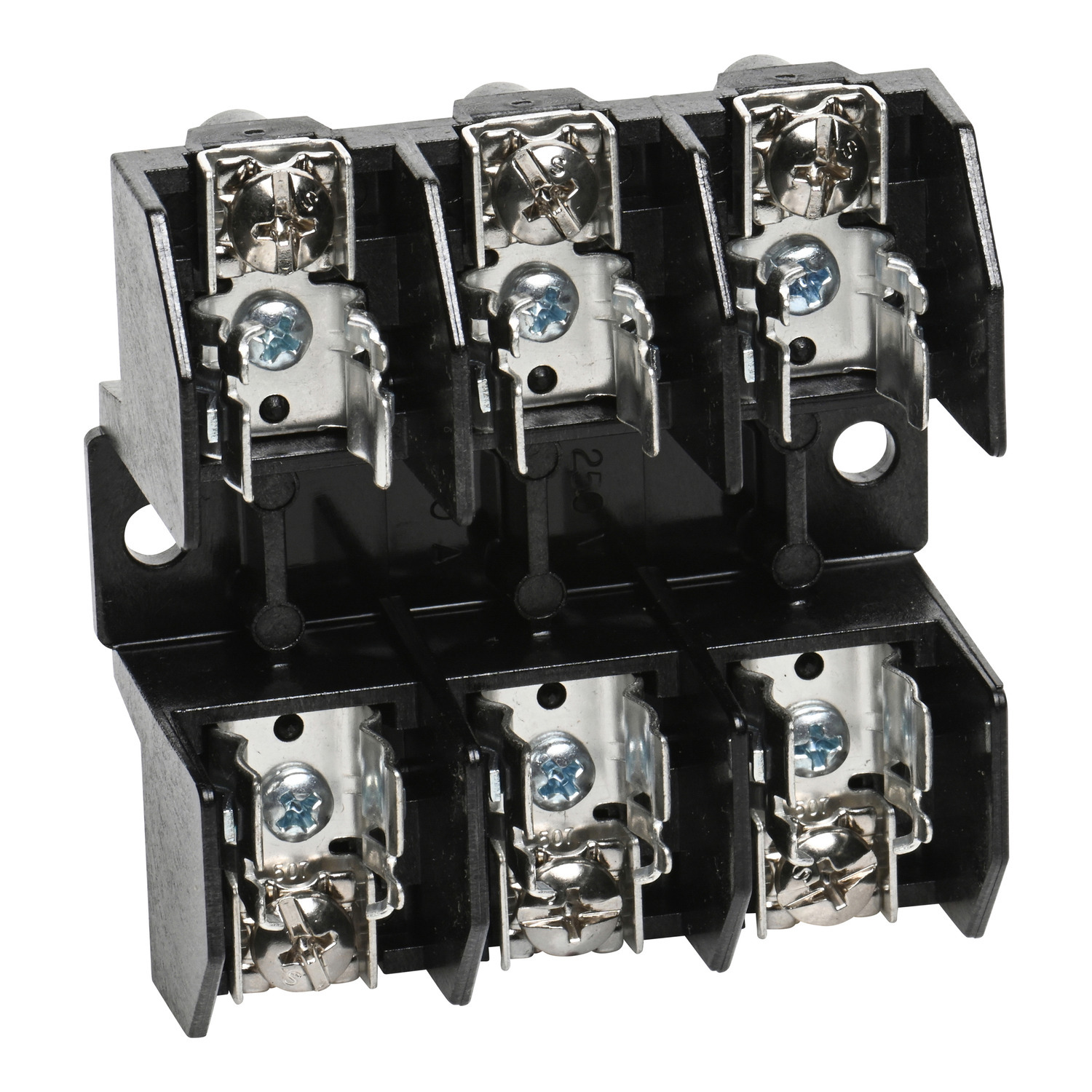

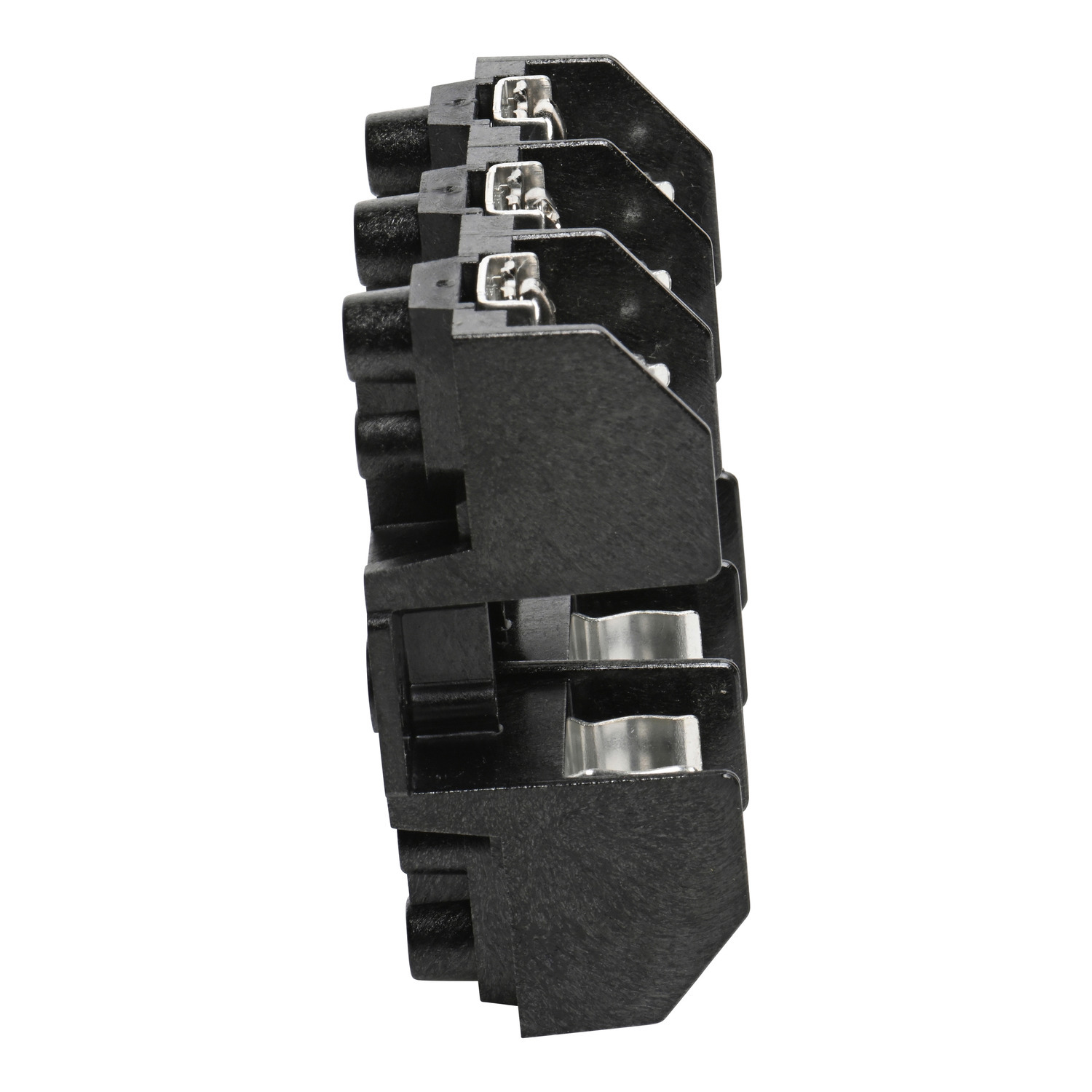

9080FB3211 Type FB Fuse Holder, 250 V AC, 30 A, Class: H, 14 to 10 AWG Wire, 3 Poles

MFR:
Schneider Electric
MFR #:
9080FB3211
UPC:
785901097075
Item #:
106161

Availability

Location Available Qty
Available Available to Order
$61.59 each

Type S non-reversing magnetic starters are for motor control applications. NEMA Size 1 starters have ratings of 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC poly phase and has a maximum rating of 27 Amps. This 3 pole starter is for poly phase applications. These starters are available with a wide variety of replaceable coil voltages. Starter has a 208 VAC 60 Hz operating coil. The Motor Logic solid state overload relay is used to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.56 inches deep. A wide variety of accessories are available for Type S starters. Type S starters are UL listed and CSA certified for global applications.

Manuals and Documentation
Catalog Number 9080FB3211
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Application 0.5625 x 2 in;H
Connection screw terminals 25 lbf.in AWG 14...AWG 10 copper;Pressure wire clamp;AWG 14...AWG 10 copper or aluminium
Material Thermoplastic: block
Mounting Surface
Standard CE;CSA file 70360 class 6225 01;UL listed file E40747 CCN IZLT
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=371735&lang=en-us
UPC 785901097075
GTIN 00785901097075
Item Type Fuse holder
Width 2.95
Width UOM Inch
Height 3.0
Height UOM Inch
Depth 1.38 IN
