Discontinued

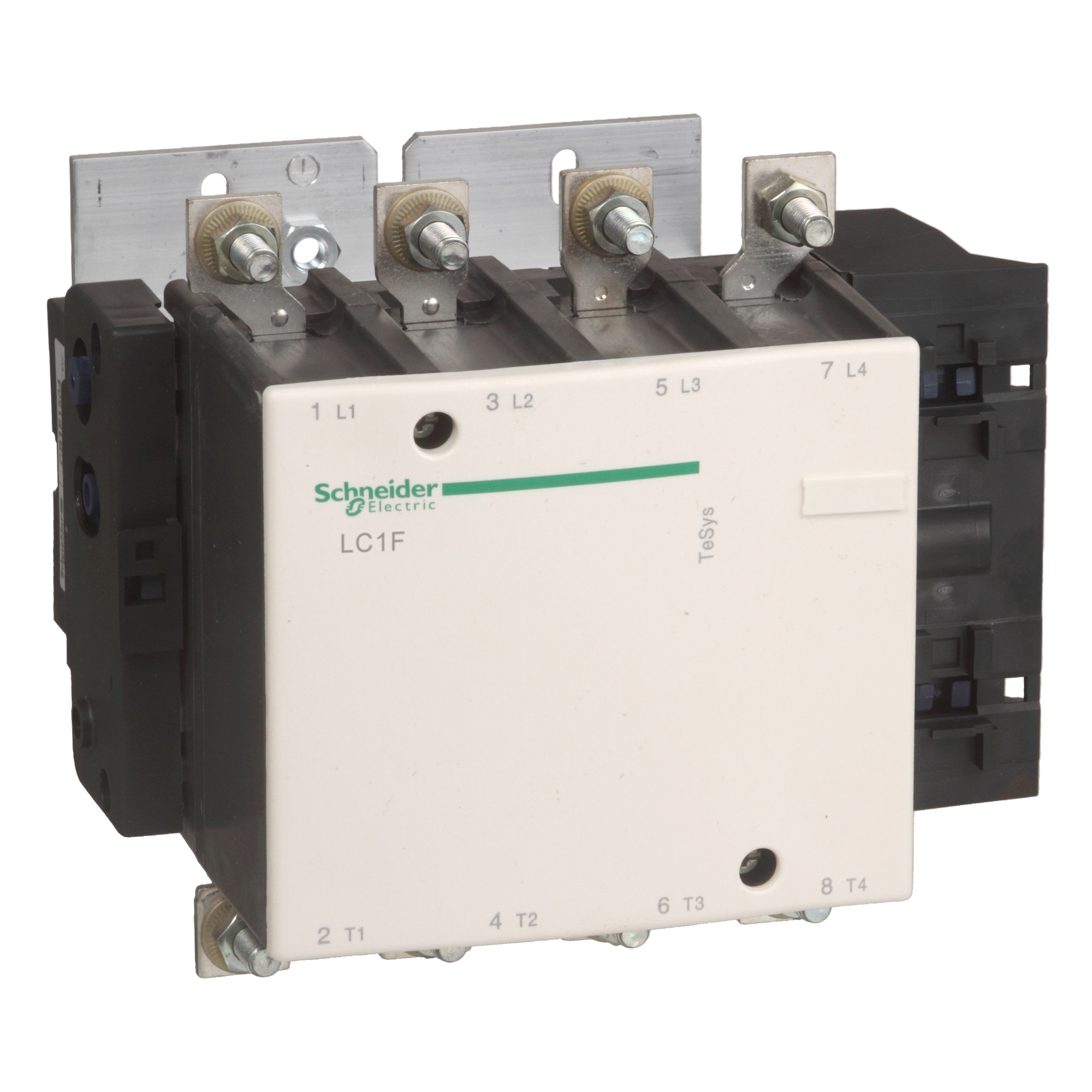

LC1F3304 LC1F Series Contactor, 24 to 460 V DC v coil, 400 A, 4NO contact, 4 poles
- MFR:
- Schneider Electric
- MFR #:
- LC1F3304
- Item #:
- 1061006
Discontinued
LC1F3304 LC1F Series Contactor, 24 to 460 V DC v coil, 400 A, 4NO contact, 4 poles
- MFR #:
- LC1F3304
- Item #:
- 1061006
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2,037.57
each
TeSys F contactor, 4 poles (4NO), 400A/1000V AC-1, for non-inductive load applications. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Manuals and Documentation
| Catalog Number | LC1F3304 |
| Manufacturer | Schneider Electric |
| Brand | Schneider Electric |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Czech Republic |
| Made in USA | No |
| Application | Resistive load |
| Coil Voltage | 24...1000 V AC 40...400 Hz with LX1/LX9 coil;24...460 V DC with LX4 coil;100...250 V AC 50/60 Hz with LXE coil;100...380 V DC with LXE coil |
| Standard | ABS;CSA;UL;RMRoS;DNV;CB;BV;LROS (Lloyds register of shipping);RINA;UKCA |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=621496&lang=en-us |
| GTIN | 03389110231144 |
| Item Type | Contactor;LC1F |
