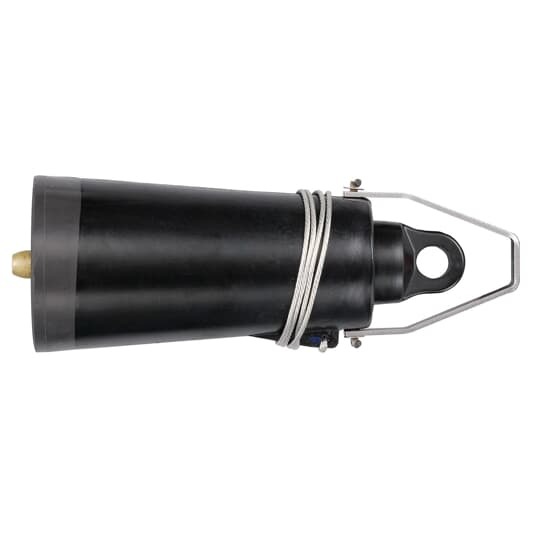

376DRG Elastimold Insulated Loadbreak Protective Cap With Ground Lead Wire, Insulated Cuff and Test Point, 35 kV, 200 A, For Use With 35 kV Class, 200 A Loadbreak Single and Triple Phase System, 14 AWG Ground Lead Wire, -40 to 65 deg C, EPDM Rubber
- MFR:
- ABB - Installation Products
- MFR #:
- 376DRG
- UPC:
- 783786646487
- Item #:
- 1058780
376DRG Elastimold Insulated Loadbreak Protective Cap With Ground Lead Wire, Insulated Cuff and Test Point, 35 kV, 200 A, For Use With 35 kV Class, 200 A Loadbreak Single and Triple Phase System, 14 AWG Ground Lead Wire, -40 to 65 deg C, EPDM Rubber
- MFR #:
- 376DRG
- UPC:
- 783786646487
- Item #:
- 1058780
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$751.06
each
| Catalog Number | 376DRG |
| Manufacturer | ABB - Installation Products |
| Brand | Elastimold |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Fully shielded, fully submersible, hot stick operable, separable connectors designed for energized operation. They are suitable for use on 35kV class loadbreak Single and Triple Phase systems |
| Material | EPDM Rubber |
| Special Features | 35kV, 200 Amp Loadbreak Rated. Molded EPDM Rubber. Includes all brass probe. Provision for hotstick operation. Ground lead wire #14 AWG attached. Insulated cuff for extra protection. Non-corrosive capacitive test point |
| Standard | ANSI/IEEE 386 |
| UPC | 783786646487 |
| GTIN | 00783786646487 |
| Item Type | Insulated Cap |
| Size | 3.13 inch (79.4 mm) Diameter |
| Temperature Rating | -40 to +65 C |
