SQUARE D

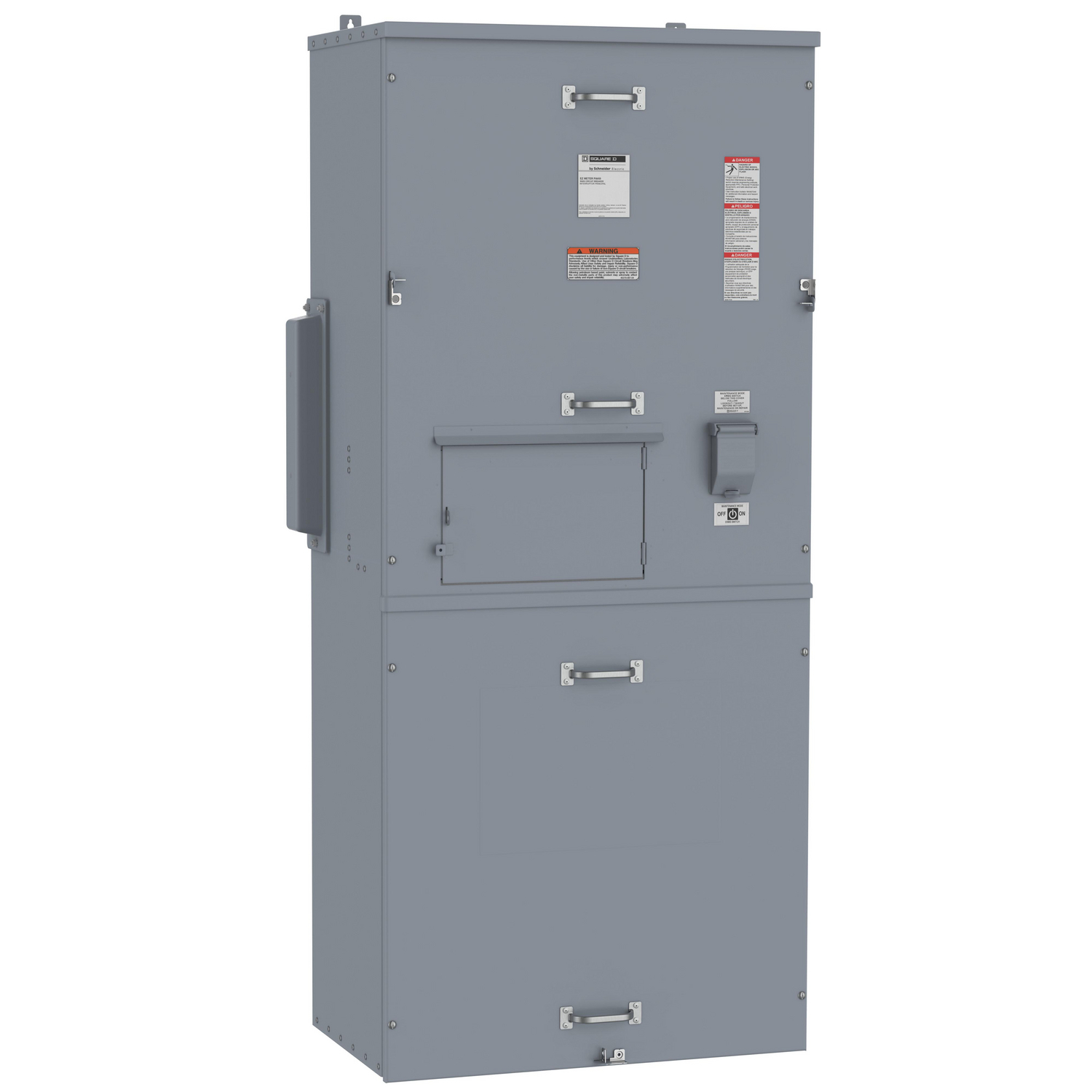

EZM12000CBMS EZ Meter Main Energy Reduce Maint Switch, 2000 Amp, Main, 100 kAIC Breaker, OH, UG, 1 Phase

MFR:
Schneider Electric
MFR #:
EZM12000CBMS
UPC:
785901657101
Item #:
1058686

Availability

Location Available Qty
Available Available to Order
$75,225.93 each

Square D EZ Meter-Pak meter centers provide reliable, versatile, and compact multi metering equipment for multi unit residential and commercial construction. The main devices are available as main circuit breakers, main fusible switches, or main lug terminal boxes. The compact footprint makes them easier to handle and install. Visi-Tite nuts eliminate the need for time-consuming torque readings when connecting devices. External mounting channels permit immediate installation with no disassembly or adjustment required. EZM main devices are suitable for use as service equipment with required grounding and bonding. This main circuit breaker provides 1 phase in, 1 phase out for a 3 wire configuration. It accepts 120/240VAC incoming service from OH or UG feeds. The unit is rated for 2000A with the busbar rated for 1200A. With ERMS (energy reducing maintenance switch), it has a short circuit current rating of 65kA. The enclosure is painted steel Type 3R. This EZ Meter-Pak meter center complies with UL standards.

Manuals and Documentation
Catalog Number EZM12000CBMS
Manufacturer Schneider Electric
Brand SQUARE D
Country of Origin United States
Made in USA Yes
Bypass Type Review
Enclosure Painted steel
Mounting Surface
Phase 1
Special Features Main Circuit Breaker
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=469269184&lang=en-us
UPC 785901657101
GTIN 00785901657101
Item Type Meter center main unit
Width 30.2
Width UOM Inch
Height 68.9
Height UOM Inch
Depth 18.31 IN
