Legrand-Pass & Seymour

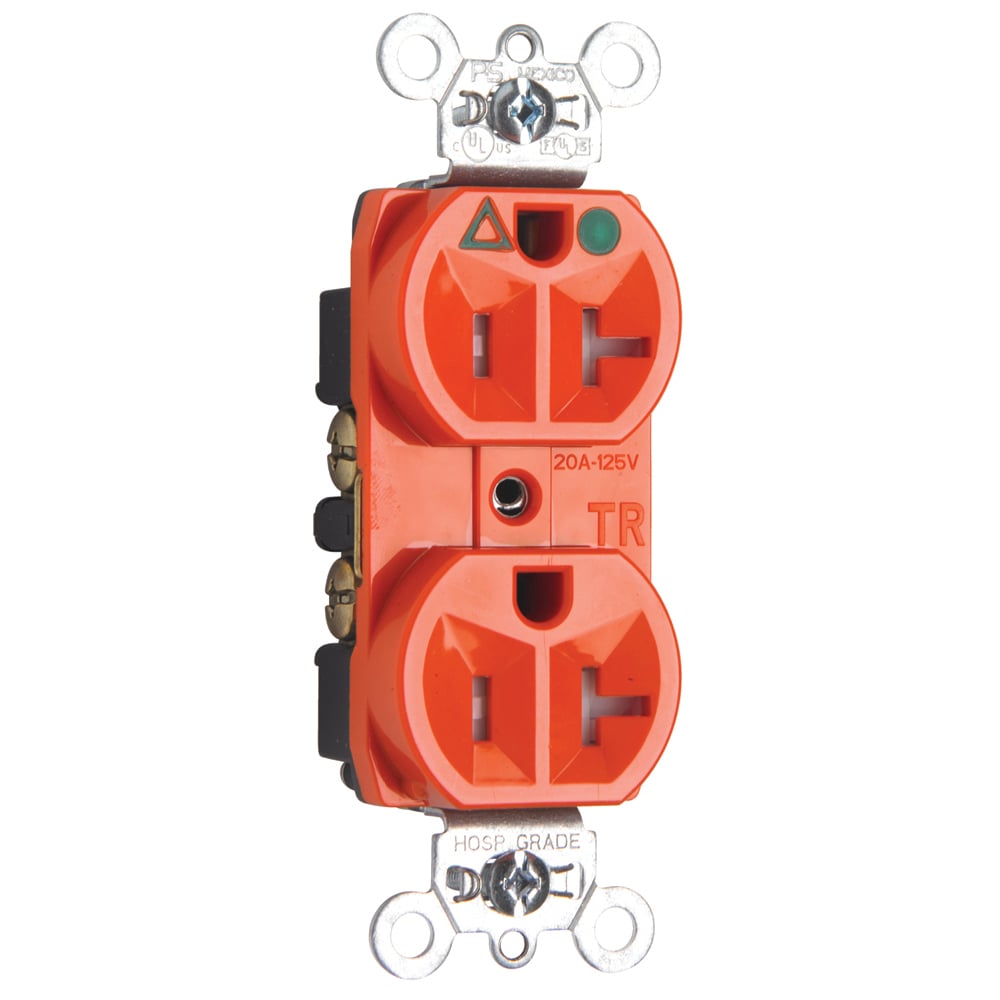

TRIG8300 Isolated Ground Receptacle, Back and Side Wire, 20 Amp, 125V, Orange

MFR: Legrand-Pass & Seymour
MFR #: TRIG8300
UPC: 785007011951
Item #: 1057013
TRIG8300 Isolated Ground Receptacle, Back and Side Wire, 20 Amp, 125V, Orange
Legrand-Pass & Seymour

TRIG8300 Isolated Ground Receptacle, Back and Side Wire, 20 Amp, 125V, Orange

MFR #: TRIG8300
UPC: 785007011951
Item #: 1057013
Availability
Location Available Qty
Available Available to Order
$60.87 each

Tamper-Resistant Isolated Ground Duplex Receptacle, Back and Side Wire, 20amp 125volt, Orange.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Catalog Number
TRIG8300
Manufacturer
Legrand-Pass & Seymour
Brand
Legrand-Pass & Seymour
Country of Origin
Mexico
Made in USA
No
Amperage Rating
20
Application
Commercial
Color
Orange
Connection
Back and side wire
Material
Nylon
Mounting
Wall
NEMA Rating
5
Number of Poles
2
Number of Wires
3
Special Features
Dual mechanical shutter system to help prevent insertion of foreign objects. IG symbol and Isolated Ground markings for easy identification and circuit delineation. Auto-ground clip assures positive ground. Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring. Backed-out tri-drive brass terminal screws for faster installation. Internal screw-pressure-plate back and side wire capability. Two back wire holes for additional wiring flexibility. Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly. .032 inch thick brass triple-wipe power contacts. Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
Standard
cULus UL498
UPC
785007011951
GTIN
00785007011951
Item Type
Tamper-Resistant Isolated Ground Hospital Grade Receptacle, Heavy-Duty
Size
1.187 L x 1.25 W x 3.625 H
Environmental Conditions
Flammability: UL94 V2
Temperature Rating
-40° - 60° C
Voltage Rating
125
Wire Size
14 - 10 AWG
