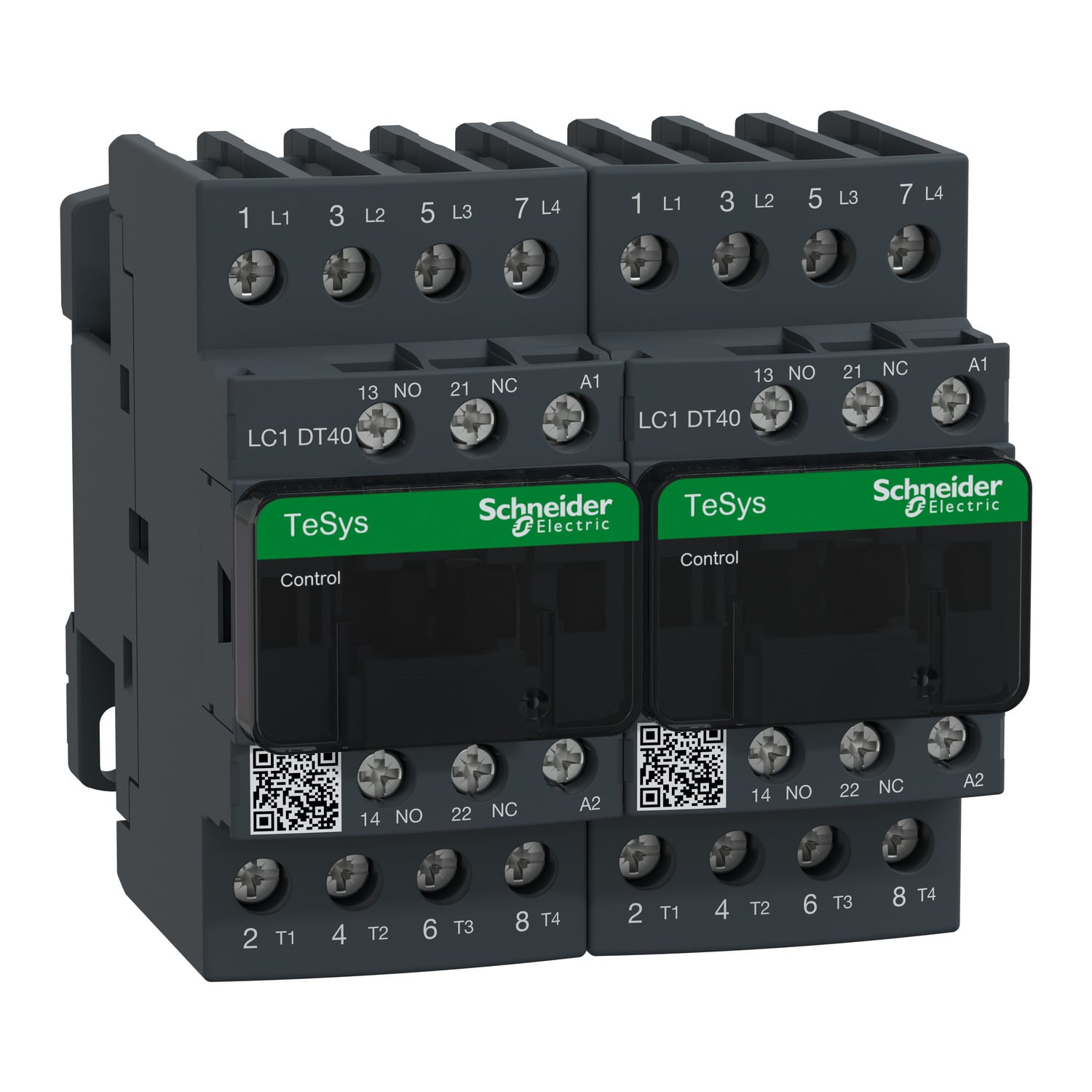

LC2DT40P7 TeSys D Changeover Contactor With Mechanical and Safety Cover, 230 V AC V Coil, 40 A, 4NO Contact, 4 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC2DT40P7
- Item #:
- 1056383
LC2DT40P7 TeSys D Changeover Contactor With Mechanical and Safety Cover, 230 V AC V Coil, 40 A, 4NO Contact, 4 Poles
- MFR #:
- LC2DT40P7
- Item #:
- 1056383
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$950.85
each
TeSys Deca changeover contactor, 4 poles (4NO), for non-inductive load applications up to 40A/690V AC-1. It provides 230V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired changeover power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Manuals and Documentation
| Catalog Number | LC2DT40P7 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | Resistive load |
| Coil Voltage | 230 V AC 50/60 Hz |
| Contact Configuration | 1 NO + 1 NC |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=629088&lang=en-us |
| GTIN | 03389110246988 |
| Item Type | Changeover contactor;LC2D |
