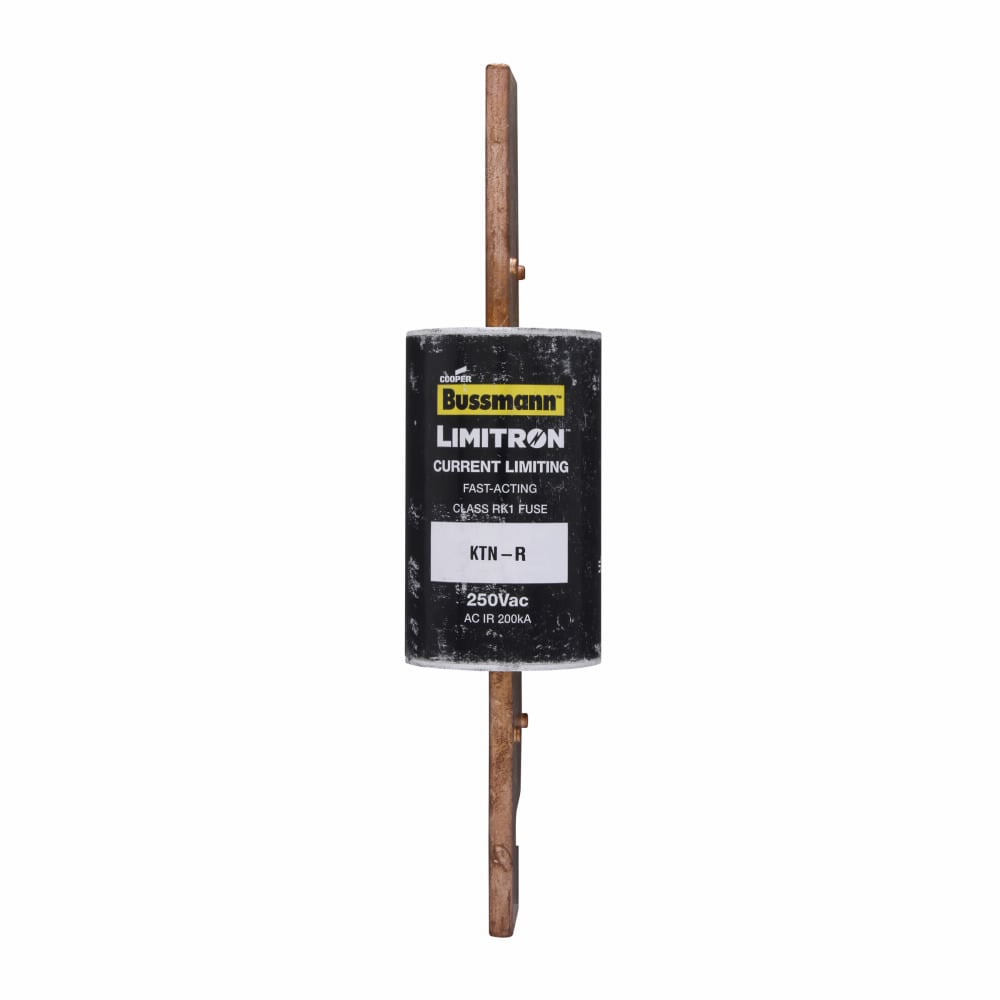

Eaton Bussmann series KTN-R fuse, LIMITRON Fast-acting fuse, 70/30 brass end cap, Panelboards, 600 A, 1, Class RK1, Non-indicating, Blade end x blade end, 100 kAIC at 250 Vdc,200 kAIC at 250 V, Melamine glass tube, Standard, 250 V, 250 Vdc
MFR: Eaton Bussmann
MFR #: KTN-R-600
UPC: 051712407281
Item #: 105245
Eaton Bussmann series KTN-R fuse, LIMITRON Fast-acting fuse, 70/30 brass end cap, Panelboards, 600 A, 1, Class RK1, Non-indicating, Blade end x blade end, 100 kAIC at 250 Vdc,200 kAIC at 250 V, Melamine glass tube, Standard, 250 V, 250 Vdc
MFR #: KTN-R-600
UPC: 051712407281
Item #: 105245
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2850.70
each
Bussmann's UL Class RK1 fuse offering includes the industry's most recognized Low-Peak dual-element, current-limiting, time-delay fuses (LPN-RK and LPS-RK) which are also available with optional indication on select ratings (see product data sheet). Complementing the Low-Peak product offering is Bussmann's Limitron family of fast-acting fuses (KTN-R, KTS-R, KWN-R and KWS-R) fuses.
- Catalog Number
- KTN-R-600
- Manufacturer
- Eaton Bussmann
- Brand
- Eaton
- Sub Brand
- Bussmann Series
- Country of Origin
- Multiple
- Made in USA
- No
- Amperage Rating
- 600
- Application
- Ind Facilities & Factories - Facility: Safety and Security Systems
- Connection
- Blade end x blade end
- Interrupt Rating
- 100 kAIC at 250 Vdc|200 kAIC at 250 Vac
- Material
- Melamine glass tube
- Special Features
- 70/30 brass end cap
- Standard
- Not Applicable
- UPC
- 051712407281
- GTIN
- 00051712407281
- Item Type
- Fuse
- Dimensions
- 10.3800 IN X 2.5900 IN X 2.5900 IN
- Weight UOM
- Pounds
- Size
- 2.59 In Diameter X 10.38 In Length
- Voltage Rating
- 250 Vac, 250 Vdc
