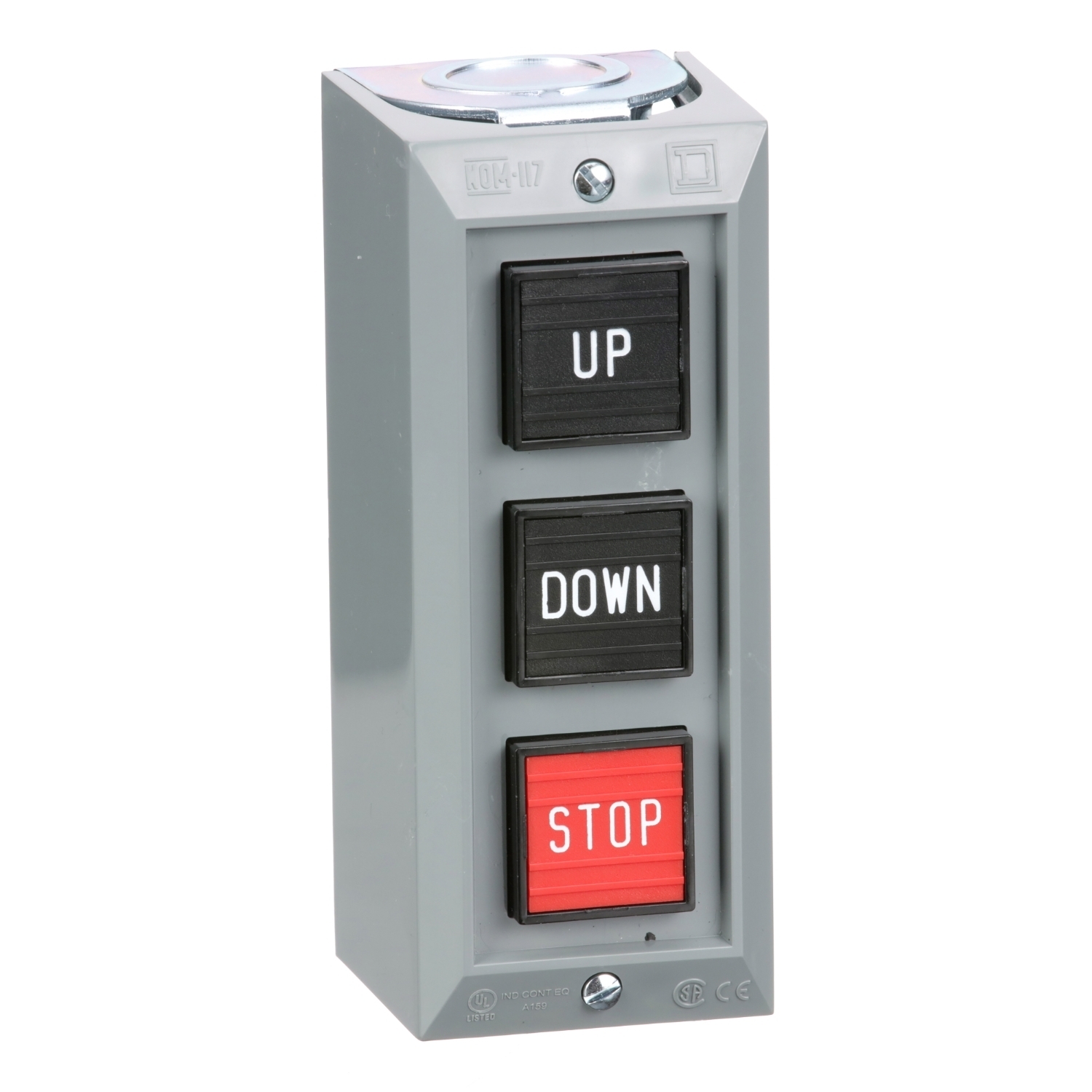

9001BG305 Harmony Type BG Control Station, 600 V AC, 5 A, 2NO-3NC Contact, 3 Operators, NEMA 1 NEMA Rating

MFR:
Schneider Electric
MFR #:
9001BG305
UPC:
785901390329
Item #:
105027

Availability

Location Available Qty
Available 2 ea
$184.62 each

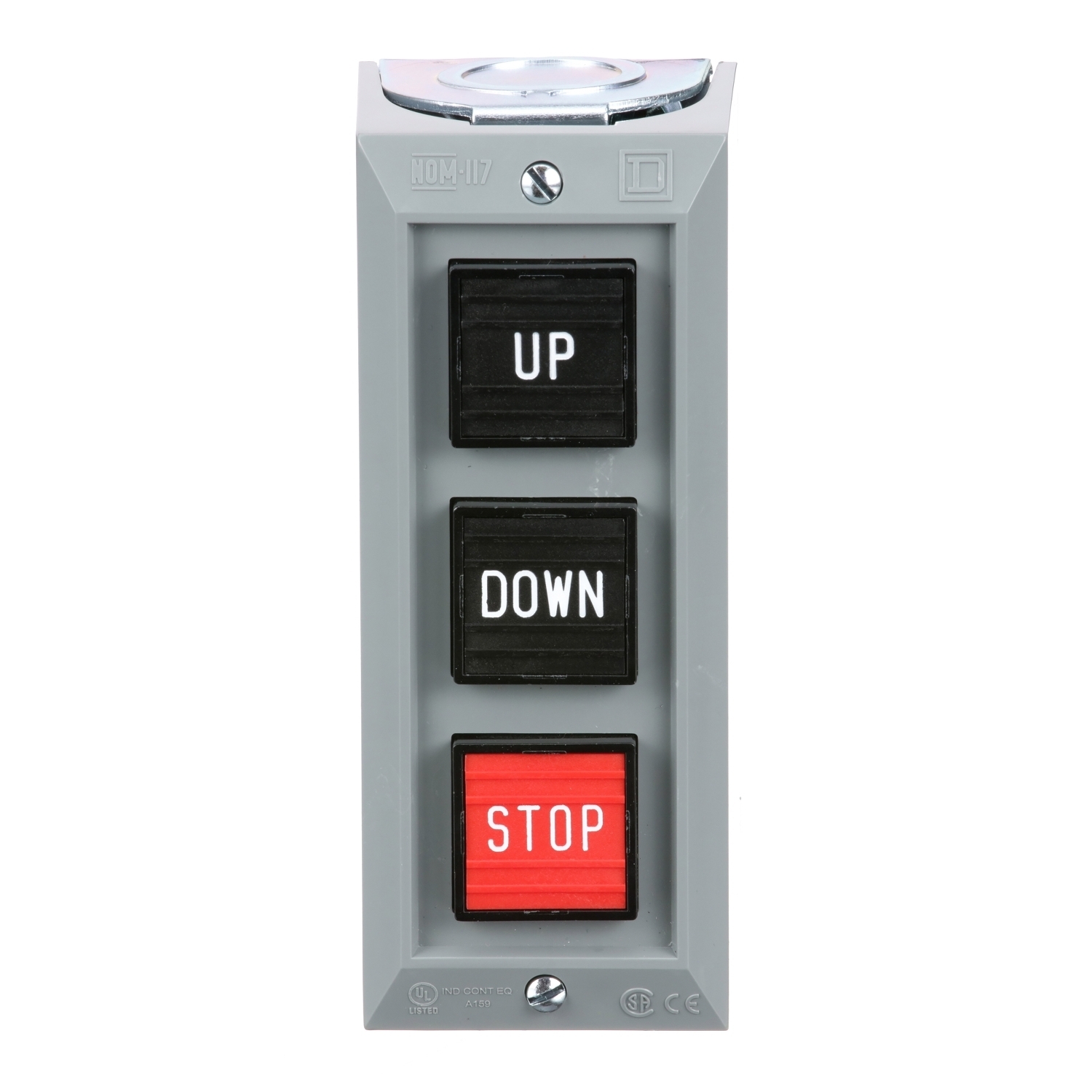

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has three square momentary push buttons. It has a UP push button with a normally open and a normally closed contact. It has a DOWN push button with a normally open and a normally closed contact. It also has a STOP push button with a normally closed contact. This NEMA 1 general purpose control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.

Manuals and Documentation
Catalog Number 9001BG305
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=460005&lang=en-us
UPC 785901390329
GTIN 00785901390329
