Discontinued
Panduit

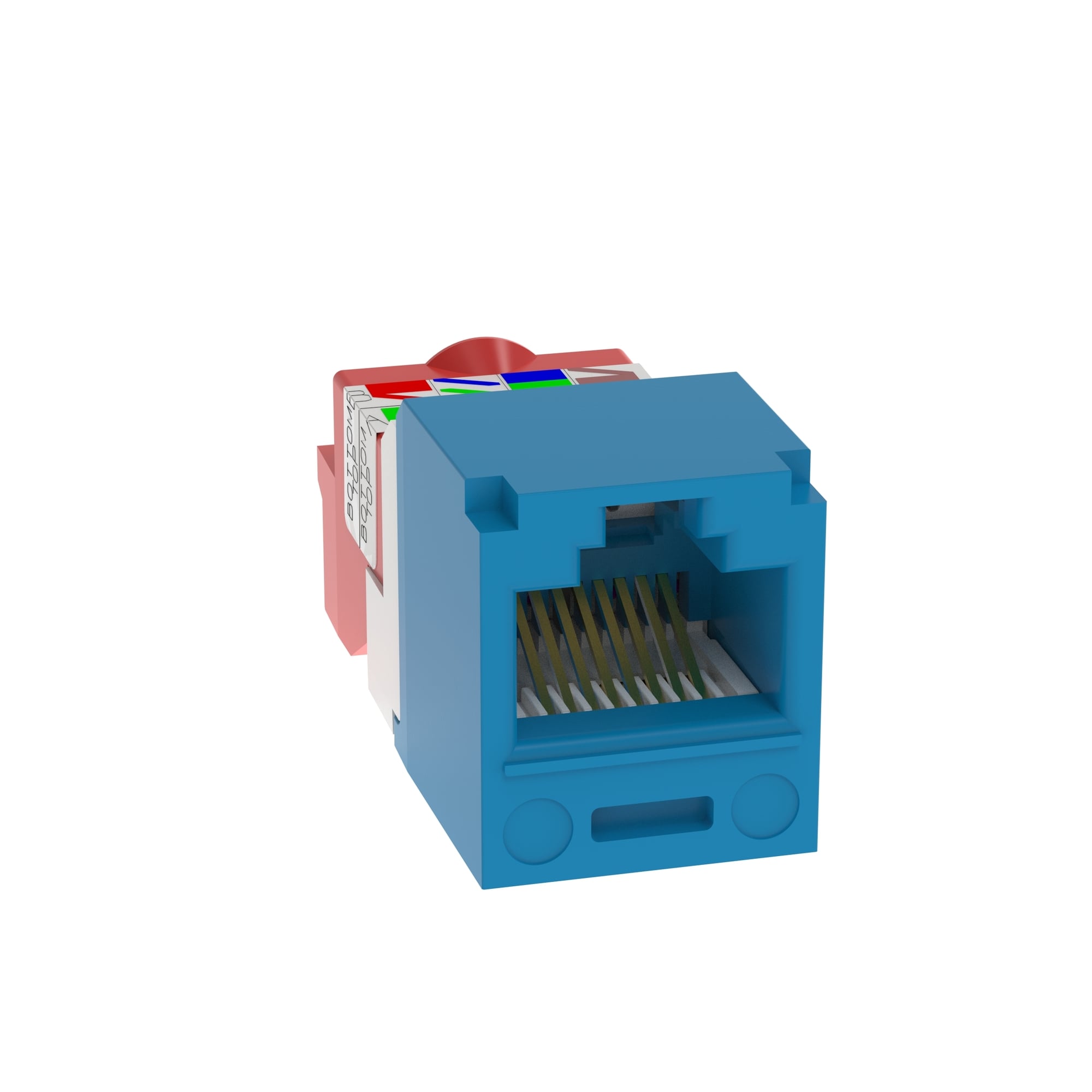

CJ5E88TBU PanNet Mini-Jack TX5e 1-Slot 8-Position 8-Wire Universal T-Style Unshielded Jack Module, Cat 5e/Mini-Com Module, Surface Mount, 1 Port, ABS, Blue

MFR:
Panduit
MFR #:
CJ5E88TBU
UPC:
074983771400
Item #:
104781

Availability

Location Available Qty
Available Available to Order
$17.00 each

The Mini-Com Cat 5e UTP RJ45 TP-Style Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is Blue.

Manuals and Documentation
Catalog Number CJ5E88TBU
Manufacturer Panduit
Brand Panduit
Country of Origin United States
Made in USA Yes
Application Unshielded
Cable Entry T568A/T568B
Color Blue
Material ABS
Standard Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS
UPC 074983771400
GTIN 00074983771400
Item Type Jack Module
Width 0.62
Width UOM Inch
Depth 1.43 IN
