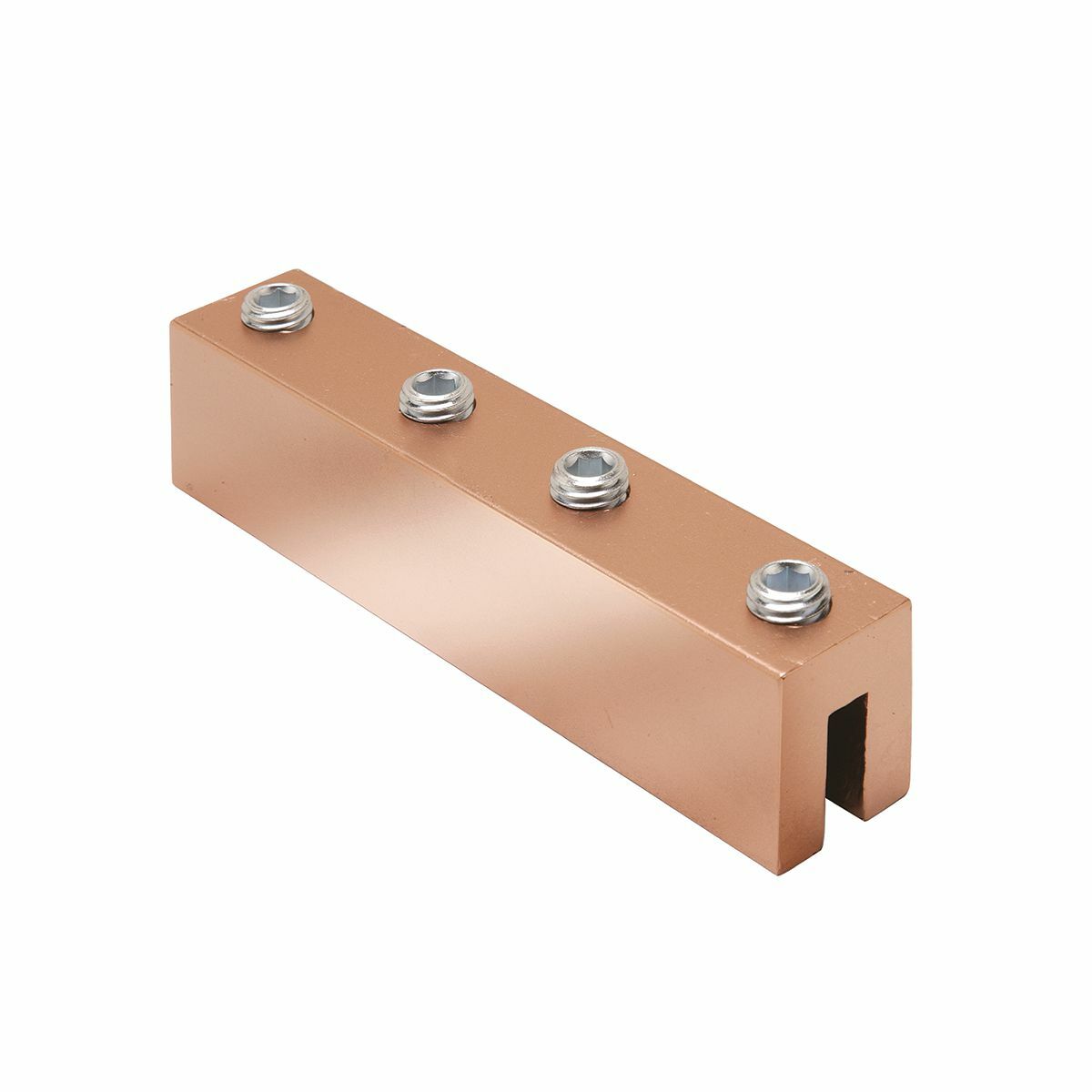

YGIBW285502N Type YGIB Groundlink Mechanical Compression Connector, 4/0 to 2 AWG Conductor, 1/2 to 13 in Rod, Copper, Unplated
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YGIBW285502N
- UPC:
- 781810035016
- Item #:
- 104639
YGIBW285502N Type YGIB Groundlink Mechanical Compression Connector, 4/0 to 2 AWG Conductor, 1/2 to 13 in Rod, Copper, Unplated
- MFR #:
- YGIBW285502N
- UPC:
- 781810035016
- Item #:
- 104639
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$454.73
each
Manuals and Documentation
| Catalog Number | YGIBW285502N |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Direct Burial Cables |
| Material | Copper |
| Special Features | Features: An Irreversible Compression Ground Connection Which Allows Attachment To A Structural Steel Standard (Angled) Or Wide Flange (Parallel) Beam, Installed With A Required 5-Piece Die Set, Catalog PIBEAMKIT Or UIBEAMKIT, Die Index 1105, GROUNDLINK Connectors Are Made Of High-Conductivity Wrought Copper And Come Pre-Filled With PENETROX E Compound And Strip Sealed, Order Terminal Mounting Hardware Separately, Mounting Hardware Order Separately: TMHG-42, I Beam Thickness Range: 0.438 - 0.5 IN, Suggested Compression Terminal: YGHA2C-2N, Length: 3 IN, Terminal Pad Thickness: 0.26 - 0.3 IN, Die Index: 1105 Element A, I Beam Style: Wide Flange Beam (Flange Parallel) |
| Standard | UL467;IEEE 837 |
| UPC | 781810035016 |
| GTIN | 00781810035016 |
| Item Type | Taps |
