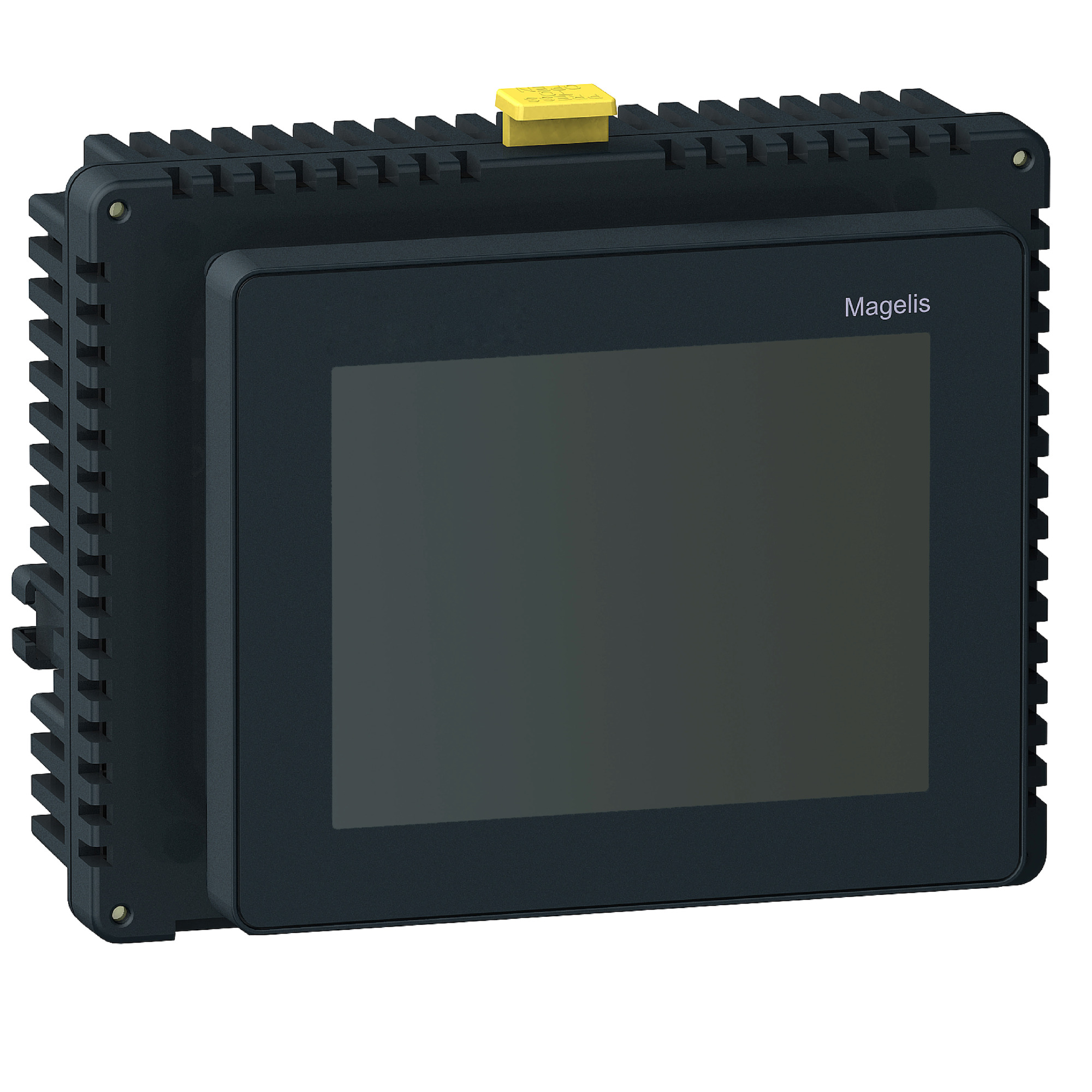

HMISTU855S Magelis STU Touch Panel Screen With Software, 24 V DC, 6.8 W, 5.7 in QVGA TFT Color Touchscreen Display, COM1, USB 2.0

MFR:
Schneider Electric
MFR #:
HMISTU855S
UPC:
785901395263
Item #:
104409

Availability

Location Available Qty
Available Available to Order
$1,688.88 each

The touch panel screen features 5.7inch TFT color display, supports 320 x 240 pixels QVGA resolution. It is equipped with 1 USB 2.0 type mini B, 1 USB 2.0 type A, removable screw terminal block for power supply and COM1 serial link (female RJ45, RS232C/RS485 integrated). The screen supports Japanese (ANK, Kanji), Chinese (simplified Chinese), Taiwanese (traditional Chinese), Korean and ASCII character fonts. This touch panel screen has 65536 colors with 50,000 hours of backlight lifespan. It is an IP20/IP65 and NEMA 4X rated product. The enclosure is made of PC/PBT and PPA. Its dimensions are 163mm (width) x 56.5mm (depth) x 129.15mm (height). It is suitable for simple machines and infrastructure applications. This product is certified by Marine, CULus, UL class 1 Div2 T4A or T5 and C-Tick. It meets EN 61131-2, UL 508, FCC Class A, UL 1604 and IEC 61000-6-2 standards. Harmony STO (fromerly known as Magelis STO) is powered by the EcoStruxure operator terminal expert and STU (fromerly known as Magelis STU) is powered by Vijeo Designer.

Manuals and Documentation
Catalog Number HMISTU855S
Manufacturer Schneider Electric
Brand Schneider Electric
Warranty Description Contractual Warranty:18 months
Country of Origin United States
