Littelfuse®

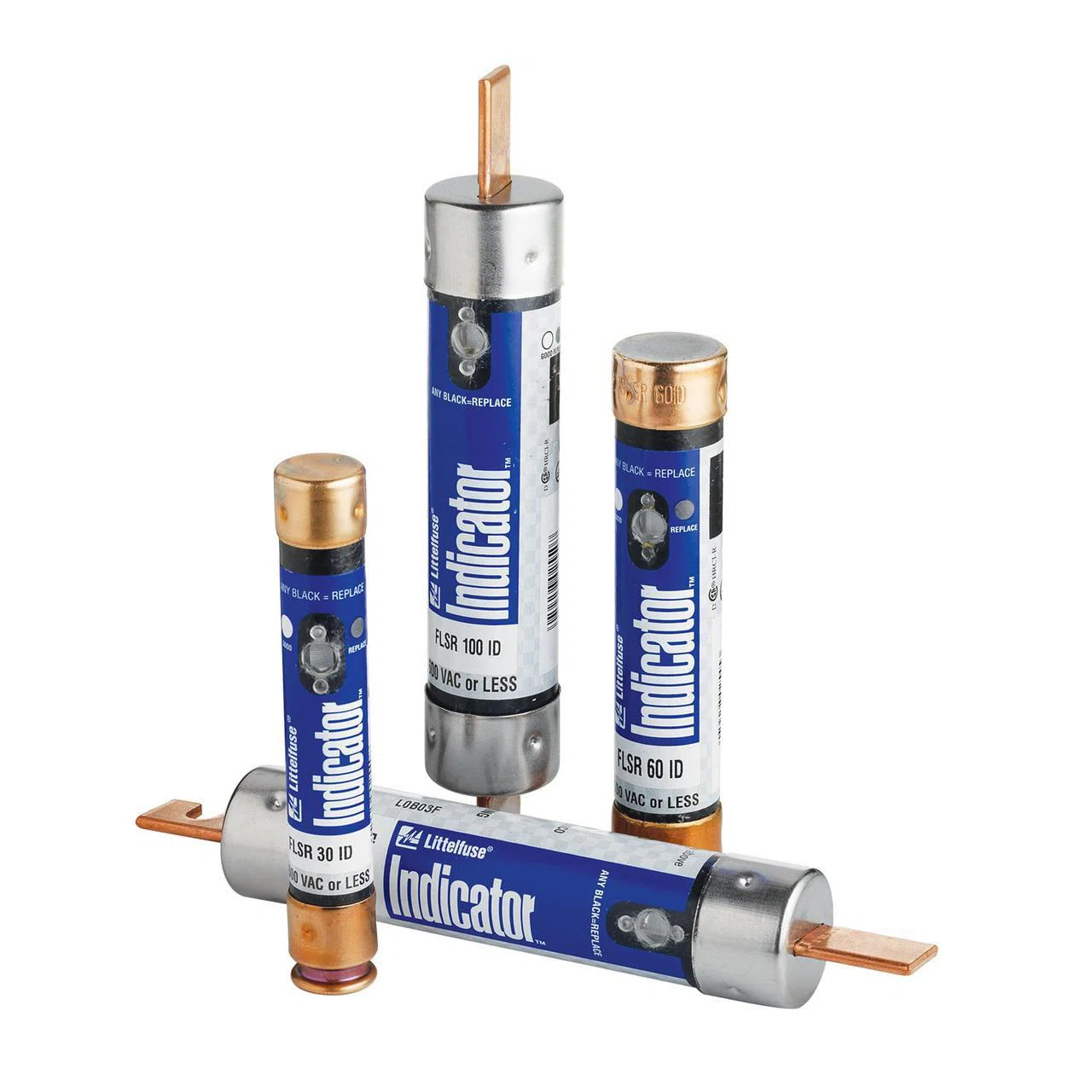

FLSR2.25 Current Limiting Time Delay Fuse

MFR:
Littelfuse
MFR #:
FLSR2.25
UPC:
079458170429
Item #:
104356

Availability

Location Available Qty
Available Available to Order
$118.20 each

Littelfuse® FLSR series fuses have been the superior UL Class RK5 dual element time delay fuses and are the most widely used Class of fuses. FLSR series fuses provide excellent protection for all types of circuits especially those containing motors. However, users and specifiers should consider the significant benefits offered by indicator fuses.

Manuals and Documentation

Features

  • Reliable interruption of all over currents up to 200 kA
  • Faster acting short circuit protection than any non-current limiting mechanical protective device
  • Accurate and reliable - automated, precision manufactured and assembled parts ensure accurate, consistent response to overloads and short circuits
  • 300 kA rms symmetrical self certified
  • Bronze caps
  • Industrial cylindrical cartridge fuses
Manufacturer Part Number FLSR2.25
Brand Littelfuse®
Manufacturer Littelfuse
UPC 079458170429
Country Of Origin MX
Amperage Rating 2.25 A
Material Composite
Mounting Type Holder
Series FLSR
Type Current Limiting
Voltage Rating 600 V AC/300 V DC
Alternative Part Number FLSR2.25T | 8579517
Manufacturer Item Status Active
Country USA/Canada
Standards Approvals UL 248-12 | E81895 | CSA LR29862 | Federal Specification WF-1814 | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
Application Service Entrance Switches, Transformers, Switchboard Mains and Feeders, Motor Control Central Mains, Motor Branch Circuits and All General Purpose Circuits Applications
Body Size 13/16 in Dia x 5 in L
Body Type Cylindrical
Class RK5
Element Dual
Frequency Rating 50/60 Hz
Indicating Non Indicating Non-Indicating
Interrupt Rating 200/20 kA
Rejection Non Rejection Rejection
Response Time 10 s
Terminal Type Ferrule
