Hubbell Wiring Device - Kellems

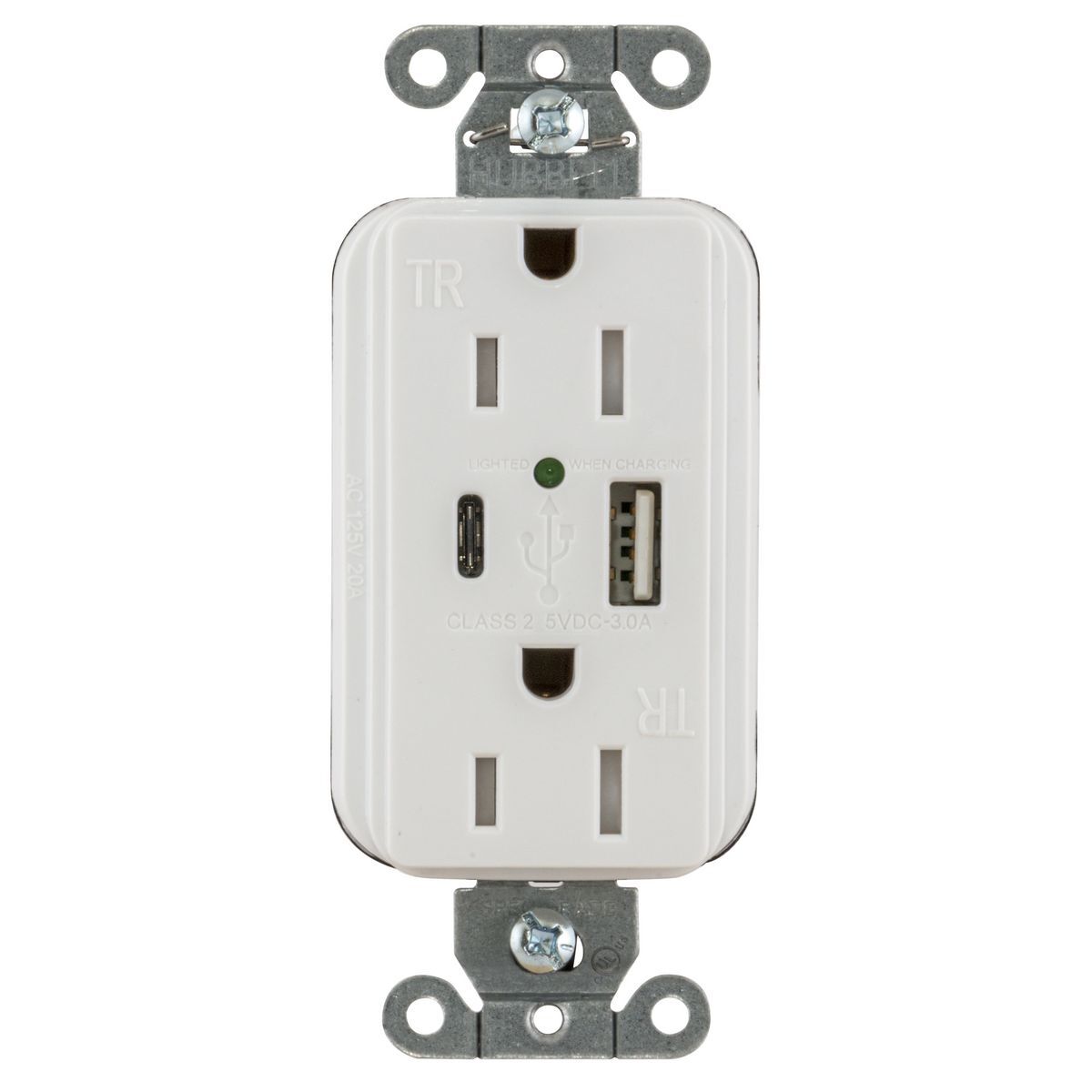

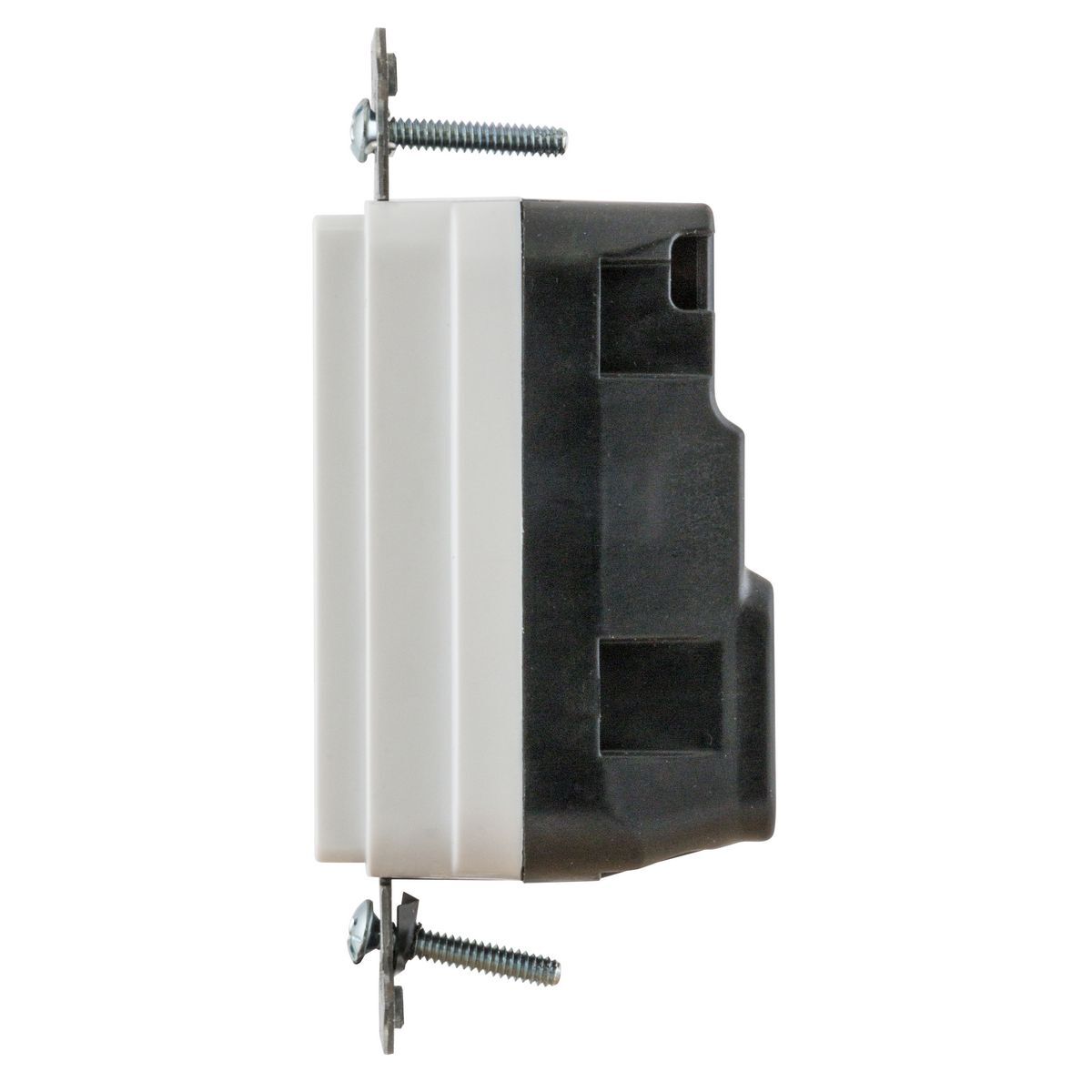

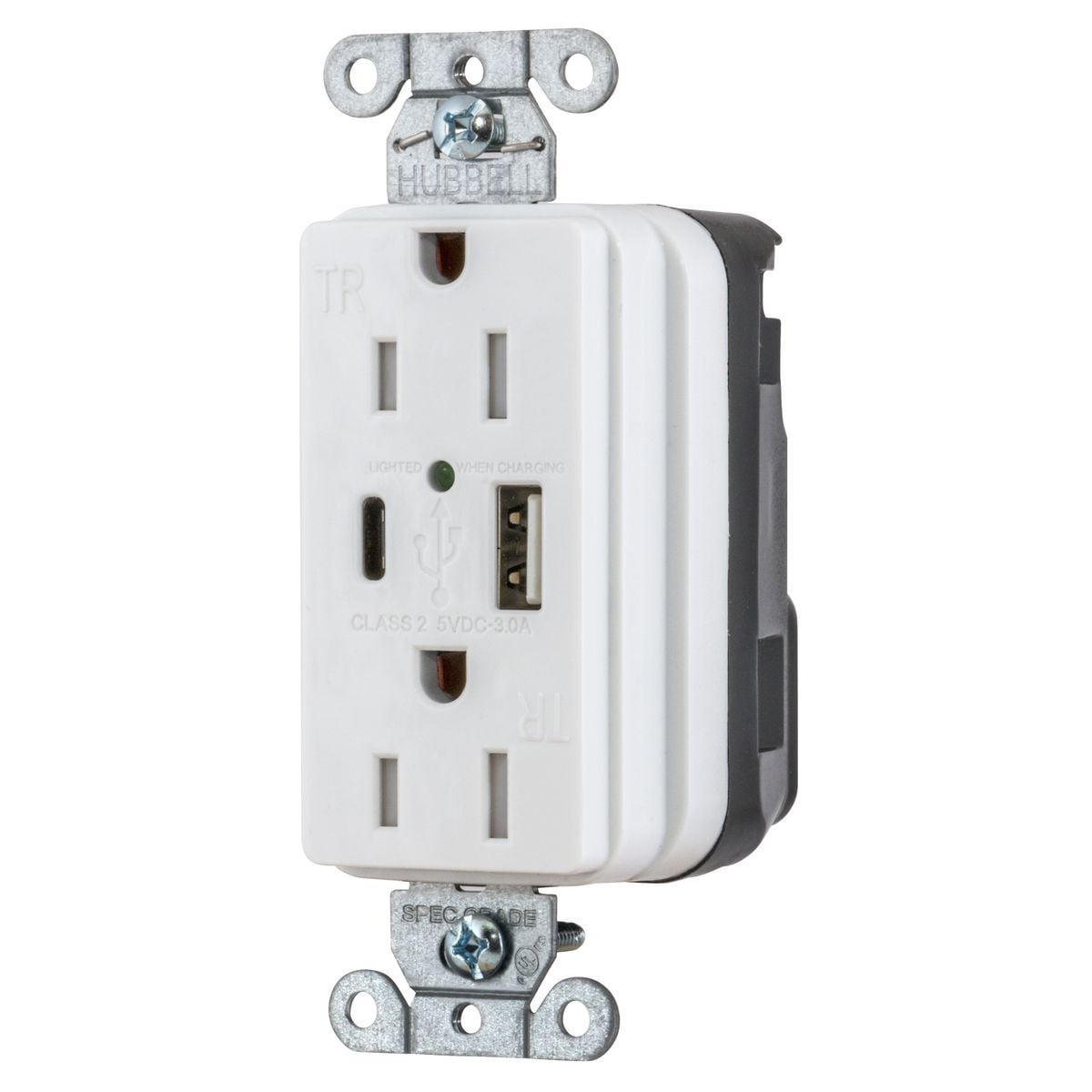

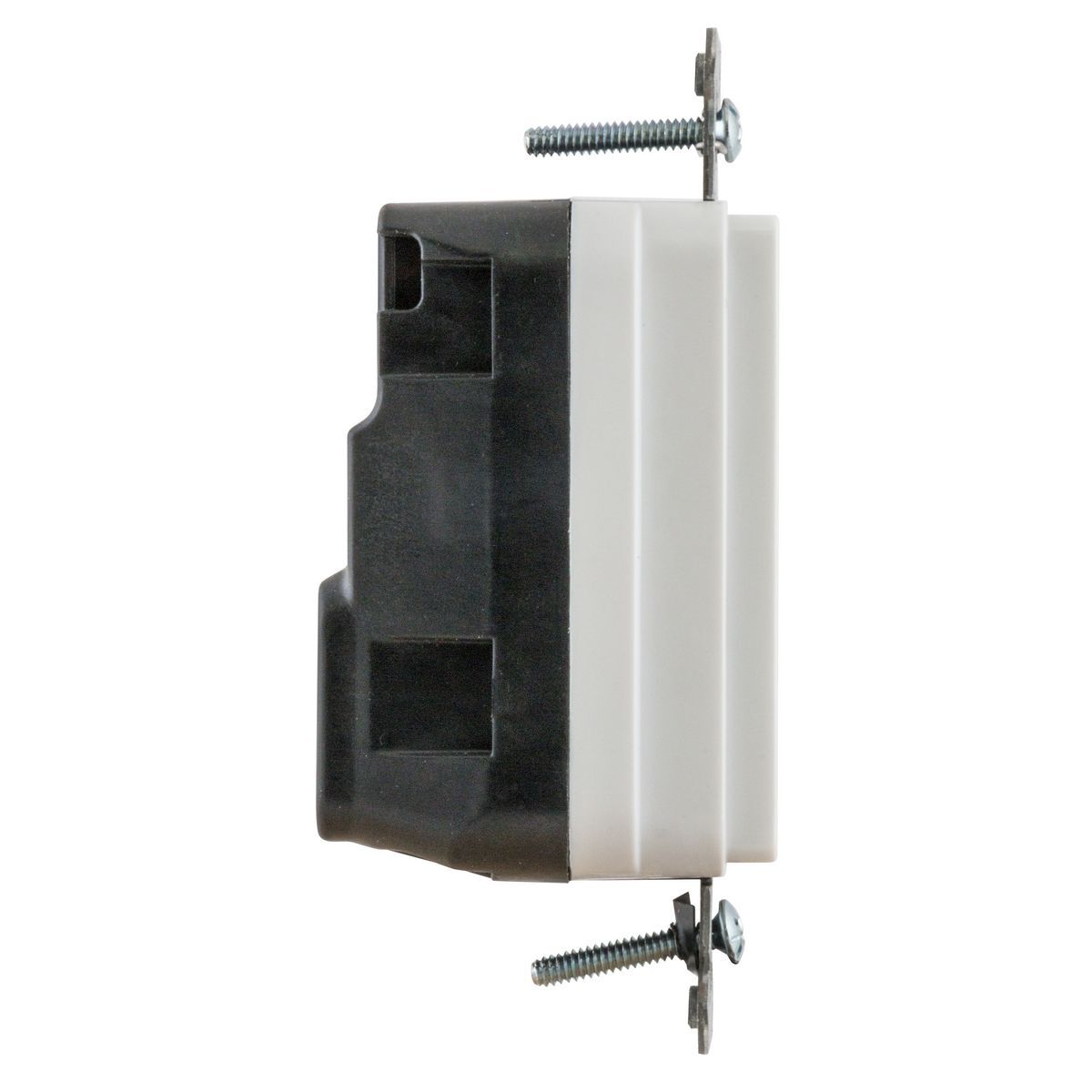

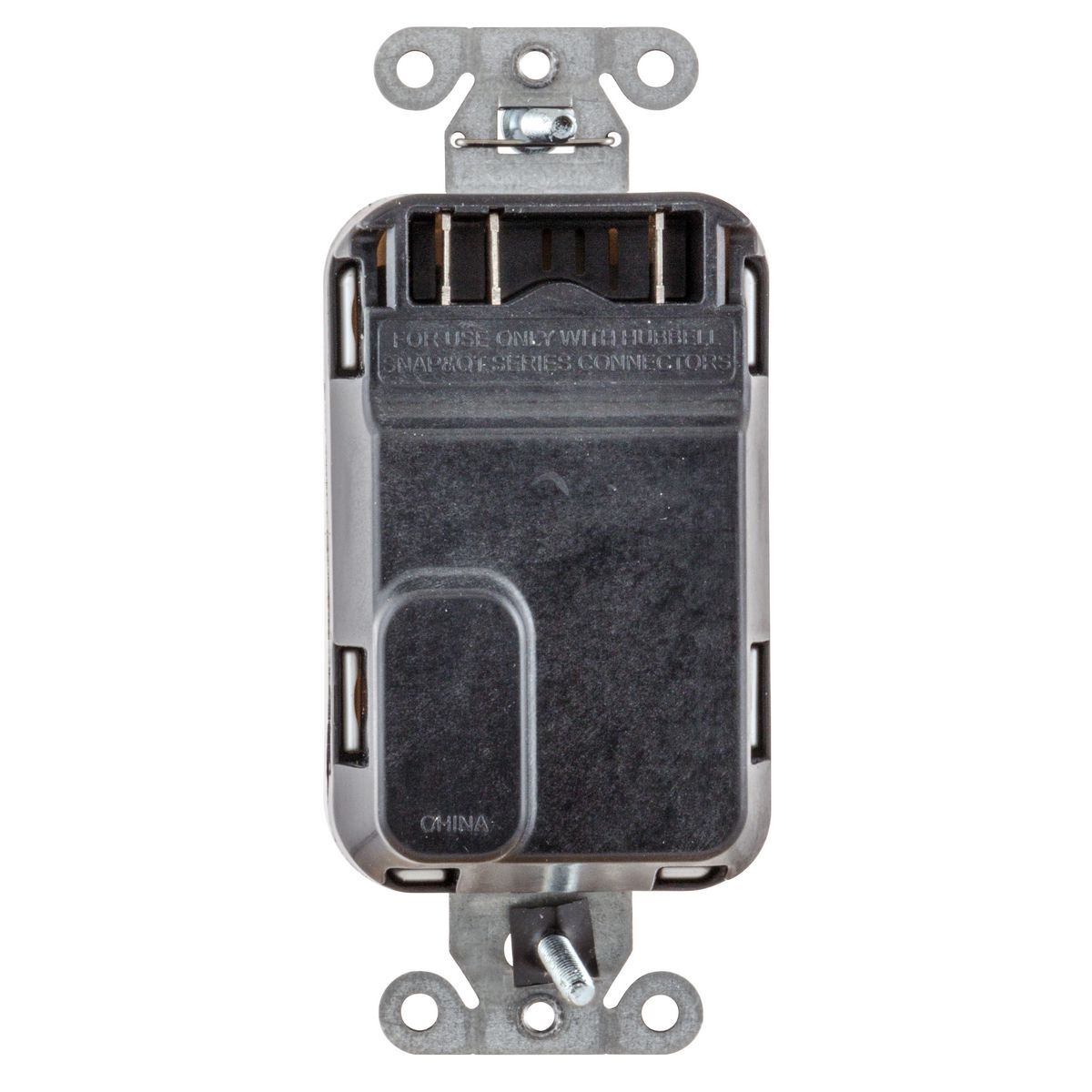

SNAP15UACW Decorator Duplex Grounding Temper-Resistant USB Charger Receptacle, 15 A, 125 V DC, 1875 W, 2 Poles, 3 Wires, White

MFR:
Hubbell Wiring Device-Kellems
MFR #:
SNAP15UACW
UPC:
883778308468
Item #:
1040937

Availability

Location Available Qty
Available Available to Order

SNAPConnect Devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnects modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. Once installed, SNAPConnects modular design enables simple device change-out by maintenance personnel.

Manuals and Documentation
Catalog Number SNAP15UACW
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin China
Made in USA No
Amperage Rating 15
Application Power and USB Charging
Color White
Material Thermoplastic
Mounting Screw
NEMA Rating 5
Number of Poles 2
Number of Wires 3
Special Features (2) 15A 125 Duplex Ports, (1) Type A, (1) Type C USB, LED Indicator
Standard cULus
UPC 883778308468
GTIN 00883778308468
Item Type One USB Type-A and one Type-C port
Size Standard Sized Product
Environmental Conditions Indoor Dry unless protected by additional means
Temperature Rating Maximum continuous 75 Degrees C, minimum -40 Degrees C (w/o impact)
Voltage Rating 125
Wattage 1875 W
Wire Size #14-#10 AWG
