Elastimold

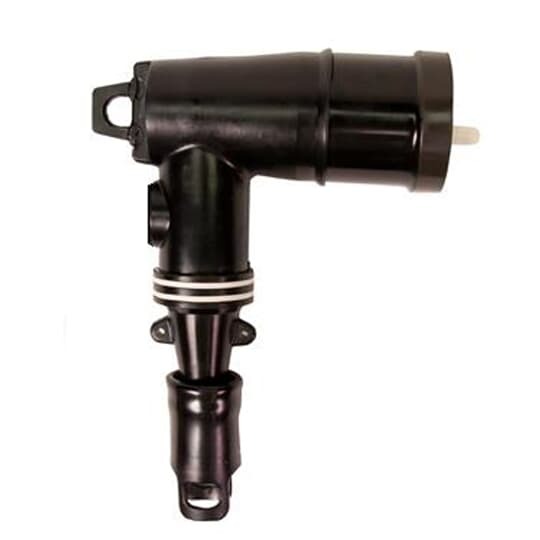

161LRJS-B-5230 Elastimold Insulated Loadbreak Elbow Connector With Sealing Jacket, 15 kV, 200 A, 1 to 1/0 AWG Conductor, 0.635 to 0.905 in Dia Insulation, EPDM Rubber

MFR:
ABB - Installation Products
MFR #:
161LRJS-B-5230
UPC:
075114213226
Item #:
1040877

Availability

Location Available Qty
Available Available to Order
$153.08 each
Manuals and Documentation
Catalog Number 161LRJS-B-5230
Manufacturer ABB - Installation Products
Brand Elastimold
Country of Origin United States
Made in USA Yes
Amperage Rating 200
Application The 161LRJS is designed for Connecting to and Operating 15kV Class, 200 Amp Distribution apparatus. It Provides a Convenient Method to Connect/Disconnect Cable and Equipment on Power Distribution Systems
Color Black
Conductor Range #1 STR/COMPR AWG , 1/0 SOL/COMPT AWG
Insulation Yes, EPDM Rubber
Material Housing - EPDM Rubber
Special Features Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Provision for Hot Stick Operation. Provision for Ground Wire Connection. Built in Cable Jacket Seal
Standard ANSI/IEEE Standard 386
UPC 075114213226
GTIN 00075114213226
Item Type Loadbreak Elbow Connector and Jacket Seal
Environmental Conditions Products are designed and constructed for all applications including Padmount, Subsurface, Vault, Indoor, Outdoor, Direct Sunlight, Direct Buried and Continuously Submerged in Water
Temperature Rating -40 to +65 C
Voltage Rating 15 kV
