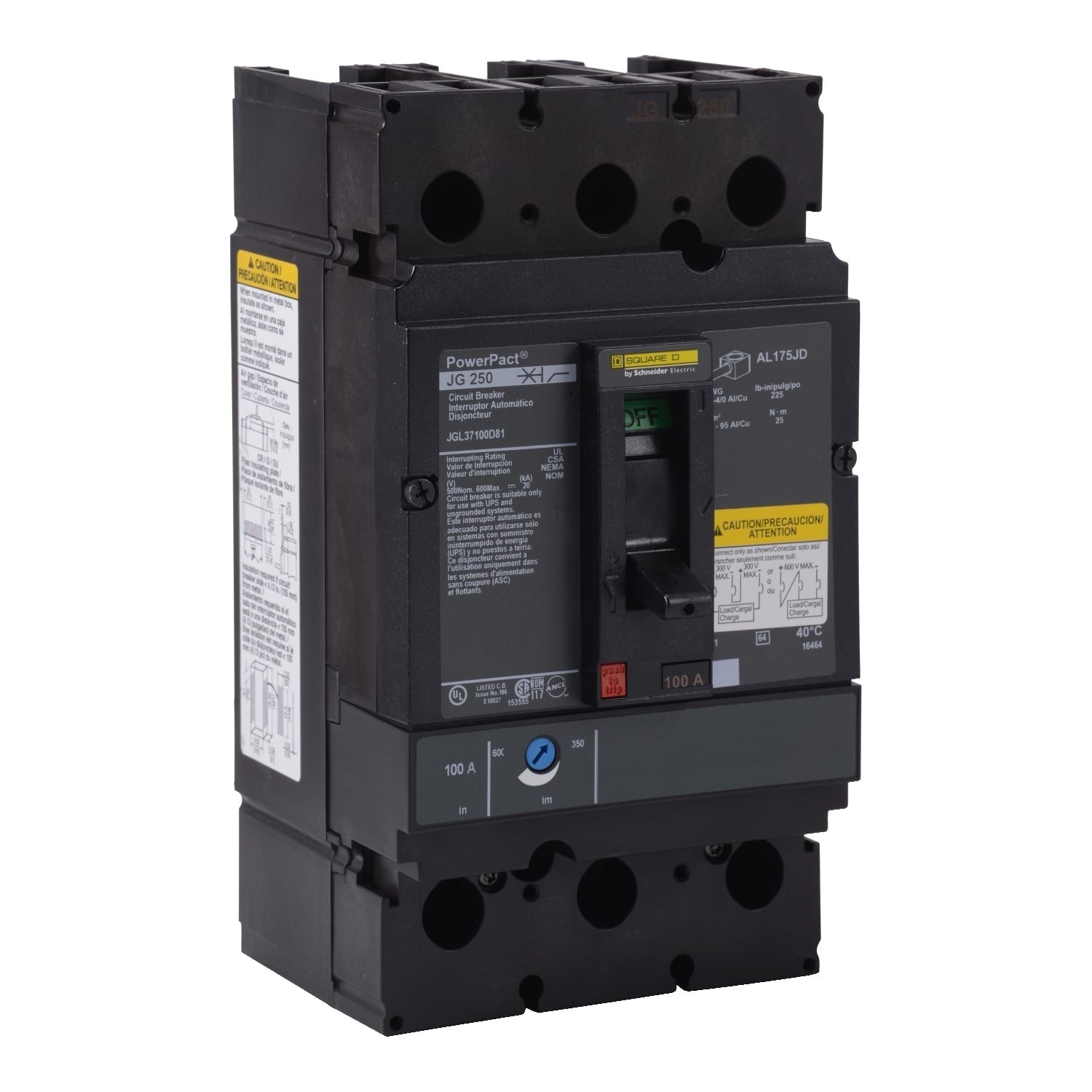

JGL37100D81 PowerPact 80% Rated Molded Case Circuit Breaker, 500 VDC, 100 A, 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC/20 kA at 250/500 VDC Interrupt, 3 Poles, Thermal Magnetic Trip
- MFR:
- Schneider Electric
- MFR #:
- JGL37100D81
- UPC:
- 785901583332
- Item #:
- 1040587
JGL37100D81 PowerPact 80% Rated Molded Case Circuit Breaker, 500 VDC, 100 A, 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC/20 kA at 250/500 VDC Interrupt, 3 Poles, Thermal Magnetic Trip
- MFR #:
- JGL37100D81
- UPC:
- 785901583332
- Item #:
- 1040587
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 20kA at 500VDC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 100A, 3 pole, circuit breaker has a breaking capacity of 20kA at 500VDC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Manuals and Documentation
| Catalog Number | JGL37100D81 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Actuator | Toggle |
| Application | Distribution;HACR rated |
| Connection | Lugs, line;lugs, load; AWG 3/0...350 kcmil aluminium/copper terminals |
| Frequency Rating | 50/60 Hz |
| Number of Poles | 3 |
| Special Features | Modbus;Ethernet;Overload protection;short-circuit protection |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=10111883&lang=en-us |
| UPC | 785901583332 |
| GTIN | 00785901583332 |
| Item Type | Circuit breaker |
| Trip Type | Thermal-magnetic |
