Appleton

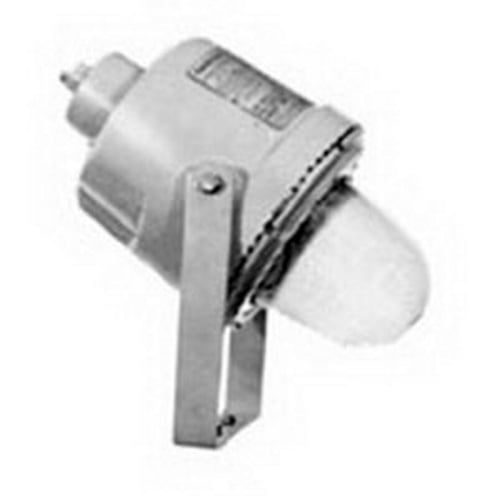

Explosionproof Integrally Ballasted Floodlight Fixture, (1) High Pressure Sodium Lamp, 400 W Fixture, 120/208/240/277 VAC, Baked Epoxy-Clad Powder Coated Housing

MFR:
Appleton Electric
MFR #:
CFL400-MT
UPC:
781381475716
Item #:
1038374

Availability

Location Available Qty
Available Available to Order
$6,940.15 each

Code Master 2 Factory Sealed HID Floodlight Without Guard, Fixture Type: Trunnion, Lamp Type: 400 WTT S51 50000 LM Mogul High Pressure Sodium, Lamp Wattage: 400 WTT, Voltage Rating: 120/208/240/277 V, Number Of Lamps: 1, Material: Coppe

Manuals and Documentation
Catalog Number CFL400-MT
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Pipeline Transportation Facilities, At Drilling Rigs And In Production Facilities On Land And Marine Platforms, Pipeline Transportation Facilities, At Drilling Rigs And In Production Facilities On Land And Marine Platforms, Flowing Or Beam Wells In Open Areas With Cellar Or Below Grade Sump, On Refinery Docks Where Tankers Are Loaded With Hoses Or Loading Arms, Compressor Buildings (Open Or Enclosed) Where Methane Gas Is Present, Virtually All Enclosed Areas At Drilling Operations Or Refineries Where Ventilation Is Inadequate, Or Where A Cellar Or Below Grade Sump Exists
Lamp Type 400 WTT S51 50000 LM Mogul High Pressure Sodium
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum Ballast Housing, Guard And Junction Box, Porcelain Socket, Nickel-Plated Phosphor Bronze Screw Shell, Steel Trunnion Mount
Special Features Arrangement of heat-producing components results in more efficient heat dissipation for cooler fixture operation; All threaded joints are flame-tight; Five threads are always fully engaged in an explosionproof manner; Strategic location of lamp socket in combination with the interior prism design of the glass globe, provides optimum light distribution and control; Heat and impact-resistant globes have smooth dust-resistant exterior; Explosionproof; Integrally ballasted; Aluminum high bay reflector; Fiberglass reinforced polyester standard dome, deep dome and 30 DEG angle reflectors; Furnished with trunnion 3/4 IN hub (3/4-14 NPT)
Standard NEC: Class 1, Division 1 And 2, Groups C, D; CEC: Class I, Division 1 And 2, Groups B, C, D, Class II, Division 1 And 2, Groups E, F, G*, Class II, Division 2, Groups F, G, Class III, CSA 4X; UL 1598, 844, E10794; CSA C22.2 No.250, C22.2 No.137, 025428
UPC 781381475716
GTIN 00781381475716
Item Type Factory Sealed HID Floodlight Without Guard
Voltage Rating 120/208/240/277
