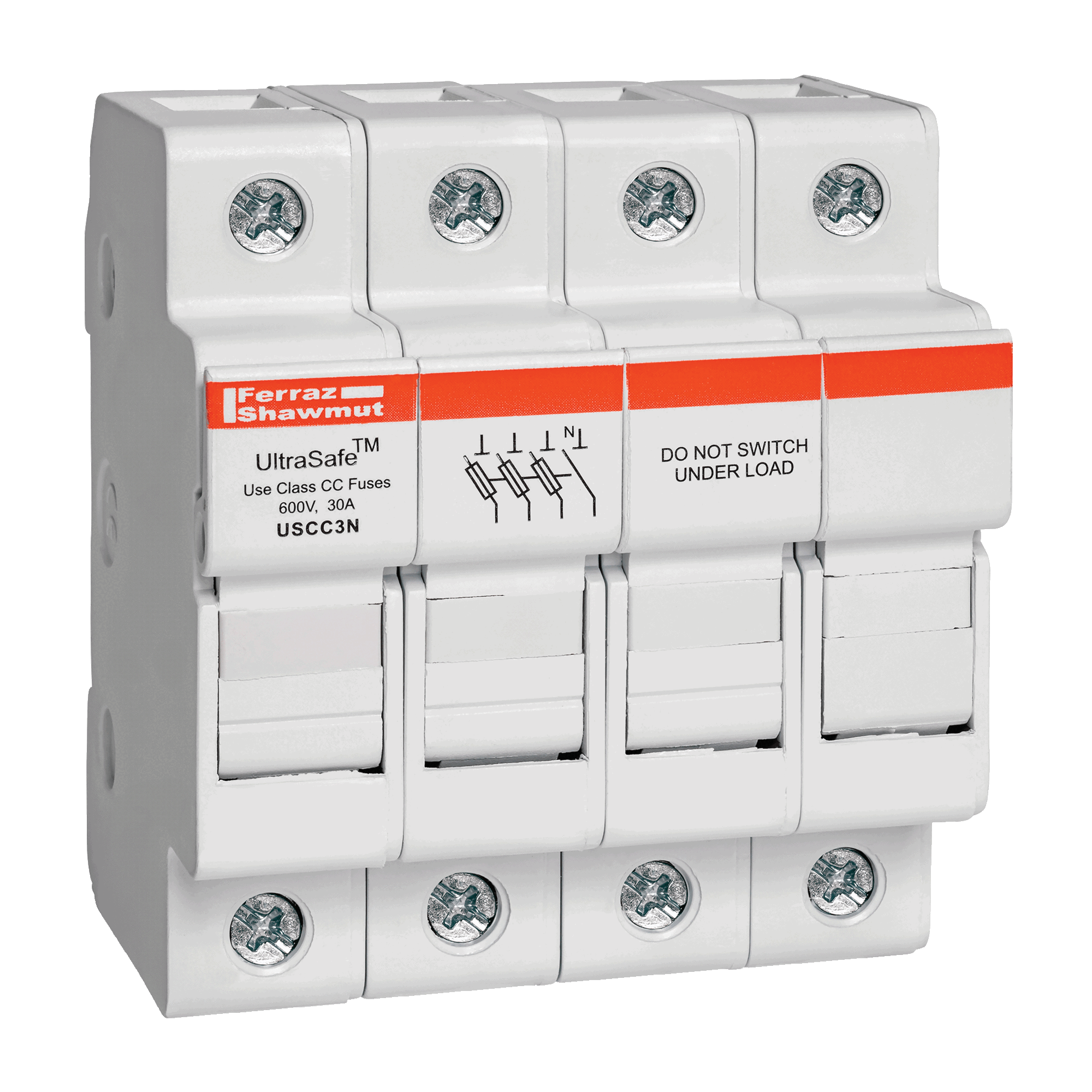

Fuse Holder 600VAC 600VDC Class CC 30A 3-Pole+N Pressure Plate IP65
- MFR:
- Mersen
- MFR #:
- USCC3N
- UPC:
- 782001829933
- Item #:
- 1037521
Fuse Holder 600VAC 600VDC Class CC 30A 3-Pole+N Pressure Plate IP65
- MFR #:
- USCC3N
- UPC:
- 782001829933
- Item #:
- 1037521
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$510.60
each
Fuse Holder UltraSafe 600VAC 600VDC Class CC 30A 3-Pole+N Pressure Plate IP65
Manuals and Documentation
| Catalog Number | USCC3N |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | China |
| Made in USA | No |
| Amperage Rating | 30 |
| Application | All circuits up to 600 volts for motors, control circuits, transformers, etc… DC circuits up to 1000VDC including photovoltaic applications Non-load disconnect |
| Connection | Pressure Plate |
| Material | Glass Filled Polycarbonate |
| Mounting | Din Rail |
| Number of Poles | 4 |
| Phase | 3 |
| Special Features | IP20 Finger-Safe (touch safe) Optional visual blown fuse Indicator lights DIN-rail mounting Compact footprint Quick, tool-free, easy fuse change outs USM use with: ATQ, ATM, A6Y-2B, A25Z-2, TRM, OTM, A13X-2, A60Q-2, DCT, HP6M, HP10M USCC use with: ATDR, ATMR, ATQR ATM, DCT, ATMR recommended for DC applications |
| Standard | UL Listed to Standard 4248- 4 (class CC) and UL Recognized to Standard 4248-1 (midget), File E52283 UL Listed to standard 4248-18 (photovoltaic), File E347822 CSA Certified C22.2 IEC 60269-2-1 and 60947-3 Compliant (USM only) |
| UPC | 782001829933 |
| GTIN | 00782001829933 |
| Item Type | UL/CSA Fuse Holders |
| Size | 3.07 x 2.07 x 2.32 |
| Voltage Rating | 600 |
