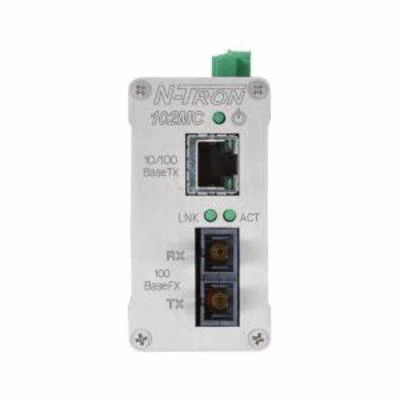

Features

• The 102MC media converters provides one RJ45 copper EtherNet port and one fiber optic cabling port, the RJ45 port is available in 10/100 baseTX
• The fiber optic port is available with 10 baseFL or 100 baseFX speeds supporting industry standard SC or ST fiber connectors
• The N-Tron series 102MC industrial media converters feature an operating temperature up to -40 to 80 deg C for use in extreme environments
• Housed in a metal enclosure with DIN rail mounts and ESD protected circuitry, our media converters will remain running trouble-free for years
• 102MC media converters use built-in switching technology to distinguish port speeds, this means that 10 Mbps devices can be connected to 100 Mbps networks without issue
• Our media converters will auto-sense network environments and provide the best performance possible, the 102MC-FL supports straight-through or cross-over cable communication
• IP30 enclosure rating
• Multimode type fiber
• DIN rail mounting
• (1) 10/100 port
• (1) 100 fiber port
• Metal case media convertor
• 140 mA at 24 VAC input current, 11.5 at 24 VDC BTU/hr, 8.5 A/0.7 ms at 24 VAC inrush rating
• 10/100 baseTX, one (1) RJ-45 TX port, one (1) ST or SC duplex port connector
• Unmanaged plug and play operation
• Compact size, small footprint
• RJ-45 port supports full/half duplex operation
• LED link/activity status indication
• Store and forward technology
• RJ-45 port auto senses speed and flow contro
