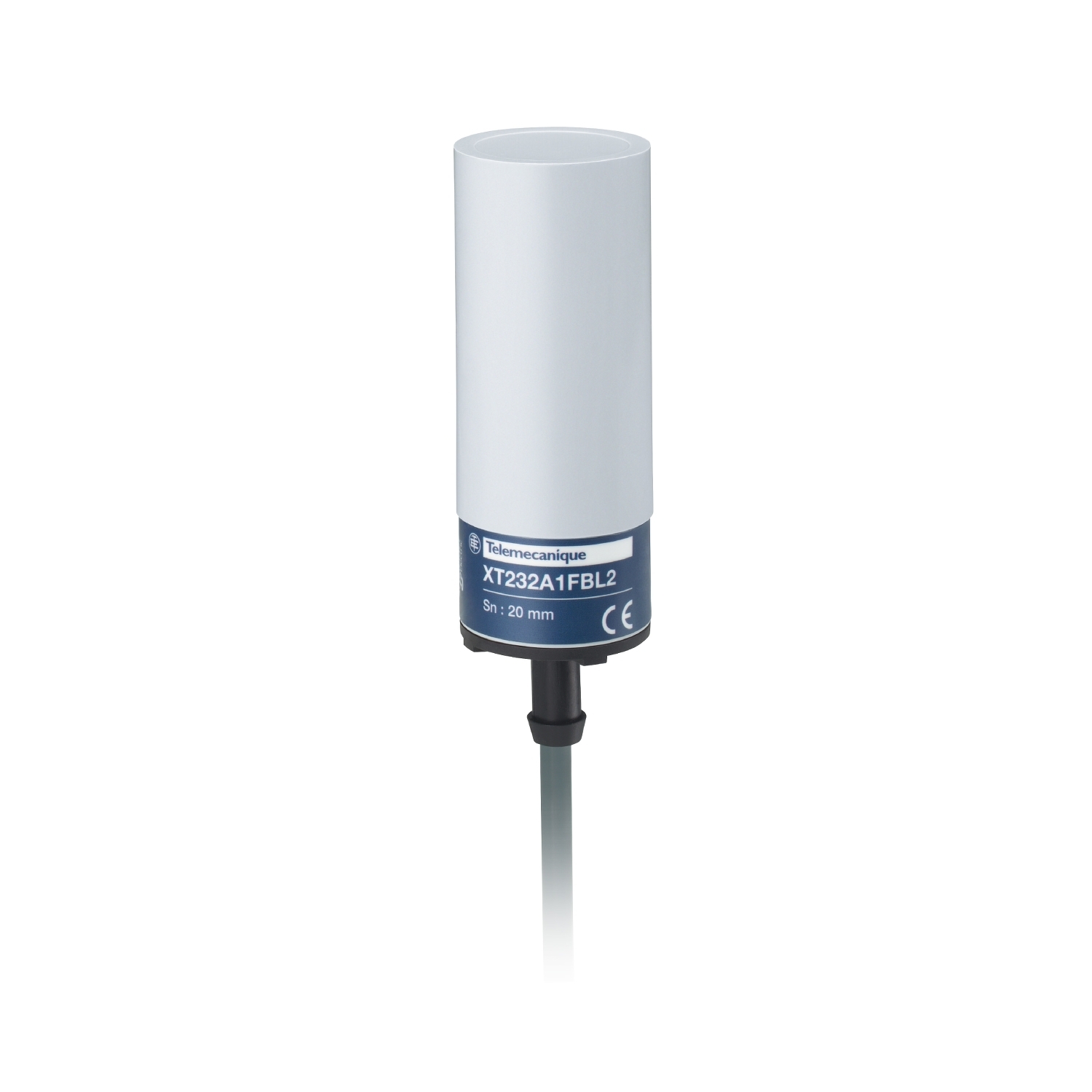

XT232A1FBL2 OsiSense XT 2-Wire Fixed Cylindrical Non-Shielded Capacitive Proximity Sensor, Capacitive, Discrete Output, 1NC Contact, 24 to 240 V AC
- MFR:
- Telemecanique Sensors
- MFR #:
- XT232A1FBL2
- UPC:
- 785901414957
- Item #:
- 1035262
XT232A1FBL2 OsiSense XT 2-Wire Fixed Cylindrical Non-Shielded Capacitive Proximity Sensor, Capacitive, Discrete Output, 1NC Contact, 24 to 240 V AC
- MFR #:
- XT232A1FBL2
- UPC:
- 785901414957
- Item #:
- 1035262
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$280.10
each
The XT offer is a range of capacitive proximity sensors, dedicated to the detection of insulated or conductive materials. These sensors are suitable for the detection of any object irrespective of material or conductivity. For example, metals, minerals, wood, plastic, glass, cardboard, fluids, etc. This product is a cylindrical, non flush mountable sensor, with a sensing distance of 20mm. it features a plastic plain case, diameter 32mm and a 2m long pre-cabled connection. The mounting accessory is included with the sensor. 2-wire, 24V to 240V AC, with NC function. Output state indication by a yellow LED.
Manuals and Documentation
| Catalog Number | XT232A1FBL2 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | Detection of insulated or conductive materials |
| Connector | Cable |
| Enclosure | Plastic |
| Indicator | Output state indication 1 LED yellow) |
| Material | Plastic |
| Mounting | Flush |
| Sensing Range | 0.59...1.57 IN (15...40 MM) |
| Sensitivity | Sensitivity by potentiometer |
| Standard | IP67 double insulation conforming to IEC 60529;CE |
| Supply Voltage | 24...240 V AC 50...60 Hz |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=7051385&lang=en-us |
| UPC | 785901414957 |
| GTIN | 03389119025966 |
| Item Type | Capacitive proximity sensor;Cylindrical Ø 32 mm plain |
| Operating Temperature | -10-60 A Degrees C |
