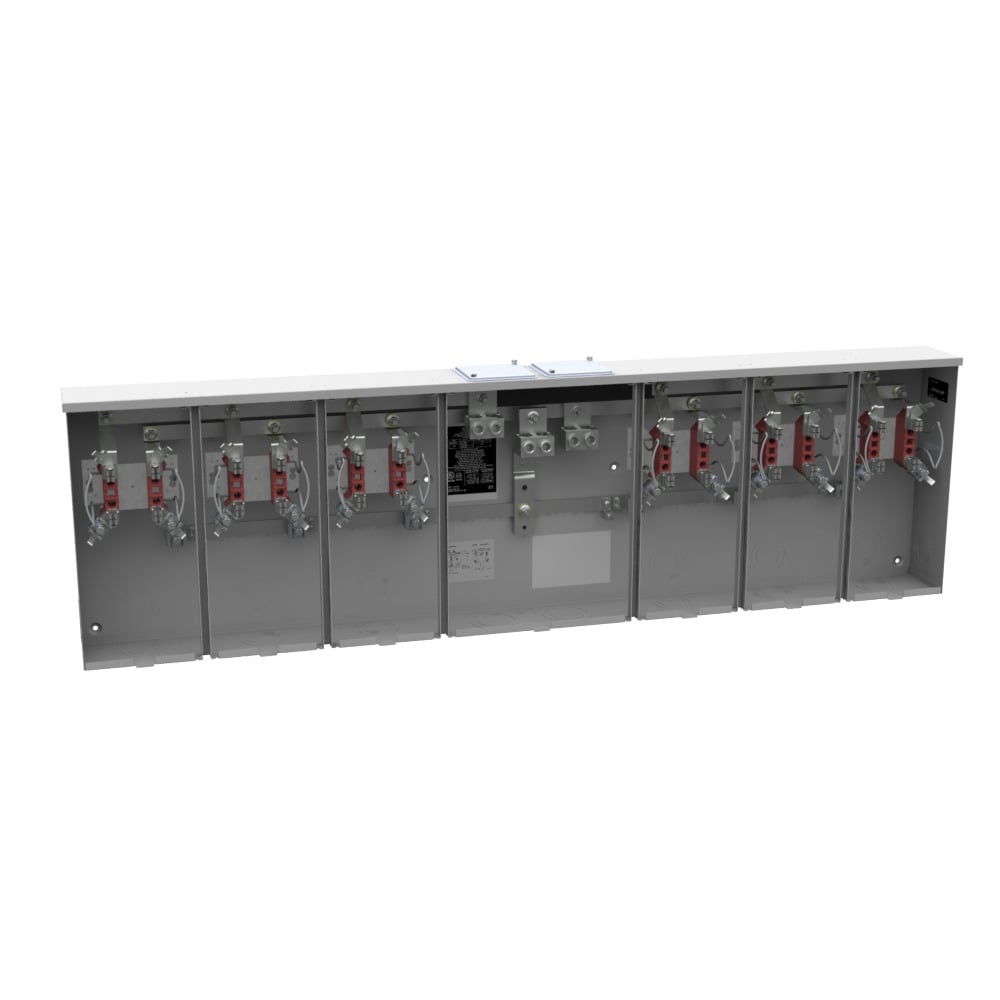

U1256-X-QG-KK-K4 4 Term, Ringless, Large Closing Plate, Quadplex Ground, Horn Bypass, 6 Position, Double Connector, 2-600 kcmil
- MFR:
- Milbank
- MFR #:
- U1256-X-QG-KK-K4
- UPC:
- 784572191648
- Item #:
- 1032128
U1256-X-QG-KK-K4 4 Term, Ringless, Large Closing Plate, Quadplex Ground, Horn Bypass, 6 Position, Double Connector, 2-600 kcmil
- MFR #:
- U1256-X-QG-KK-K4
- UPC:
- 784572191648
- Item #:
- 1032128
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2,774.68
each
4 TERM RNGLS LRG CLS PLT QUADPLEX GND HRN BYPS 6 POS DBL CONN 2-600kcmil
Manuals and Documentation
| Catalog Number | U1256-X-QG-KK-K4 |
| Manufacturer | Milbank |
| Brand | Milbank |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 200 |
| Application | Meter Socket |
| Bypass Type | Horn |
| Cable Entry | Overhead Or Underground |
| Enclosure | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating | 60 Hz |
| Insulation | No Insulation |
| Material | G90 Galvanized Steel With Powder Coat Finish |
| Mounting | Surface Mount |
| Number of Jaws | 4 Terminal |
| Phase | 1 |
| Standard | Type 3R |
| UPC | 784572191648 |
| GTIN | 00784572191648 |
| Item Type | Ringless Meter Socket |
| Length | 5.125 |
| Length UOM | Inch |
| Width | 62.875 |
| Width UOM | Inch |
| Height | 18 |
| Height UOM | Inch |
| Size | 5.125L x 62.875W x 18H |
| Terminals | Double Mechanical |
| Voltage Rating | 300 V |
