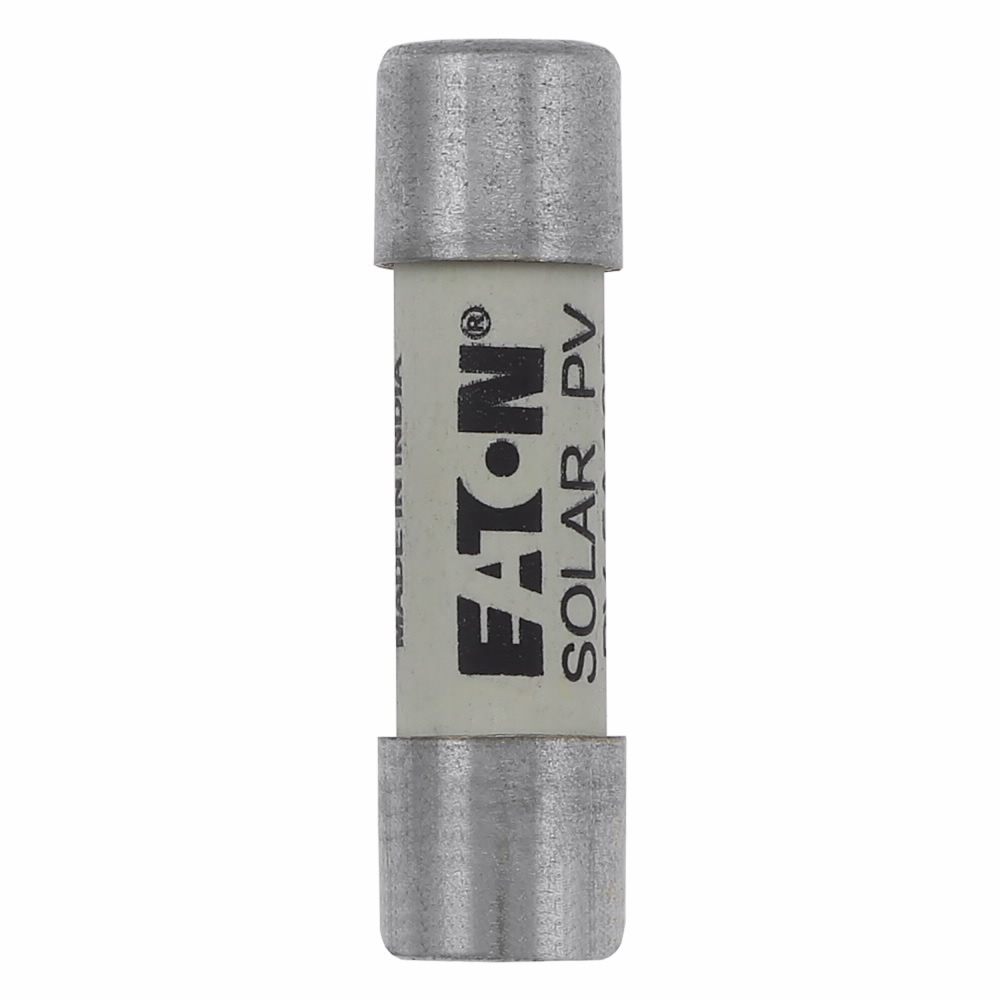

PV-5A10F High Speed Photovoltaic Fuse, 5 A, 1 kV AC, 50 kA Interrupt, Class: gPV
- MFR:
- Eaton Bussmann
- MFR #:
- PV-5A10F
- UPC:
- 051712245203
- Item #:
- 103038
PV-5A10F High Speed Photovoltaic Fuse, 5 A, 1 kV AC, 50 kA Interrupt, Class: gPV
- MFR #:
- PV-5A10F
- UPC:
- 051712245203
- Item #:
- 103038
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$93.62
each
Eaton's Bussmann series photovoltaic gPV solar fuses are specifically designed to protect DC system up to 1500 V d.c. They are suitable for the DC protection of solar panels, combiner boxes, recombiner units and battery storage.
Manuals and Documentation
| Catalog Number | PV-5A10F |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Multiple |
| Made in USA | No |
| Amperage Rating | 5 |
| Application | Generation - Renewable Energy - Alternative Energy|Generation - Renewable Energy - Storage Systems|Generation - Renewable Energy - Solar |
| Connection | Ferrule end x ferrule end |
| Interrupt Rating | 50 kAIC |
| Material | Ceramic |
| Special Features | Minimum interrupting rating 1.3 x In, Time constant: 1-3 ms |
| Standard | CSA Certified ,IEC Rated ,UL Listed ,UL 2579 ,UL AWM 20253 ,CCC Marked ,Clasificación IEC ,UL AWM 20253 ,CCC Marked ,UL Listed ,CSA Certified ,UL 2579 ,UL Listed ,IEC-Einstufung ,CCC Marked ,CSA Certified ,UL 2579 ,UL AWM 20253 ,CSA Certified ,Zgodność z IEC ,CCC Marked ,UL Listed ,UL AWM 20253 ,UL 2579,RoHS Compliant,CE Marked,Con marca CE,Compatible con RoHS,RoHS-konform,CE-Kennzeichnung,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS |
| UPC | 051712245203 |
| GTIN | 00051712245203 |
| Item Type | High speed photovoltaic fuse |
| Weight UOM | Grams |
| Size | 10.30 mm Diameter X 38.00 mm Length |
| Voltage Rating | 1000 Vdc |
