Discontinued

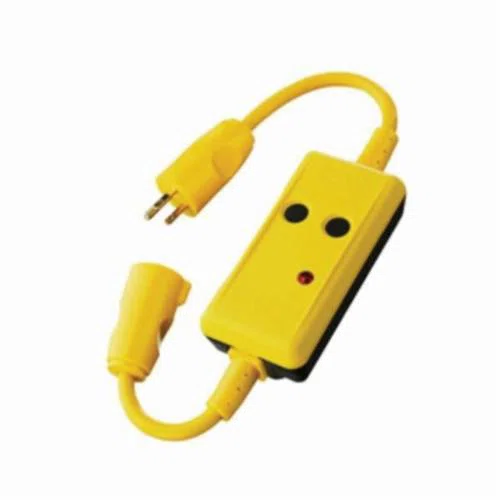

GFP4C15A 3-Wire Automatic Set Portable Straight Blade Fabricated GFCI Line Cord With Male/Female End, (3) 14 AWG Copper Conductor, 18 in L, 120 V AC
- MFR:
- Hubbell
- MFR #:
- GFP4C15A
- UPC:
- 783585829531
- Item #:
- 103021
Discontinued
GFP4C15A 3-Wire Automatic Set Portable Straight Blade Fabricated GFCI Line Cord With Male/Female End, (3) 14 AWG Copper Conductor, 18 in L, 120 V AC
- MFR #:
- GFP4C15A
- UPC:
- 783585829531
- Item #:
- 103021
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Hubbell Wiring Device-Kellems Circuit Guard® GFCI Line Cord, 3-Wire Automatic Set Portable Straight Blade Fabricated, 14 AWG Conductor, 3 Conductors, Copper Conductor, 18 in Length, Female x Male End Style, Multi Strands, 0.245 in OD, 15 A, 120 V AC, Elastomer Insulation, PVC Jacket, -30 to 150 deg F, Yellow
Manuals and Documentation
Features
- Straight blade device style, 4 to 6 mA trip level
- 0.025 sec trip time, 0.95 maximum humidity and 60 Hz frequency
- PVC plug and connector and rubber button
- Automatically sets the GFCI for use upon plug in and after the loss of primary power
- After a ground fault condition, unit must be reset by pushing the reset button
| Manufacturer Part Number | GFP4C15A |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| UPC | 783585829531 |
| Country Of Origin | CN |
| Amperage Rating | 15 A |
| Color | Yellow |
| Conductor Size | 14 AWG |
| Conductor Type | Copper |
| End Style | Female x Male |
| Insulation Material | Elastomer |
| Jacket Material | PVC |
| Length | 18 in |
| Number Of Conductors | 3 |
| Outside Diameter | 0.245 in |
| Strands | Multi |
| Temperature Rating | -30 to 150 deg F |
| Type | 3-Wire Automatic Set Portable Straight Blade Fabricated |
| Voltage Rating | 120 V AC |
| Alternative Part Number | 8956877 |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | UL 498 | UL 943 | UL 817 | CSA Certified | NEMA WD1/WD5 |
