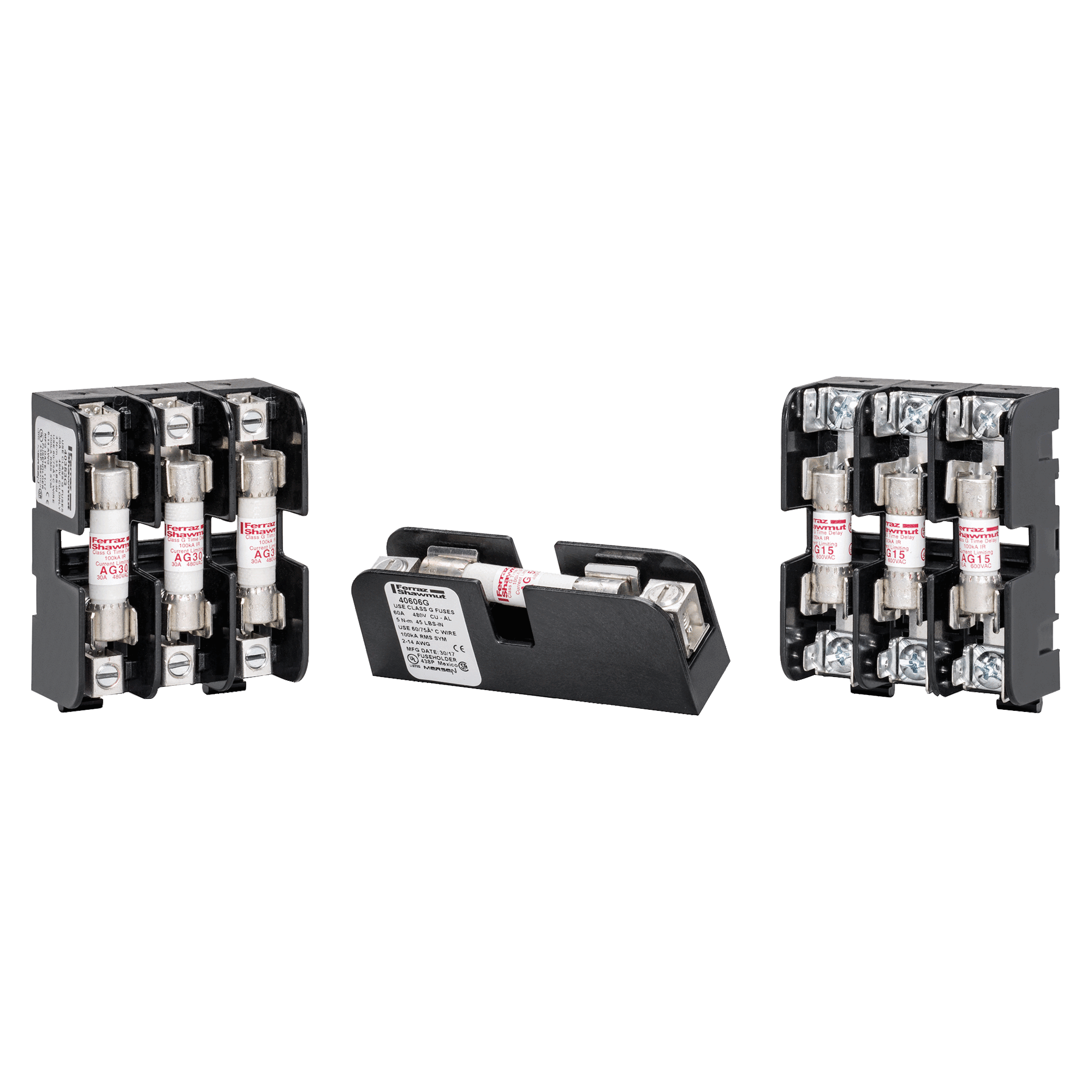

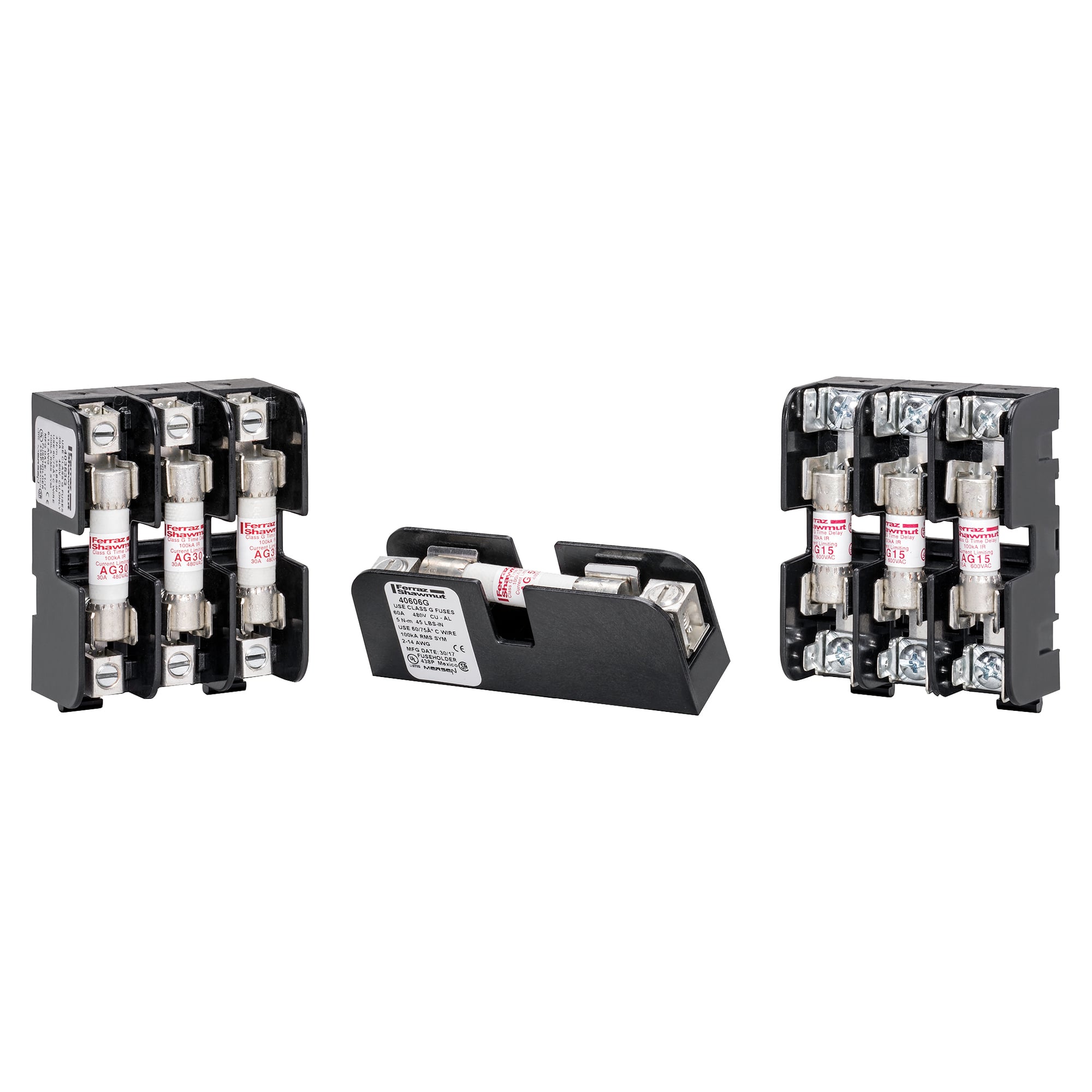

40352G Open Style Fuse Block, 480 V AC, 30 A, Class: G, 14 to 6 AWG Wire, 2 Poles
- MFR:
- Mersen
- MFR #:
- 40352G
- UPC:
- 782001674984
- Item #:
- 1028343
40352G Open Style Fuse Block, 480 V AC, 30 A, Class: G, 14 to 6 AWG Wire, 2 Poles
- MFR #:
- 40352G
- UPC:
- 782001674984
- Item #:
- 1028343
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Fuse Block 480VAC 480VDC Class G 30A 2-Pole Copper Box
Manuals and Documentation
| Catalog Number | 40352G |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 30 |
| Connection | Copper Box |
| Material | Glass Filled Polycarbonate |
| Mounting | Din Rail |
| Number of Poles | 2 |
| Special Features | Unique integral DIN-rail adapters for 15, 20 & 30A blocks Unique adder-block design (all ampere ratings) for design flexibility Spring reinforcing standard for 60A clips Features high conductivity copper alloy fuse clips |
| Standard | All fuse blocks meet the requirements of UL 4248 UL Listed guide IZLT, File E52283 CSA Certified class 6225, File 32169 |
| UPC | 782001674984 |
| GTIN | 00782001674984 |
| Item Type | UL/CSA Fuse Bases |
| Size | 3.05 x 1.62 x 1.45 |
| Voltage Rating | 480 |
