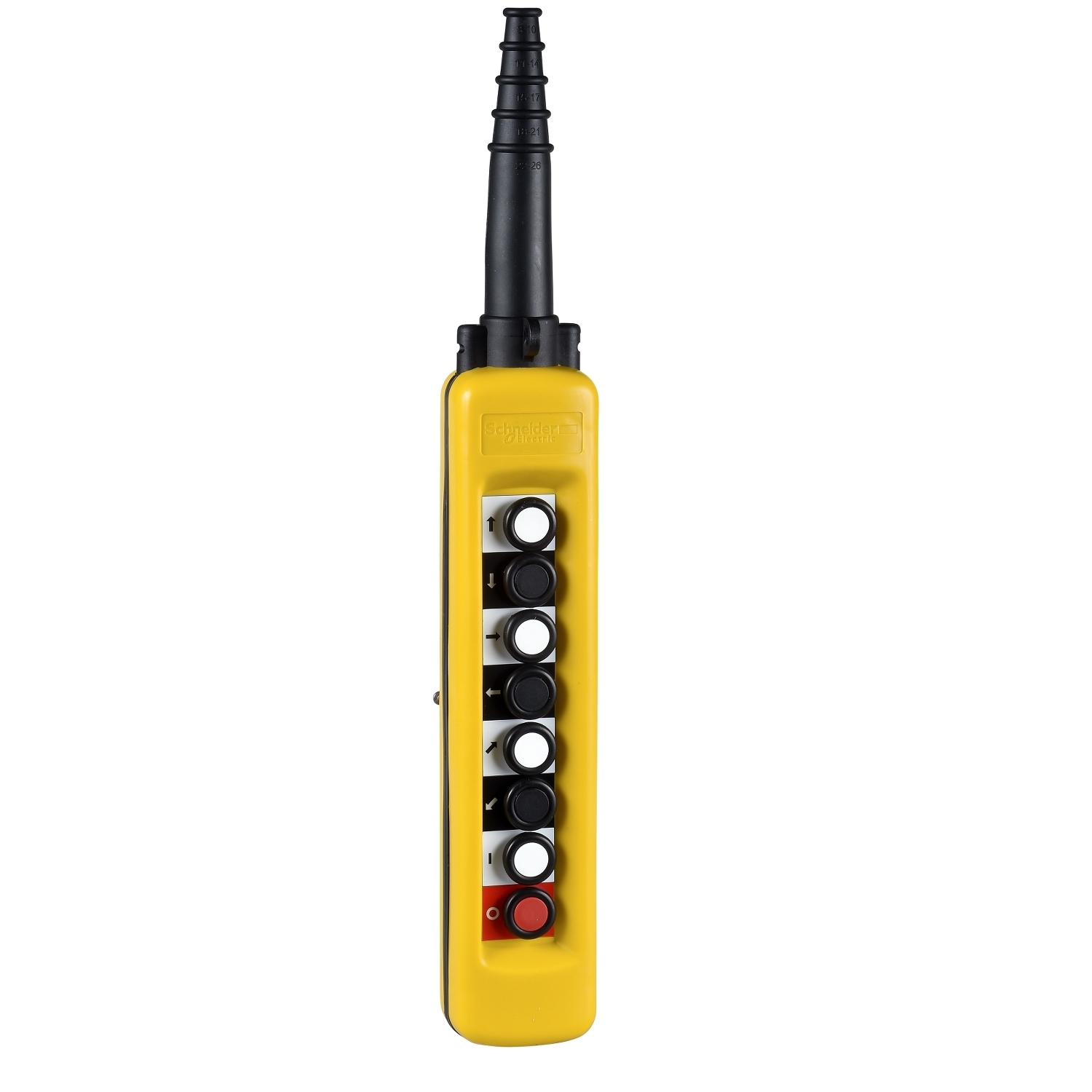

XACA881 Harmony Double Insulated Pendant Control Station With Mechanical Interlocking, 1NO-1NC 1 Form A/1 Form B Contact, 8 Operators

MFR:
Schneider Electric
MFR #:
XACA881
Item #:
1026073

Availability

Location Available Qty
Available Available to Order
$477.02 each

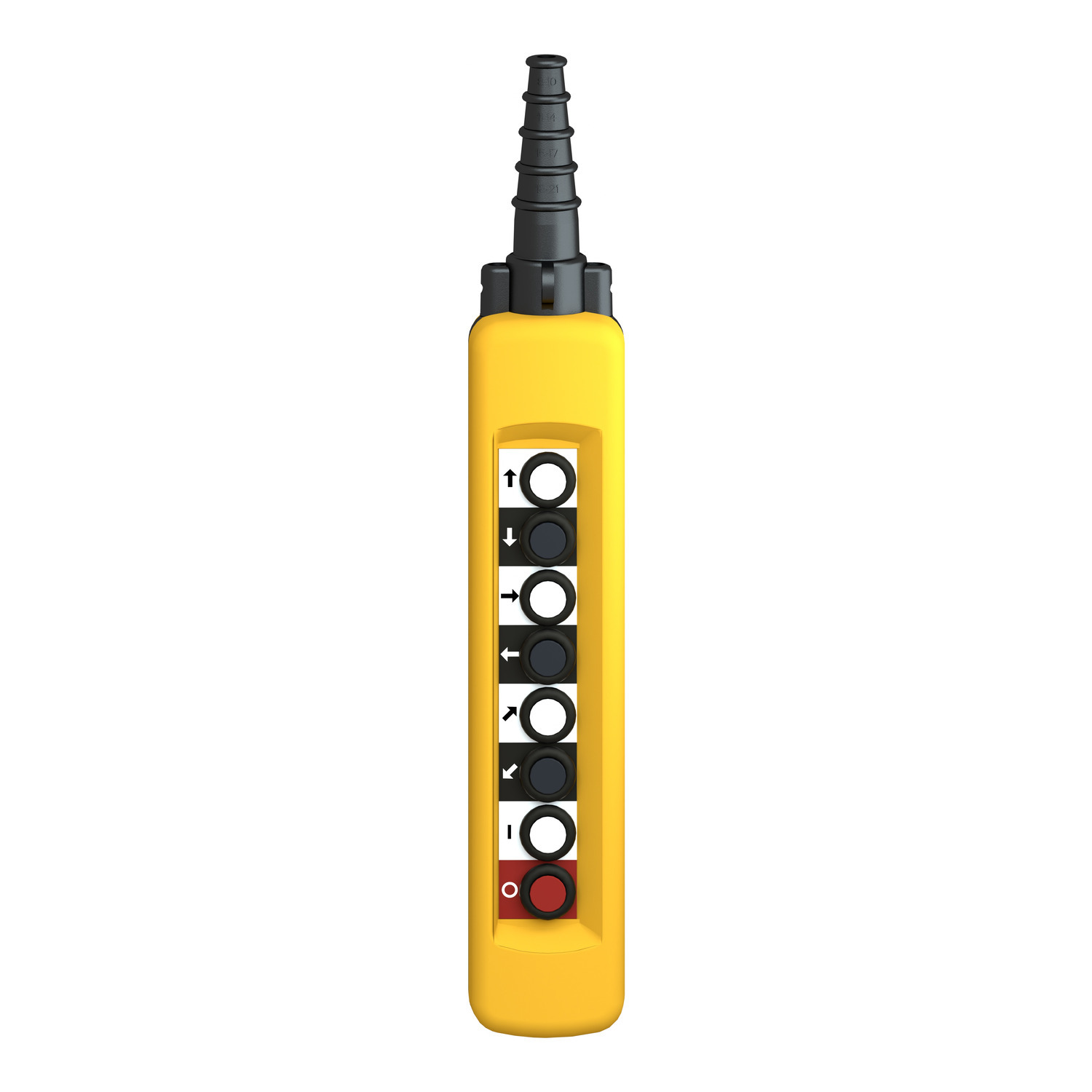

This Schneider Electric Harmony XAC yellow pendant station for hoist motor has single speed. It has 1 "raise" + 1 "lower" + 1 "left" + 1 "right" + 1 "forward" + 1 "reverse" + 1 "O" + 1 "I" push-buttons and uses screw-clamp terminals. This pendant station for hoist motor is designed for standard or medium-duty control circuit applications in your machines. It has 8 push-buttons with "raise", "lower", "left", "right", "forward", "reverse", "O", "I" markings, with normally open and normally close contact. It is impact resistant (strength), dust resistant (strength), water resistant (strength) and vibration resistant (strength) thanks to its IP65, making it ideal for operation in harsh (heavy) environments. Impact- and stain resistant (strength) enclosure for a sustained appearance despite rough usage conditions. No need to damage your machine or system with multiple 22mm hole, thus avoiding common issues like edge corrosion. Yellow enclosure, favoring visual contrast and visibility in dark conditions. Wide range of operating temperatures from -25C to 70C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

Manuals and Documentation
Catalog Number XACA881
Manufacturer Schneider Electric
Brand Schneider Electric
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Application Control of single speed hoist motor;ZB2BE102 + ZB2BE101 for each direction;Control circuit
Cable Entry Rubber sleeve with stepped entry 8-26 mm
Connection Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end;screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end
Contact Rating Slow-break
Enclosure Polypropylene
Special Features Complete ready for use;With mechanical interlocking between pairs
Standard GOST;CCC;IK08 conforming to IEC 62262;IEC 60947-5-1;UL 508;CSA C22.2 No 14;IEC 60204-32;100 gn IEC 60068-2-27;15 gn 10-500 Hz)IEC 60068-2-6;IP65 conforming to IEC 60529
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=673920&lang=en-us
GTIN 03389110644883
Item Type Pendant control station;Double insulated
