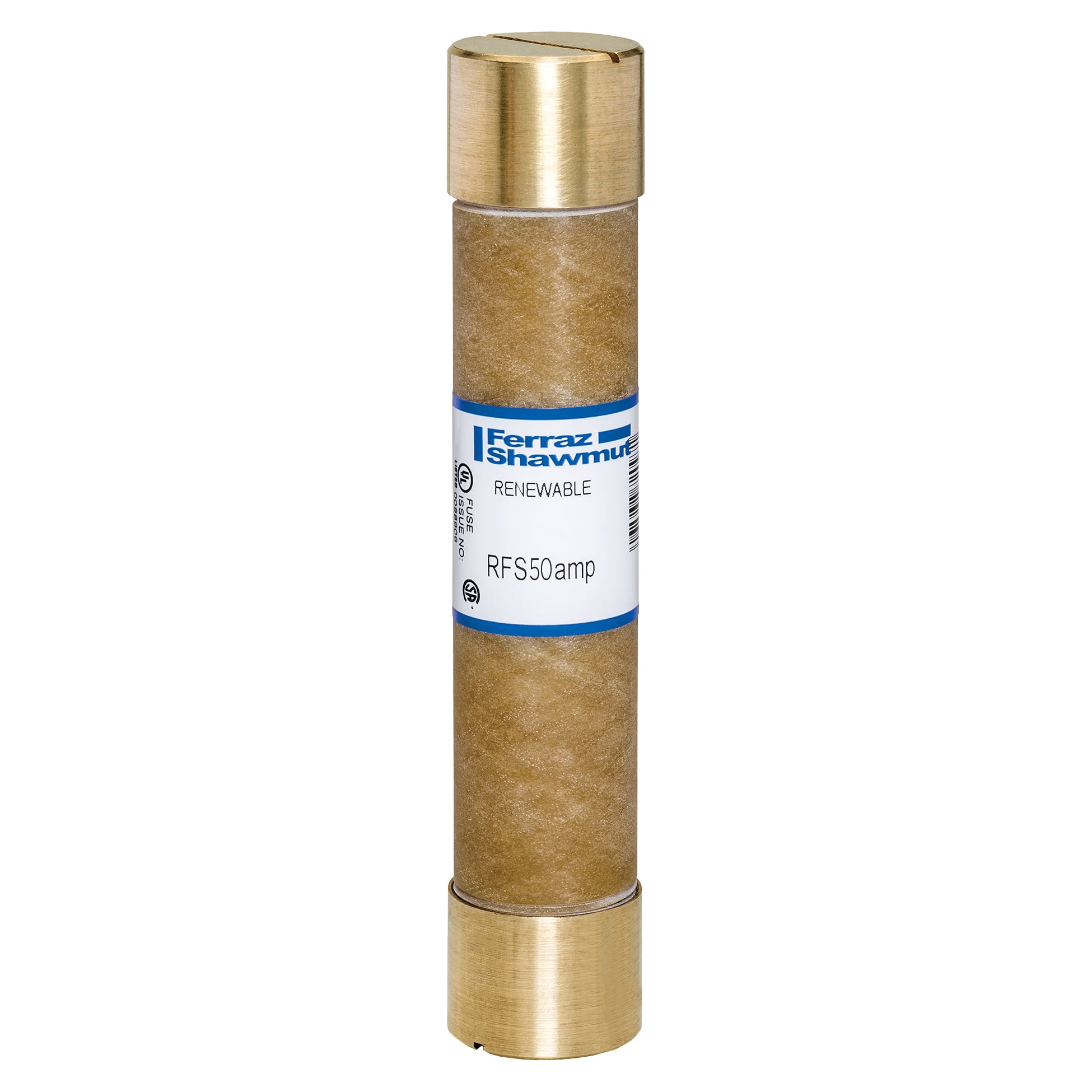

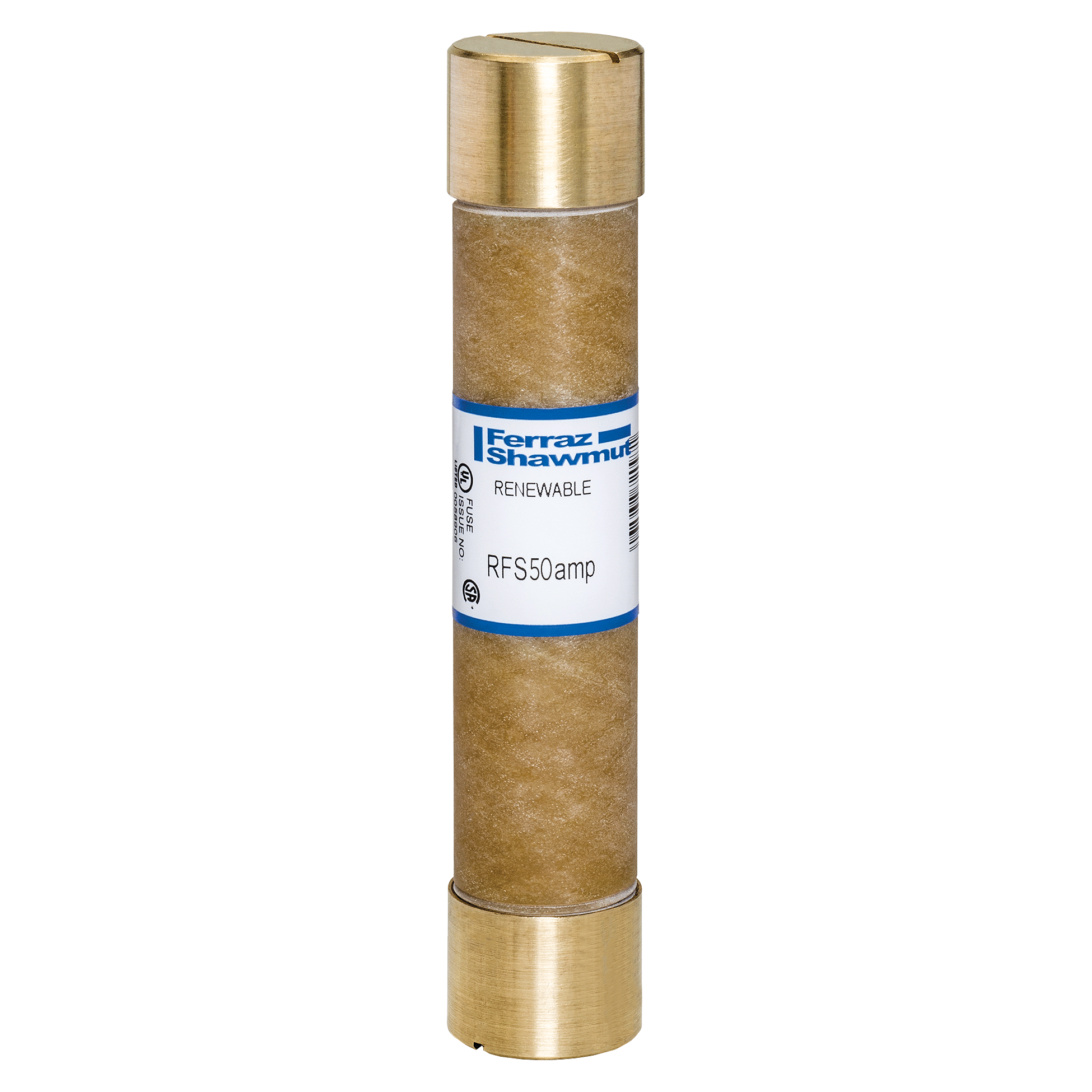

RFS50 Fast Acting Low Voltage North American Style Renewable Fuse, 50 A, 600 V AC, 10 kA Interrupt, H Class, Cylindrical Body
- MFR:
- Mersen
- MFR #:
- RFS50
- UPC:
- 068938720957
- Item #:
- 1025236
RFS50 Fast Acting Low Voltage North American Style Renewable Fuse, 50 A, 600 V AC, 10 kA Interrupt, H Class, Cylindrical Body
- MFR #:
- RFS50
- UPC:
- 068938720957
- Item #:
- 1025236
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Fuse RFS - Class H - Fast-Acting 600VAC 50A Ferrule
Manuals and Documentation
| Catalog Number | RFS50 |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 50 |
| Application | General purpose loads where short circuits are 10,000 amperes or less |
| Connection | Ferrule |
| Interrupt Rating | 10 KA |
| Mounting | Clip |
| Special Features | Knurled bushings for ease of disassembly Rugged construction for maximum service life Precision die-cut renewal links renew quickly and give repeatable performance |
| Standard | UL listed to standard 248-7 File E2137 CSA certified to standard C22.2 no. 248.7 |
| UPC | 068938720957 |
| GTIN | 00068938720957 |
| Item Type | Renewable Fuses |
| Size | 5.5 x 1.06 |
| Voltage Rating | 600 |
