Discontinued
BURNDY

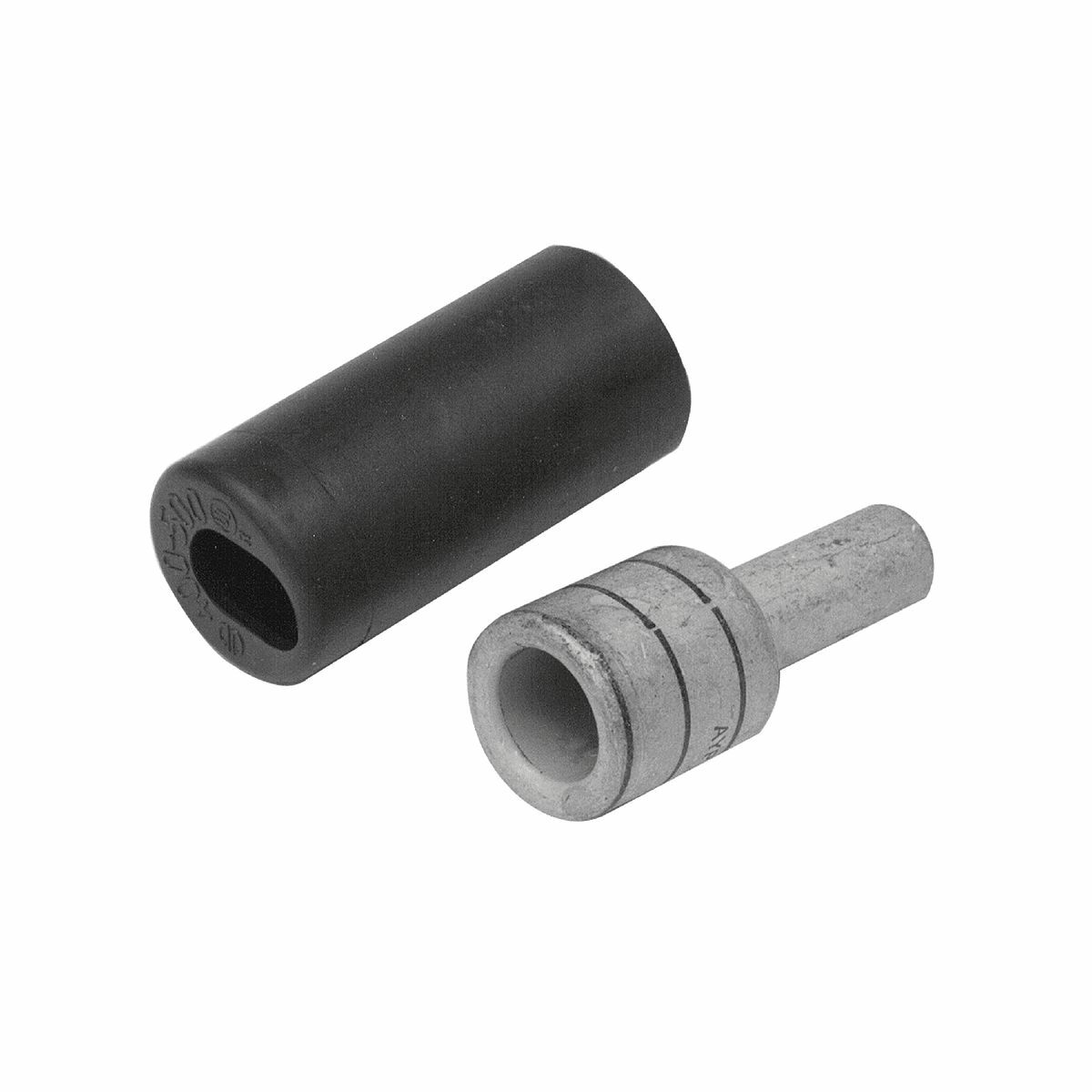

YEV2CP20X75FX Type YE-P-FX Compression Pin Adapter With Cover, 4 to 2 AWG Conductor, Die Code: 10 Element A, 0.2 in Dia x 3/4 in L Pin, Copper

MFR:
Burndy, a Hubbell affiliate
MFR #:
YEV2CP20X75FX
UPC:
781810037911
Item #:
1023466

Availability

Location Available Qty
Available Available to Order
Manuals and Documentation
Catalog Number YEV2CP20X75FX
Manufacturer Burndy, a Hubbell affiliate
Brand BURNDY
Country of Origin United States
Made in USA Yes
Application For Copper Conductors
Insulation Y
Special Features Features: Type YE-P-FX Copper Compression Adapters Are Designed For Reliable Termination Of Copper Conductor When The Current Capacity Of The Conductor Is Downsized, But Larger Conductor Is Utilized, Typical Applications Are For Voltage Drop Protection When Oversized Conductors Are Used Or Flex Conductor Is Used, These Adapters Facilitate The Termination Into Existing Mechanical Set Screw Connectors For Various Stranded Copper Cables, Plug/pin Length: 0.75 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MY29-11 Tool, (2), Y2MR Tool, (4), MD7-34R Tool, W2CVT Die, (4), MD6, MD7 Tool, W2CRT Die, (4), Hydraulic: Y35, Y39, Y750, Y45 Tool, U2CRT Die, (2), Y46 Tool, U2CRT Die With PUADP-1 Adapter, (2), Y644M Tool, 6 - 2 AWG, (1), Wire Strip Length: 1-3/4 IN, Die Index: 10 Element A, Plug/pin Diameter: 0.2 IN - 4 AWG
UPC 781810037911
GTIN 00781810037911
Item Type Copper Pin Adapters
Temperature Rating 194
