Telemecanique

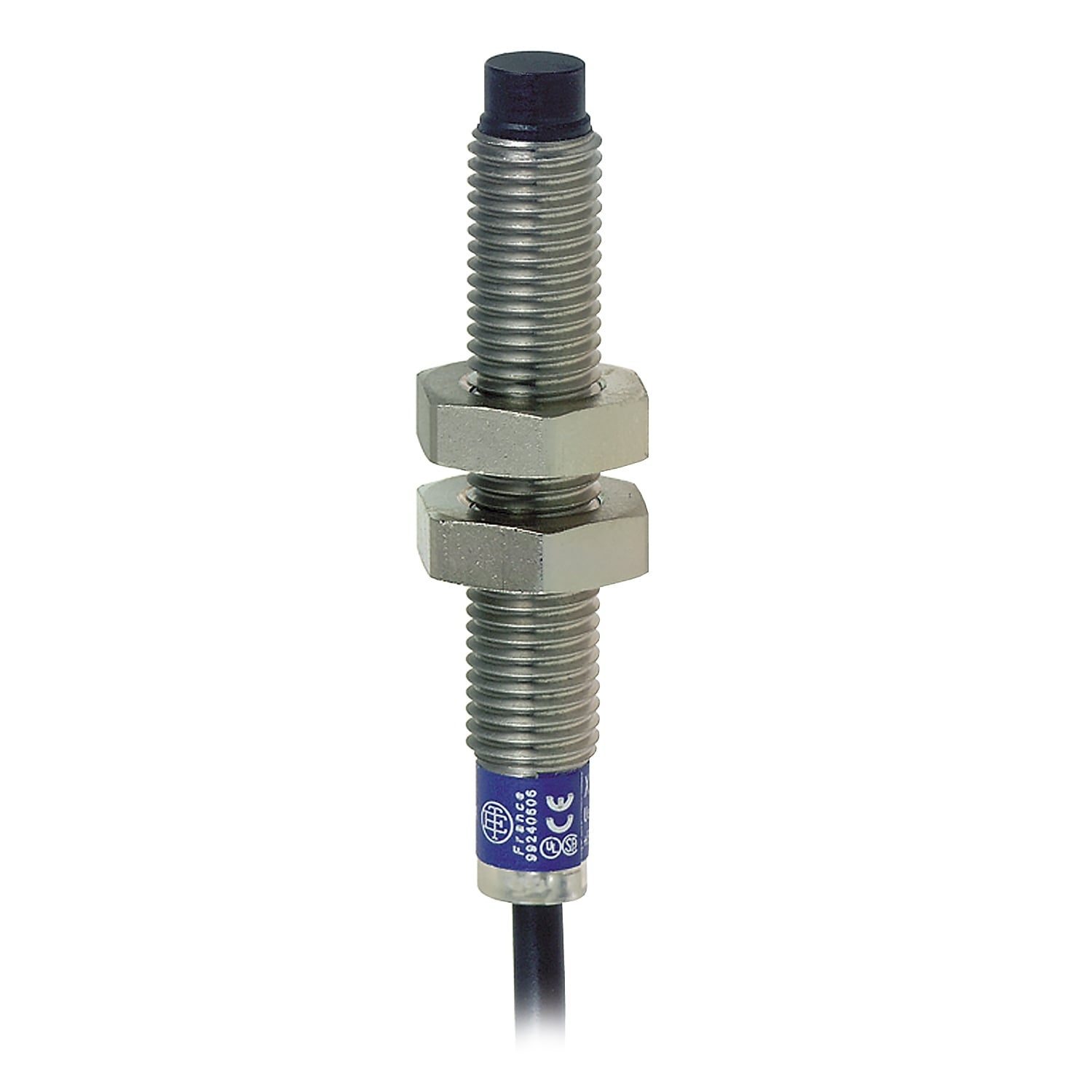

XS2M08MA230 OsiSense XS 2-Wire Fixed Cylindrical Non-Shielded Tubular Inductive Proximity Sensor, Inductive, Discrete Output, 1NO Contact, 24 to 240 V AC/24 to 210 V DC

MFR:
Telemecanique Sensors
MFR #:
XS2M08MA230
UPC:
785901649038
Item #:
102335

Availability

Location Available Qty
Available Available to Order
$253.08 each

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, flush mountable sensor. Diameter 8mm, threaded M8 x 1. It features a nickel plated brass case and M8 connector. Two-wire, AC/DC (24V to 240VDC, 24V to 240VAC), 1 discrete output .

Manuals and Documentation
Catalog Number XS2M08MA230
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application 2-wire DC short-circuit protection
Connector Cable
Enclosure Nickel Plated Brass
Indicator Output state 1 LED yellow);supply on 1 LED green)
Material Metal
Mounting Flush
Sensor INDUCTIVE PROXIMITY SENSOR
Special Features SHORT-CIRCUIT PROTECTION
Standard IP67;CE
Supply Voltage 24...210 V DC;24...240 V AC 50/60 Hz
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=867982&lang=en-us
UPC 785901649038
GTIN 03389110912104
Item Type Inductive proximity sensor;Cylindrical M8
