Mersen

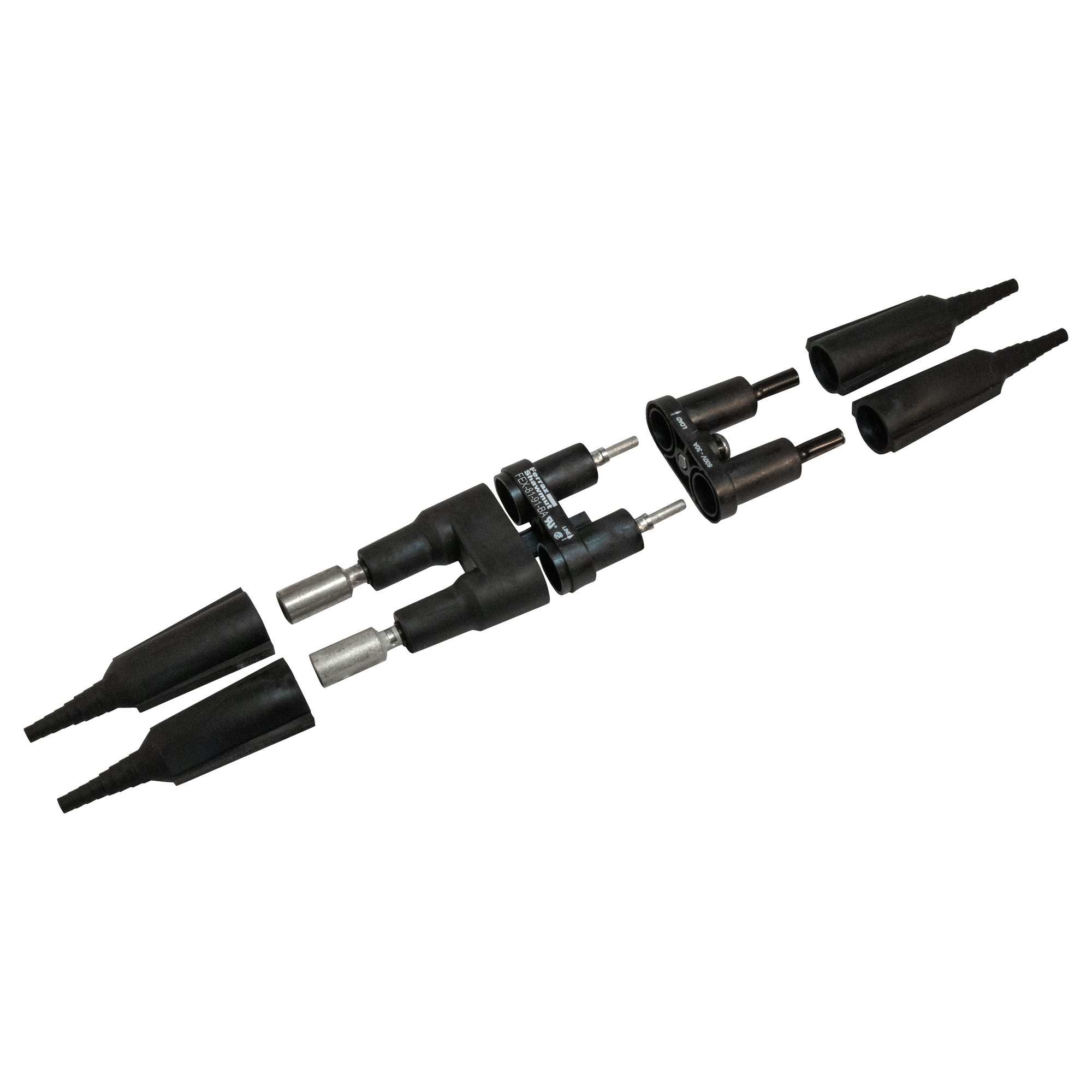

FEX-81-91-BA FEX Breakaway Fuse Holder With FSB1 and FSB2 Insulated Boot, 600 V AC/DC, 30 A, 12 to 2 AWG Wire, 2 Poles

MFR:
Mersen
MFR #:
FEX-81-91-BA
UPC:
782001301316
Item #:
1022391

Availability

Location Available Qty
Available Available to Order

Fuse Block 600VAC 600VDC Midget 30A 2-Pole 81-91-BA Single Set Screw / Double Set Screw

Manuals and Documentation
Catalog Number FEX-81-91-BA
Manufacturer Mersen
Brand Mersen
Country of Origin Mexico
Made in USA No
Amperage Rating 30
Application Street lighting Parking lot lighting Traffic signaling Sports lighting Boats and marinas Humid/corrosive environments
Connection Single Set Screw / Double Set Screw
Material Polyethylene
Mounting In-Line
Number of Poles 2
Special Features Breakaway version quickly disconnects line side during pole knockdown in compliance with state and federal highway commission standards 3 O-rings per pole for water tight applications Colored O-rings for quick detection Single and dual poles Accepts midget or Class CC fuses Wide assortment of terminal variations High heat, impact resistant insulator Captive nut or screw for quick installations Polarized dual pole provides simultaneous disconnection Permanently installed neutral versions quickly identified by white nuts Tulip fuse clip for improved contact and low losses Environmentally friendly-no lead solder used Highly visible catalog number even with insulation boots installed Wire gauge size identified on insulation boots for quick, accurate trimming Time delay for motor starting and transformer inrush
Standard UL Listed Class CC Guide IZLT, File E52283 UL Recognized Component Midget Guide IZLT2, File E52283 CSA Certified Class CC and Midget Class 6225, File 32169
UPC 782001301316
GTIN 00782001301316
Item Type UL/CSA Fuse Bases
Size 5.8 x 2.96 x 1
Voltage Rating 600
