Discontinued

2774-20 M18 Force Logic Cordless Hydraulic Pump

MFR:
Milwaukee Tool
MFR #:
2774-20
UPC:
045242007745
Item #:
1020055

Availability

Location Available Qty
Available Available to Order

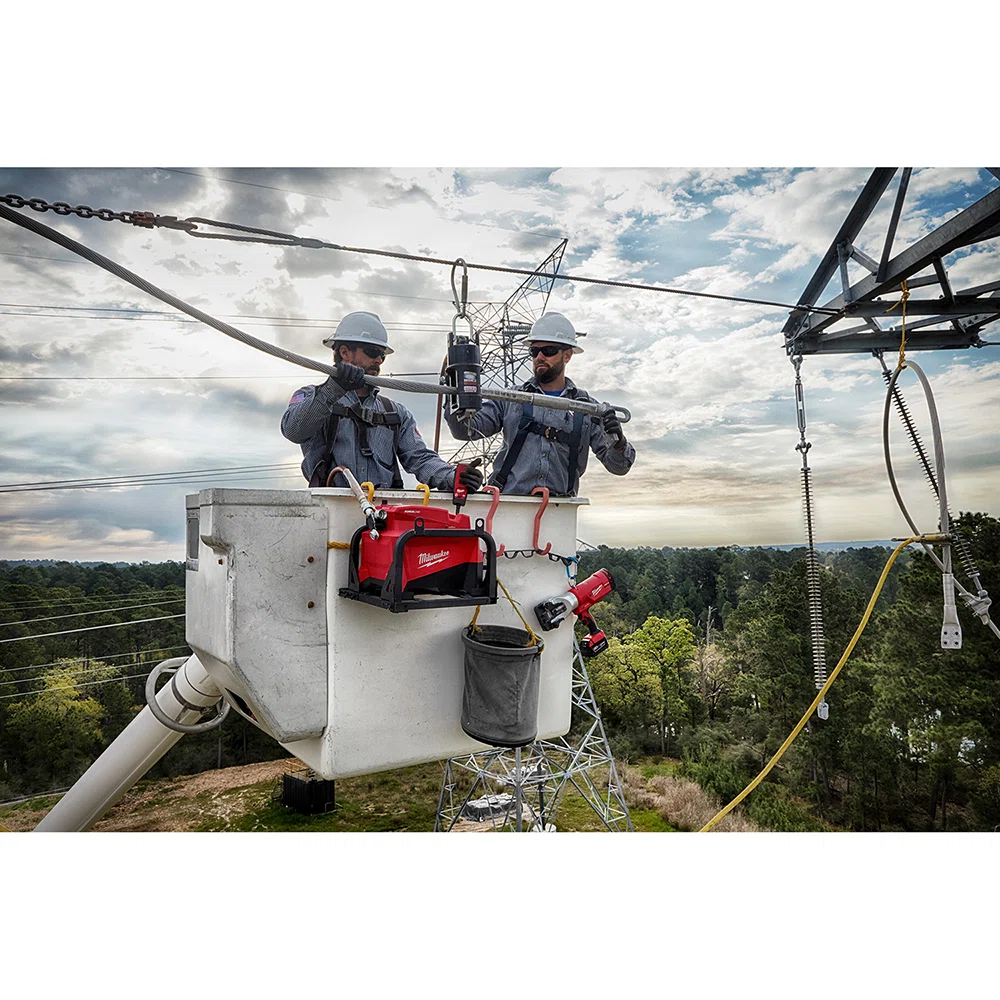

The M18™ Force Logic™ 10,000PSI hydraulic pump is the easiest way to power hydraulics. Designed to be fully compatible with all existing 10,000PSI rated hydraulic hoses and heads the hydraulic pump fundamentally changes the way that transmission lines get installed. Delivering the easiest set-up at up to 80% smaller and up to 75 lbs lighter than gas units the pump can be easily carried by a single person. Utilizing the available bucket hanger attachment creates a stable, level operating position that maximizes the available space in buckets and baskets. A high pressure flow rate 3X that of competitive cordless pumps delivers gas-like performance; 24 second cycle times and up to 60 presses on a single battery on 1590 ACSR connectors. Three modes of operation gives users the flexibility to modify tool operation to their specific application. Wireless mode creates a physical air gap between an operator and a potentially live electrical line when performing a remote cut. PFM™ (predictive force monitoring) provides instant pressure verification with a green indicator. Milwaukee® ONE-KEY™ technology enables the user to store real time cycle data, generate professional reports, view historical tool performance data and sync it all wirelessly to the cloud for easy access. Featuring a POWERSTATE™ brushless motor, REDLINK™ electronics and REDLITHIUM™ batteries results in unmatched reliability in the toughest environments. The kit includes (1) M18™ REDLITHIUM™ HIGH OUTPUT™ HD12.0 battery, M18™ and M12™ rapid charger and inverter.

Manuals and Documentation

Features

  • 3X the high-pressure flow rate of competitive cordless units
  • 3-modes of operation - auto-dump, hold-pressure and remote cut
  • Remove the physical connection to a potentially live cable with mutually exclusive wireless pairing in wireless mode
  • IP54-rated ingress protection with sealed battery door
  • 6 ft controller cord with on-board storage for easy operation
  • Battery check automatically ensures enough charge to complete each application (HD8.0 Ah batteries and up)
  • PFM™ (predictive force monitoring) provides instant pressure verification with green indicator
  • Records and stores every cycle made for professional report building through ONE-KEY™
  • Longer life with POWERSTATE™ brushless motor and weather protected electronics that keep dirt, dust and moisture out
Manufacturer Part Number 2774-20
Stripped Manufacturer Part Number 277420
Brand Milwaukee®
Manufacturer Milwaukee Tool
UPC 045242007745
Country Of Origin CN
Overall Length 15.87 in
Overall Height 12.52 in
Overall Width 11.69 in
Alternative Part Number 14818804
Manufacturer Item Status Discontinued
Country USA
Warranty 5 years
Standards Approvals UL Listed
Pressure Rating 10000 psi
