V01 TeSys DC to AC Switch Body, For Use With Disconnect Switch, 690 V AC, 20 A, 50/60 Hz, Screw Clamp Connection, IP20 Enclosure, Symmetrical Rail/Plate, 3000 Cycle, -4 to 122 deg F Operating Temperature
- MFR:
- Schneider Electric
- MFR #:
- V01
- Item #:
- 10198
V01 TeSys DC to AC Switch Body, For Use With Disconnect Switch, 690 V AC, 20 A, 50/60 Hz, Screw Clamp Connection, IP20 Enclosure, Symmetrical Rail/Plate, 3000 Cycle, -4 to 122 deg F Operating Temperature
- MFR #:
- V01
- Item #:
- 10198
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$97.69
each

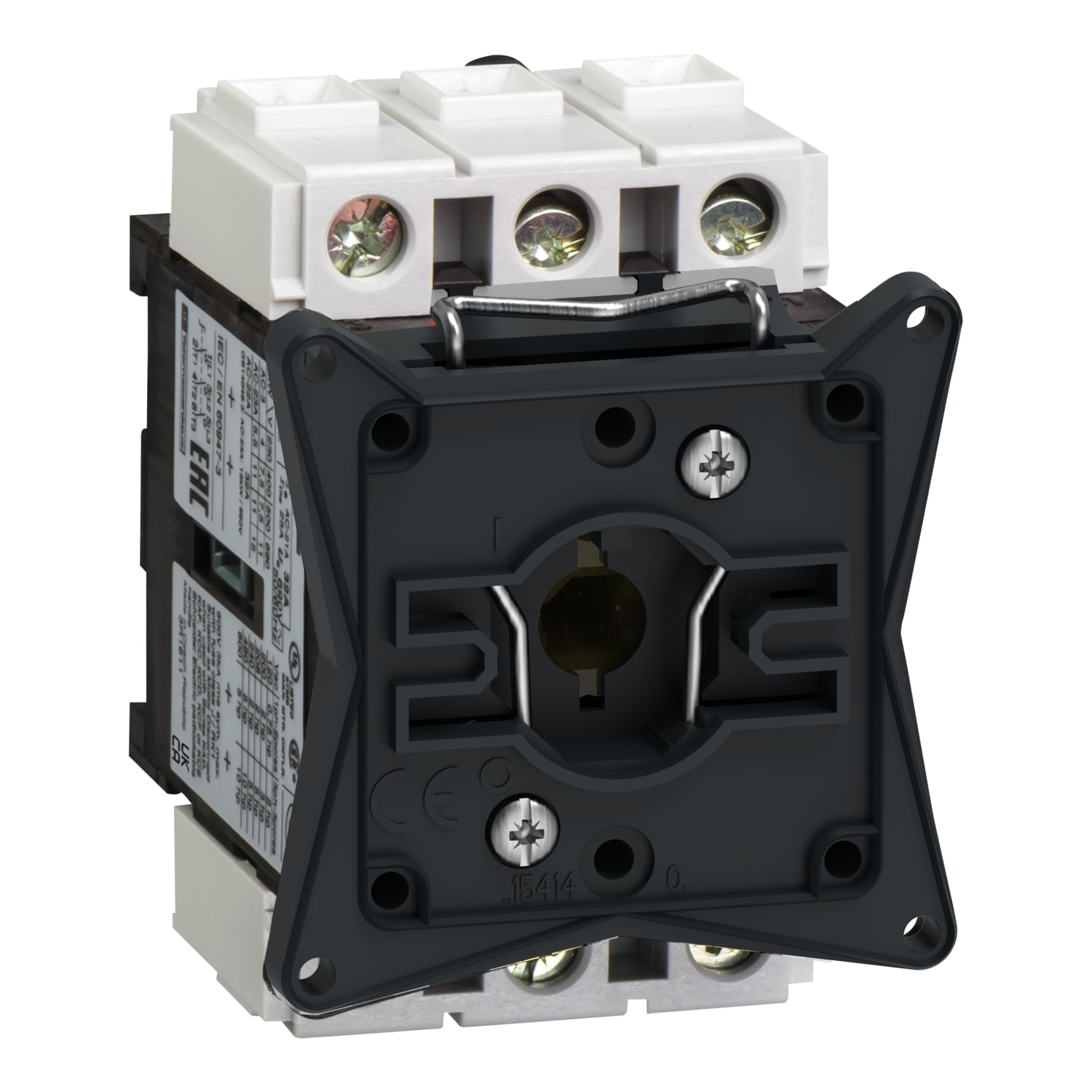

V01 is a 3-pole switch body for TeSys Vario switch-disconnector from Schneider Electric. Rated 20A 690V, it is used in motor applications up to 5.5kW@400V AC-23. To be equipped with an handle and extension shaft to form a main or emergency stop switch-disconnector. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) can complete the assembly. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Manuals and Documentation
| Catalog Number | V01 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Czech Republic |
| Made in USA | No |
| Connection | Power circuit screw clamp terminals 10-10 mm² solid;power circuit screw clamp terminals 6-6 mm² flexible - with cable end |
| Contact Configuration | 3 NO |
| Mounting | Rail Plate |
| Number of Poles | 3 |
| Special Features | High performance |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=643272&lang=en-us |
| GTIN | 03389110448894 |
| Item Type | Switch body |
