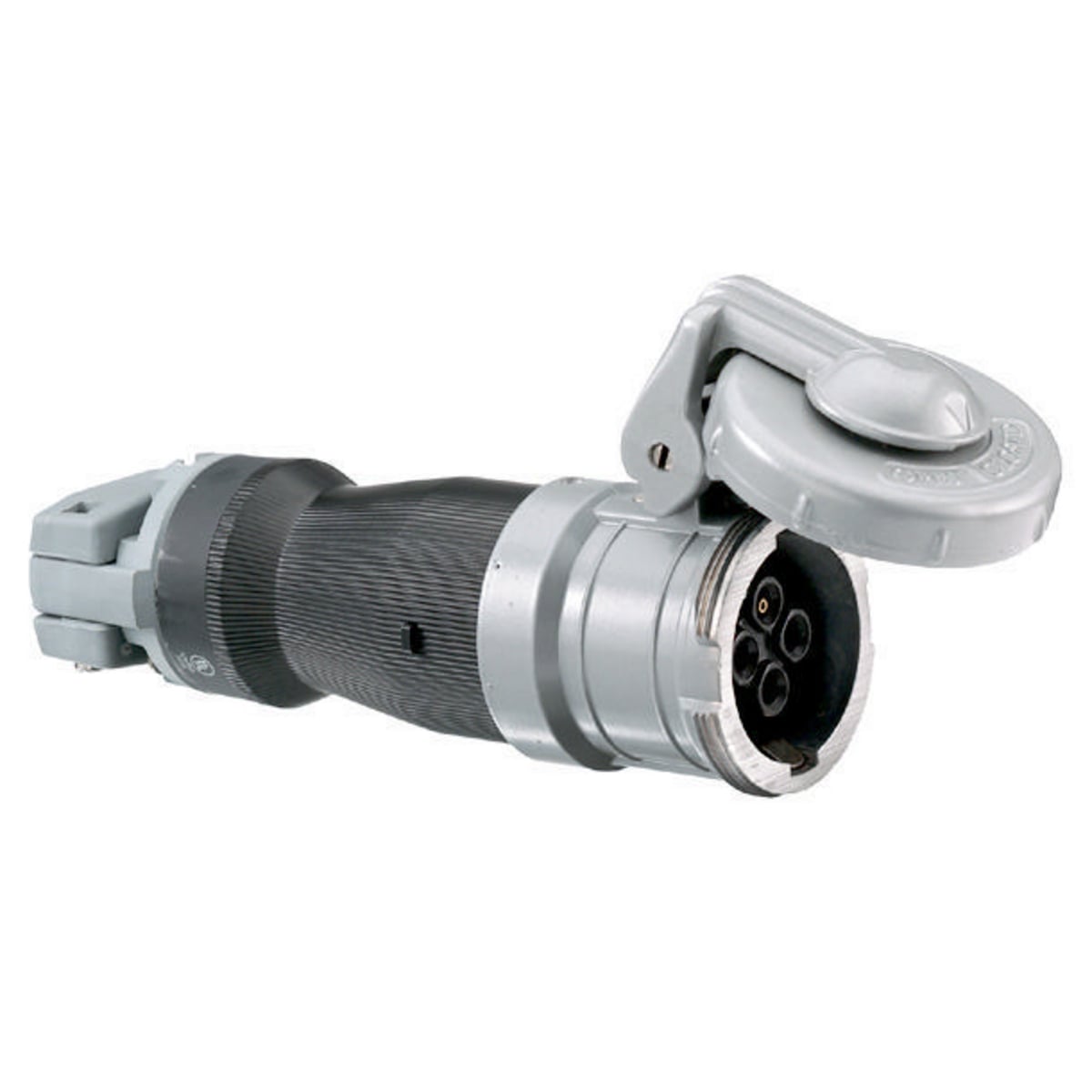

HBL530CS1W 5-Wire Female Grounding Insulated Heavy Duty Non-NEMA Standard Watertight Cord Mount Pin and Sleeve Connector, 600 V AC/250 V DC, 30 A, 4 Poles, 5 Wires, Black/Gray
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL530CS1W
- UPC:
- 783585010267
- Item #:
- 101880
HBL530CS1W 5-Wire Female Grounding Insulated Heavy Duty Non-NEMA Standard Watertight Cord Mount Pin and Sleeve Connector, 600 V AC/250 V DC, 30 A, 4 Poles, 5 Wires, Black/Gray
- MFR #:
- HBL530CS1W
- UPC:
- 783585010267
- Item #:
- 101880
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$447.68
each
Metallic where you want It, non-metallic where you need it. Different from traditional all-metallic devices, Hubbell Pin and Sleeve wiring devices are designed to provide metallic shrouding where you want it and a non-metallic housing where you need it. W.
Manuals and Documentation
| Catalog Number | HBL530CS1W |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 30 |
| Application | Metallic with Nylon Shroud |
| Color | Black;Gray |
| Conductor Range | #10 AWG to #8AWG |
| Connection | Pressure Screw Terminal |
| Insulation | Insulated Body |
| Material | Composite |
| Mounting | Cord |
| Number of Conductors | 5-Wire Grounding |
| Number of Poles | 4 |
| Special Features | Watertight |
| Standard | CSA Certified to CSA Spec. C22.2 No. 182.1;UL Listed and CSA Certified Type 4X;UL Standard 1682 |
| UPC | 783585010267 |
| GTIN | 00783585010267 |
| Item Type | Watertight Connector |
| Size | Standard |
| Environmental Conditions | Watertight |
| Temperature Rating | Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact, -25 Degrees with impact. |
| Voltage Rating | 600 VAC/250 |
