Telemecanique

XS8C4A1PCP20 OsiSense XS Fixed General Purpose Proximity Sensor, Inductive, DC PNP/Discrete Output, 1NO-1NC Contact, 12 to 48 V DC

MFR:
Telemecanique Sensors
MFR #:
XS8C4A1PCP20
Item #:
1018096

Availability

Location Available Qty
Available Available to Order
$227.08 each

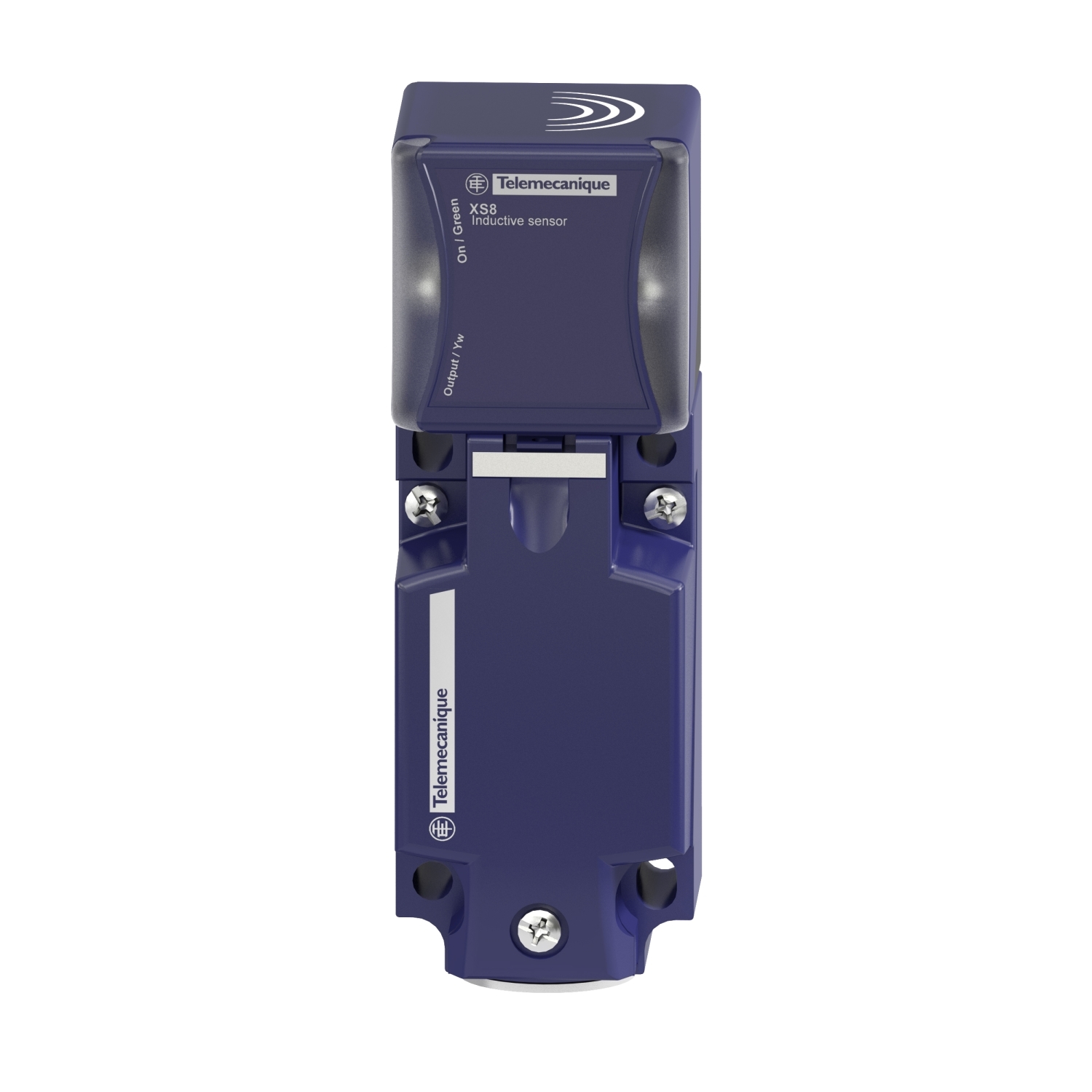

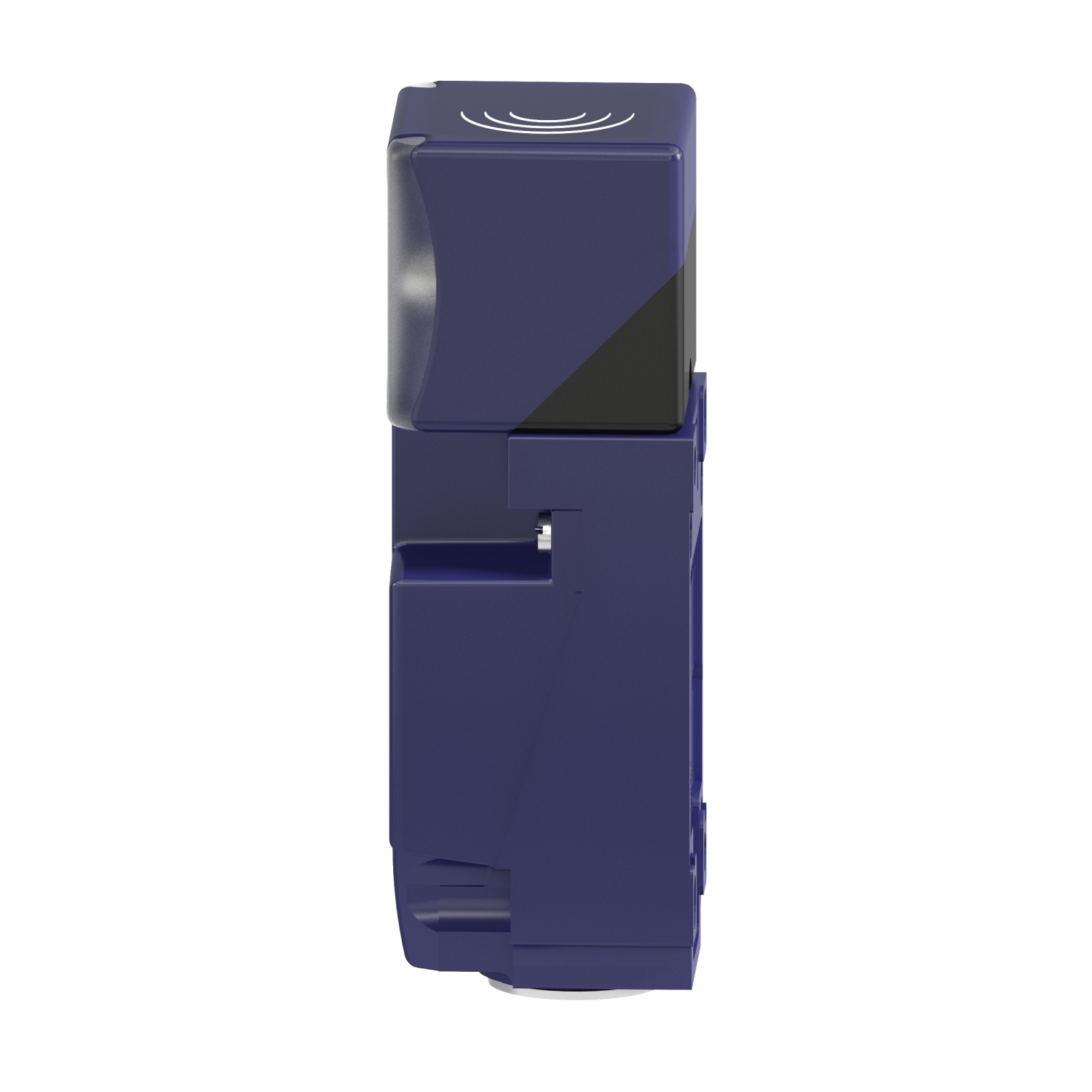

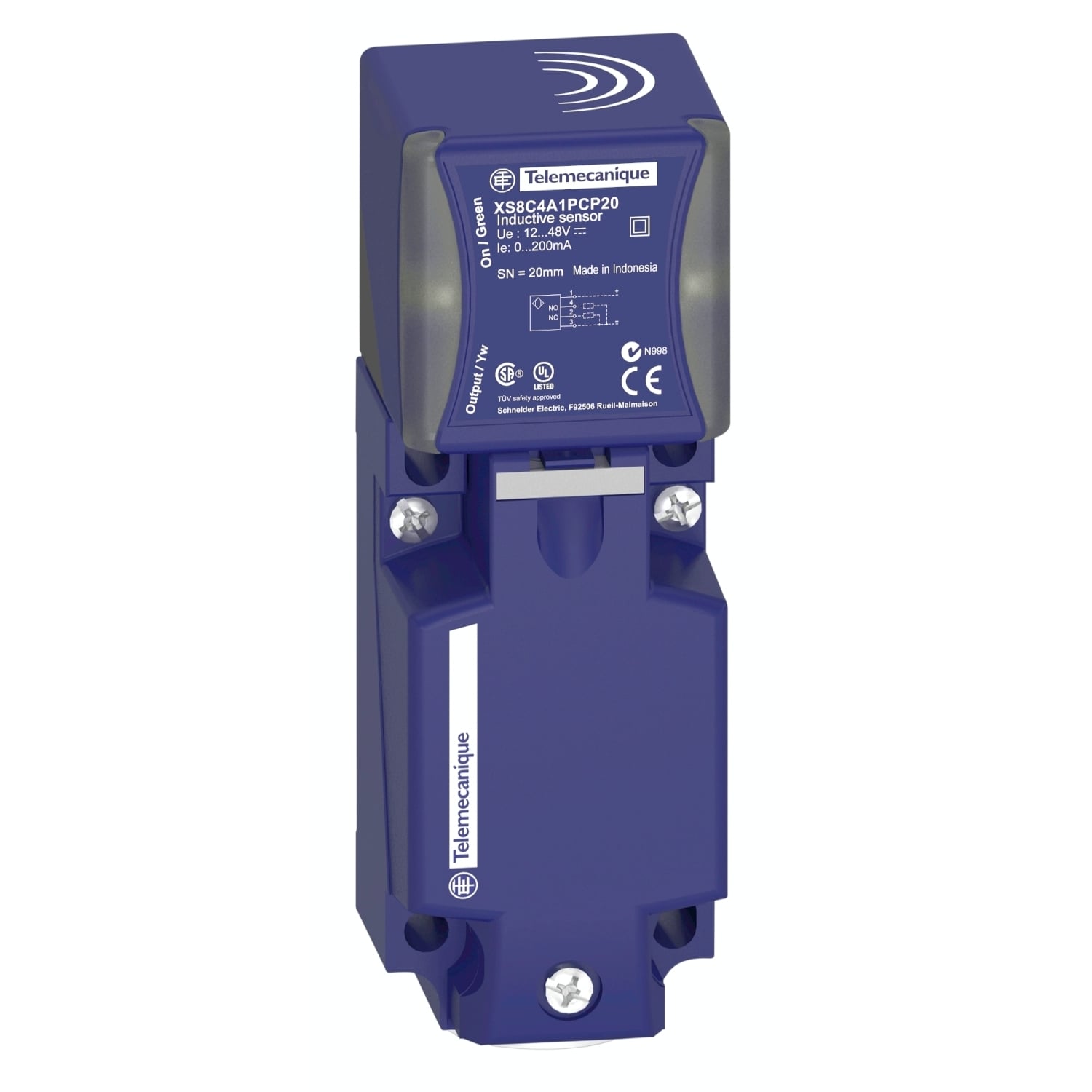

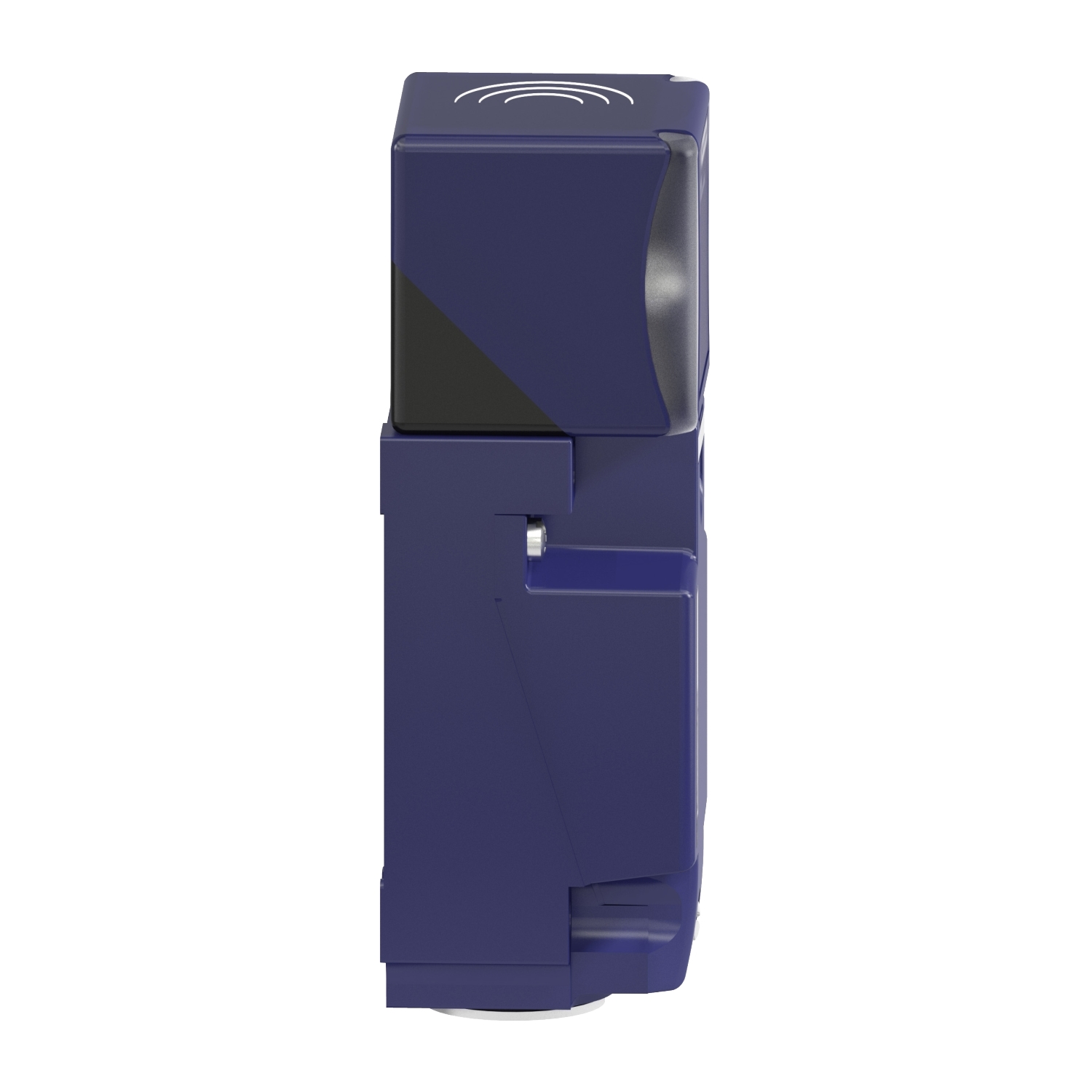

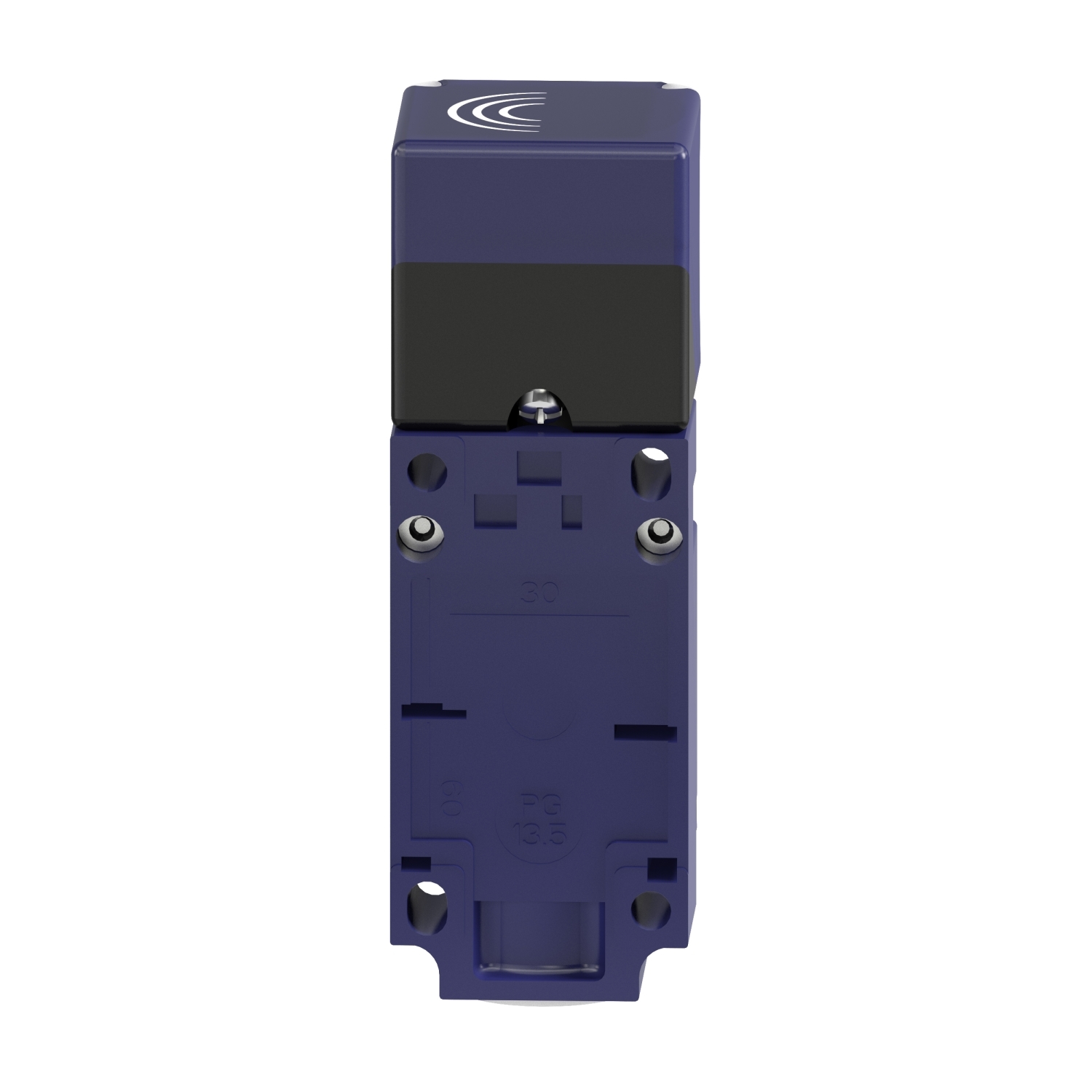

This XS turret head (40 x 40 x 117 mm) with an inductive proximity sensor has a PBT case. It has a supply voltage of 12V to 48V DC. This general purpose flat inductive proximity sensor has an increased range. It is mountable directly on a surface, thanks to 4 screws fixing points. It provides mechanical resistance and chemical withstand thanks to PBT case. It has a yellow LED for output status indication for easier sensor setup and troubleshooting. It can operate in very cold (-25C) and hot environments (+70C). Its increased sensing range makes it ideal for process where precise circulation of objects is not possible. It is CCC, ECOLAB, CSA, UL certified.

Manuals and Documentation
Catalog Number XS8C4A1PCP20
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Application Mobile equipment
Connector Screw-clamp terminals, 4 x 1.5 mm²
Enclosure PBT
Indicator Supply on 1 LED green);output state 1 LED yellow)
Material Plastic
Mounting Flush
Sensing Range 20 MM,> 0.59...1.57 IN (> 15...40 MM)
Sensor 40 MM,40 MM,INDUCTIVE PROXIMITY SENSOR
Special Features PLASTIC
Standard IP67 conforming to IEC 60529;IP65 conforming to IEC 60529;IP69K conforming to DIN 40050;CE
Supply Voltage 12...48 V DC reverse polarity protection
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=181658541&lang=en-us
GTIN 03389119058254
Item Type Inductive proximity sensor;Form 40 x 40 x 117
Operating Temperature -25-70 A Degrees C
