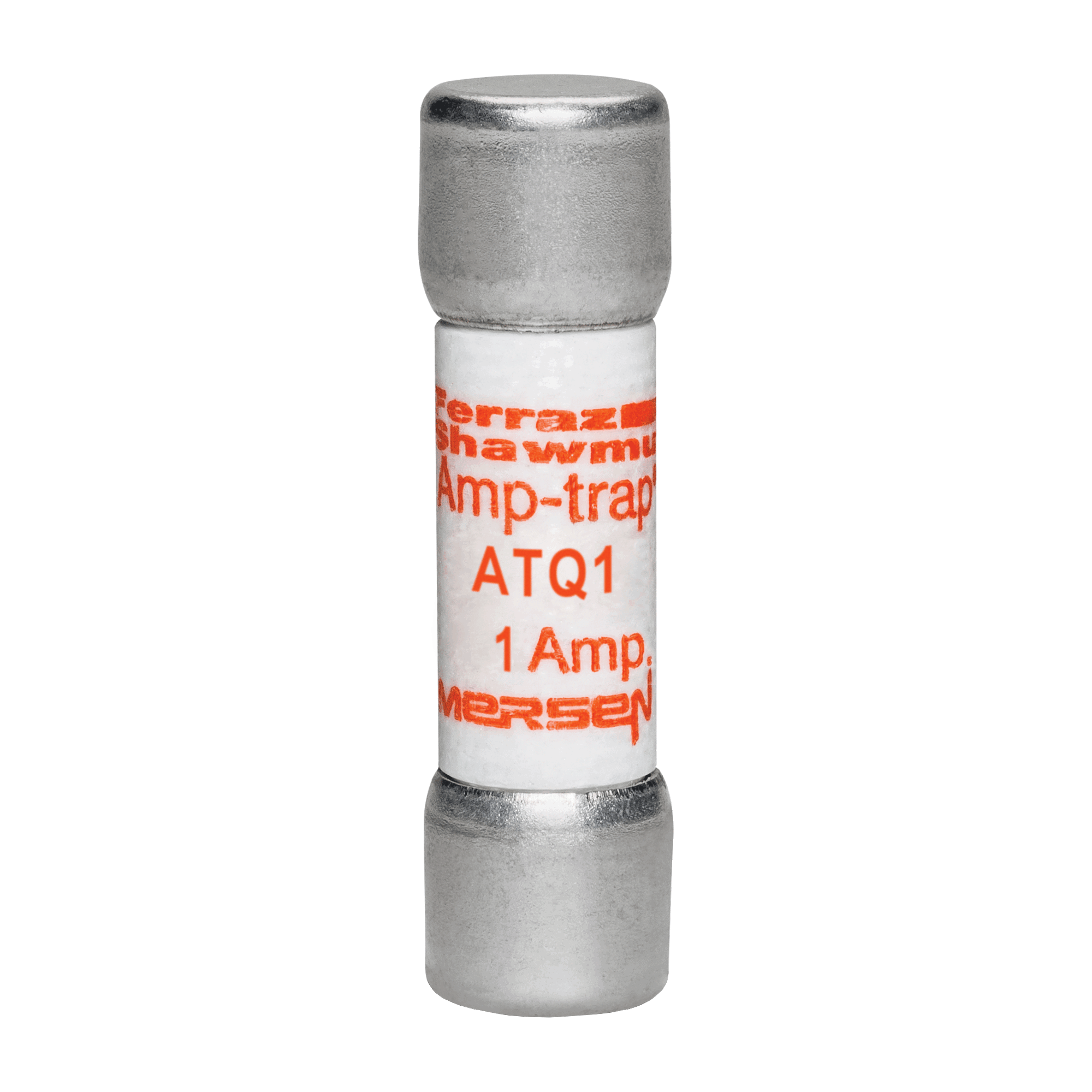

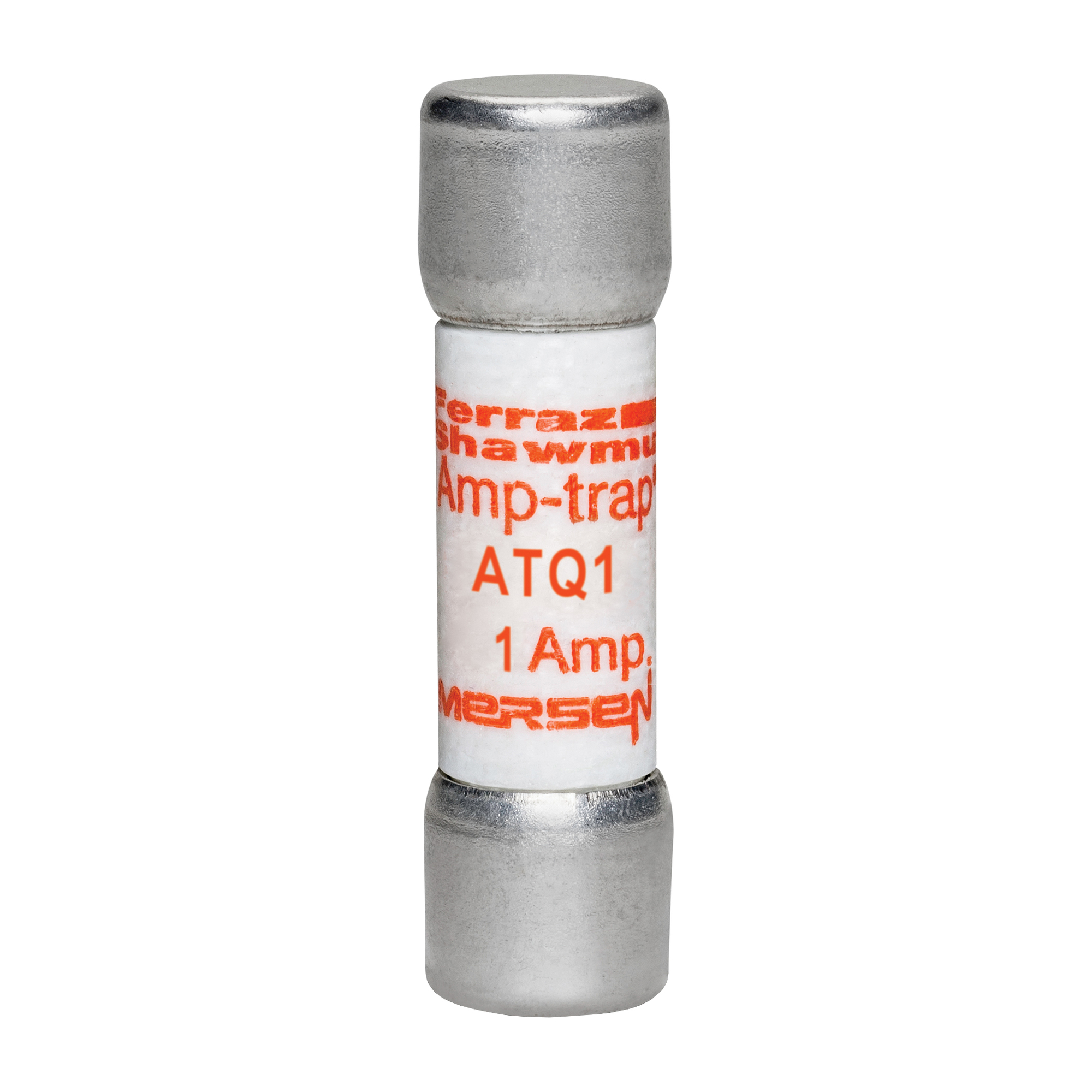

ATQ1 Amp-Trap Low Voltage Time Delay Fuse, 1 A, 500 V AC, 10 kA, Class Midget, Cylindrical Body
- MFR:
- Mersen
- MFR #:
- ATQ1
- UPC:
- 782001903480
- Item #:
- 101704
ATQ1 Amp-Trap Low Voltage Time Delay Fuse, 1 A, 500 V AC, 10 kA, Class Midget, Cylindrical Body
- MFR #:
- ATQ1
- UPC:
- 782001903480
- Item #:
- 101704
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$78.24
each
Fuse ATQ - Midget - Time-Delay 500VAC 1A Ferrule Amp-Trap
Manuals and Documentation
| Catalog Number | ATQ1 |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 1 |
| Application | Supplemental protection of lighting, solenoid, motor and transformer circuits |
| Connection | Ferrule |
| Interrupt Rating | 10 KA |
| Mounting | Clip |
| Special Features | Numerous ratings for a wide variety of applications up to 500VAC Time-delay (12 seconds at 200 percent rating) for circuits with high inrush current Can be used with UltraSafe™ Fuse holders 1 1/2" x 13/32" (10 mm x 38 mm) dimensions |
| Standard | UL listed to standard 248-14 File E33925 CSA Certified to Standard C22.2 No. 248.14 |
| UPC | 782001903480 |
| GTIN | 00782001903480 |
| Item Type | Midget Fuses |
| Size | 1.5 x 0.41 |
| Voltage Rating | 500 |
