Rittal Corp

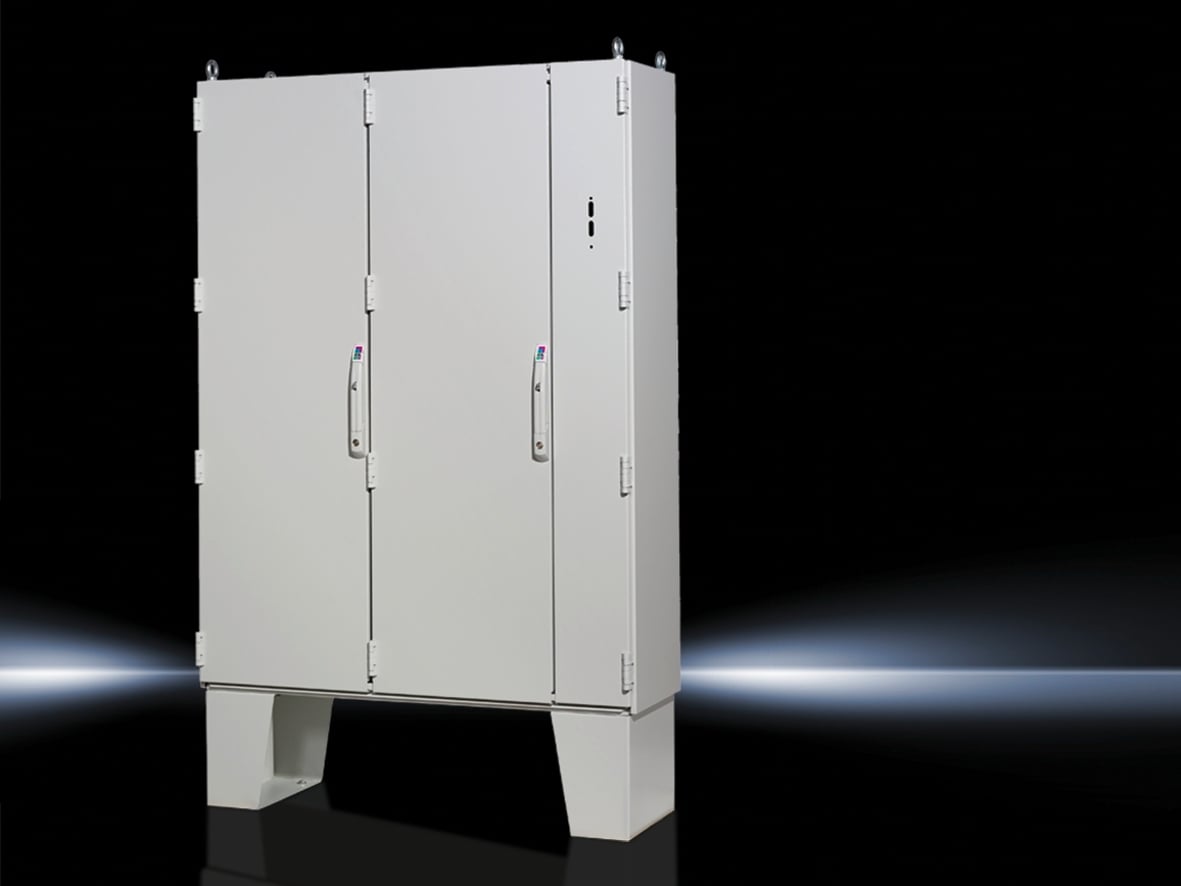

8018809 TS 8 Double Door Disconnect Floor Mount Enclosure, 63 in L x 63 in W x 16 in D, NEMA 12/IP55 NEMA Rating, Carbon Steel

MFR:
Rittal
MFR #:
8018809
UPC:
639889855526
Item #:
101519

Availability

Location Available Qty
Available Available to Order
$4,339.74 each

Floor mount Disconnect TS 8 enclosure, material: Enclosure frame: Sheet steel, 1.5 mm, Roof: Sheet steel, 1.5 mm, Door: Sheet steel, 2.0 mm, Rear panel: Sheet steel, 1.5 mm, Side panel: Sheet steel, 1.5 mm, Mounting plate, 3.0mm Zinc-plated, surface: Enclosure frame: Dipcoat-primed, Door, roof, rear panel and side panel: Dipcoat-primed, powder-coated on the outside, textured paint, color: RAL 7035, Mounting plate, Zinc-plated, supply includes: Enclosure frame, main door with hinged flange door with cutout for disconnect handle, Roof plate, Rear panel, Side panel, Mounting plate, 4 eyebolts, Lock: 3 mm double-bit, description: Floor mount TS 8 with mounting plate. Protection category IP 55. Roof, rear panel and side panel are internallt fastened for added security. Includes pre-mounted 12 floor stand kit.

Features

  • Dimension: 63 Inch Width x 15.700 Inch Depth
  • Trim panel with swing levers top and bottom & universal cutout for disconnect handle
  • Roof, base pan, sidewalls and rear wall(s)
  • Floor stands provide additional height and access for cleaning under the enclosure
  • Mounting panel included
  • Handle interlocking kit 8611.310 included
Catalog Number 8018809
Manufacturer Rittal
Brand Rittal Corp
Country of Origin United States
Made in USA Yes
Application Disconnect Enclosure
Material Carbon Steel
RoHS Indicator Under Review
UPC 639889855526
GTIN 00639889855526
Item Type Freestanding Enclosure
Length 88.0000
Length UOM Inch
Width 36.0000
Width UOM Inch
Height 78.0000
Height UOM Inch
Weight 208.999
Weight UOM Pounds
