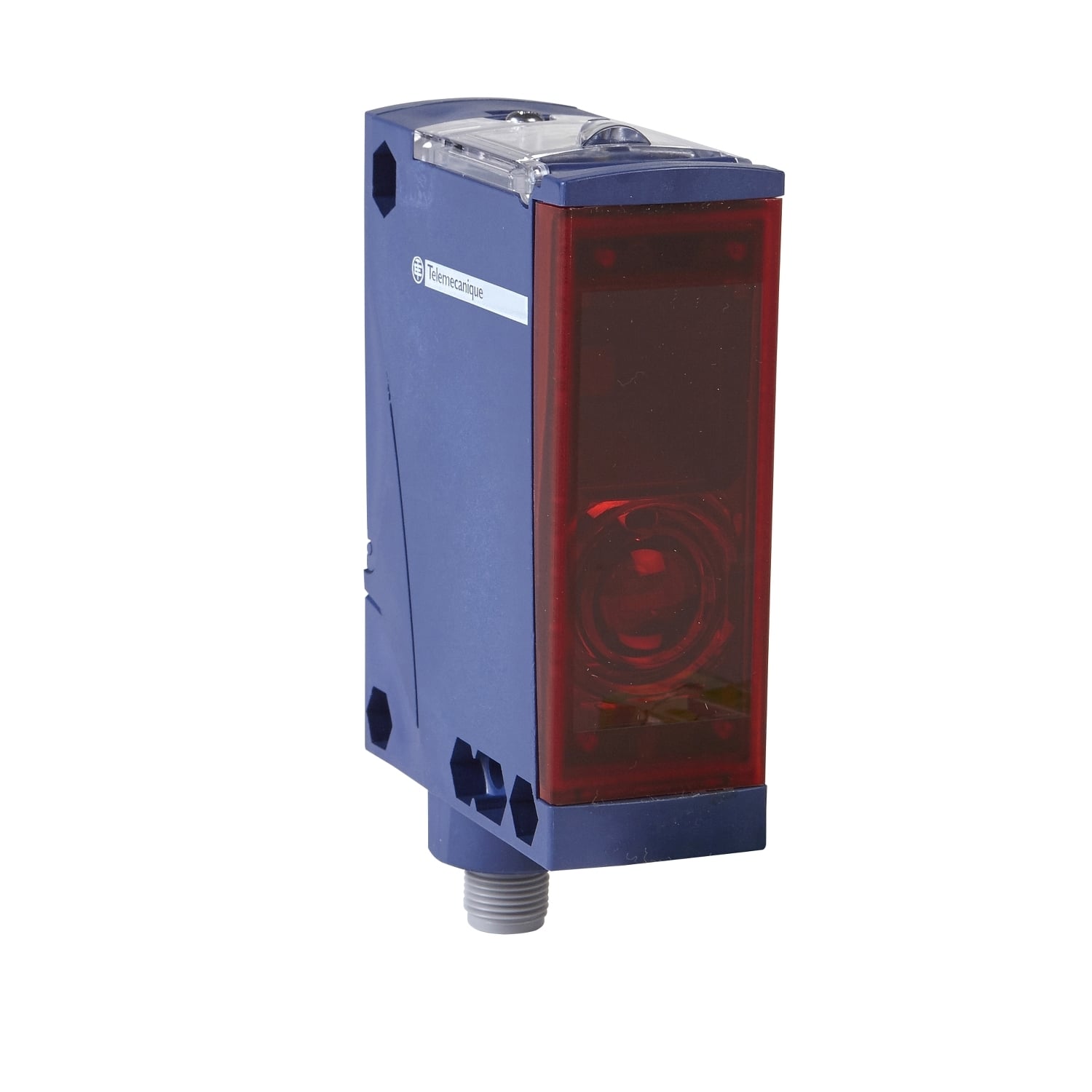

XUX9APBNM12 OsiSense XU XUX Series Singlemode Compact Photoelectric Sensor, 11 m, Red Sensing Beam, 25 ms Response, PNP 1NC Output
- MFR:
- Telemecanique Sensors
- MFR #:
- XUX9APBNM12
- UPC:
- 785901501213
- Item #:
- 1014643
XUX9APBNM12 OsiSense XU XUX Series Singlemode Compact Photoelectric Sensor, 11 m, Red Sensing Beam, 25 ms Response, PNP 1NC Output
- MFR #:
- XUX9APBNM12
- UPC:
- 785901501213
- Item #:
- 1014643
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |

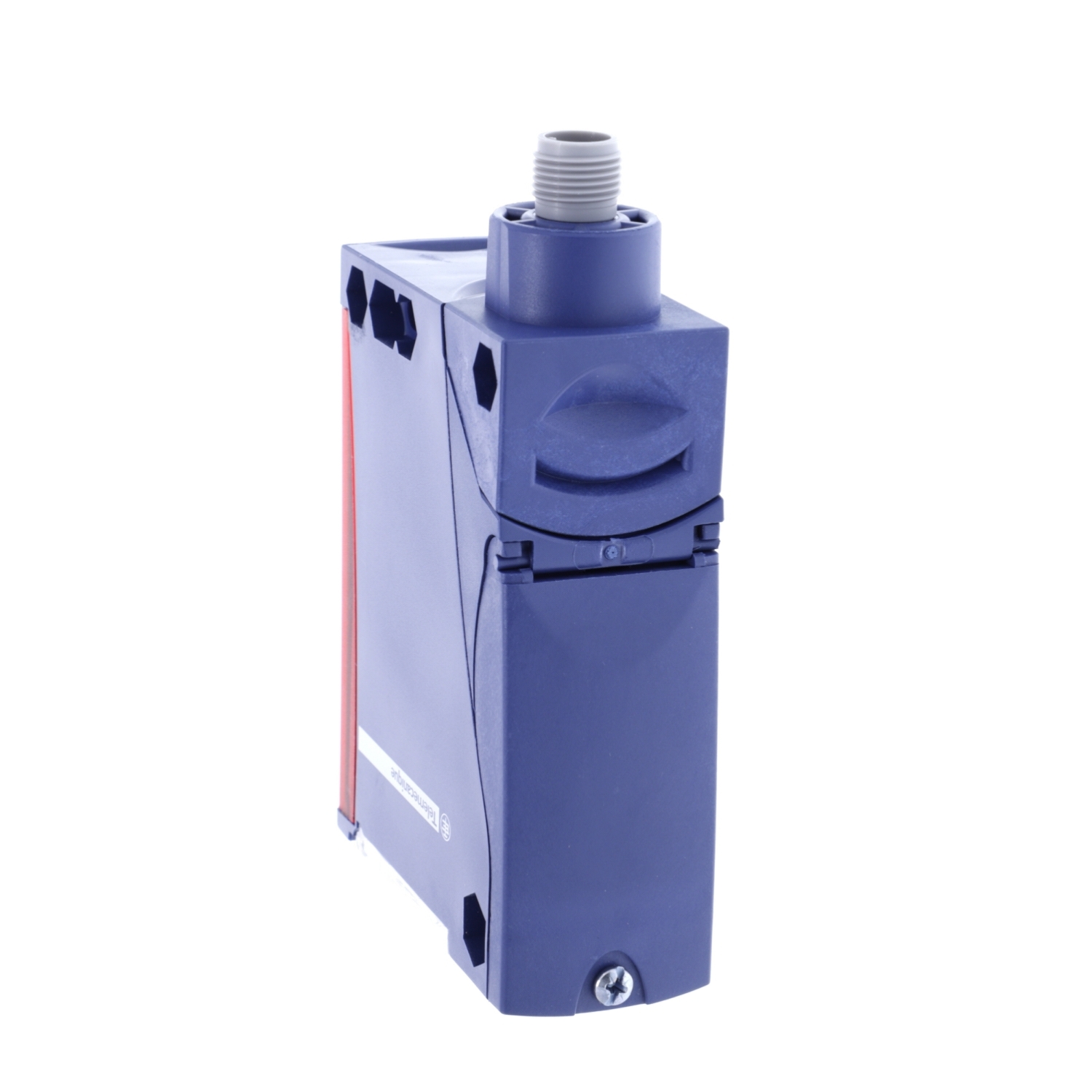

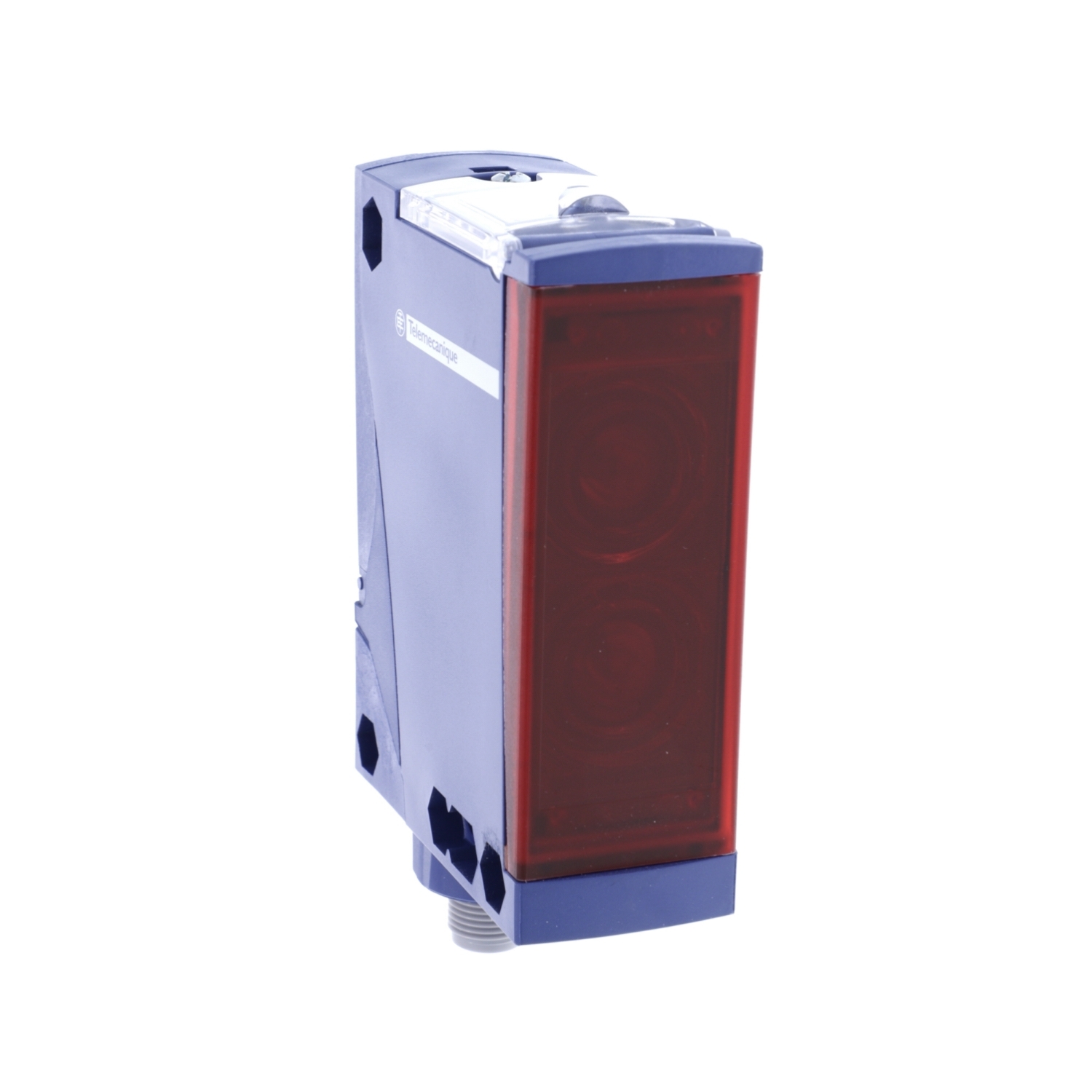

This compact design single mode (polarised reflex system) photo-electric sensor has a PBT case. It has a supply voltage of 12V to 24V DC. This mono-mode rectangular photoelectric sensor has a painted aluminium and polyamide construction, is mountable directly on a surface or bracket, thanks to its 4 fixing points. It has VALOX PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 2 LED display allows to identify status of the sensor and beam instability, to facilitate troubleshooting. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25C) and hot environments (+55C). It has a standard M12 connector, compatible with all existing market sensor cabling. It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.
Manuals and Documentation
| Catalog Number | XUX9APBNM12 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | - |
| Connection | 1 male connector M12, 4 pins |
| Enclosure | IP65 DOUBLE INSULATION CONFORMING TO IEC 60529-IP67 DOUBLE INSULATION CONFORMING TO IEC 60529,PBT |
| Operating Cycles | <= 20 Hz |
| Output | PNP;1 NC;Discrete;Relay |
| Sensing Range | 11-11 M POLARISED REFLEX NEED REFLECTOR XUZC50,> 16.4...49.21 FT (> 5...15 M) |
| Special Features | 1 LED yellow)output state;1 LED red)instability;1 LED green)supply |
| Standard | CE,IP67 DOUBLE INSULATION IEC 60529-IP65 DOUBLE INSULATION IEC 60529 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=876220&lang=en-us |
| UPC | 785901501213 |
| GTIN | 03389110171518 |
| Item Type | General purpose single mode;Polarised reflex;Compact 92 x 71;Photo-electric sensor |
| Size | 3.03 |
| Environmental Conditions | WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR) |
| Operating Temperature | -25-55 A Degrees C |
| Voltage Rating | 24...120 V AC/DC |
| Wattage | 2 W AC/DC |
