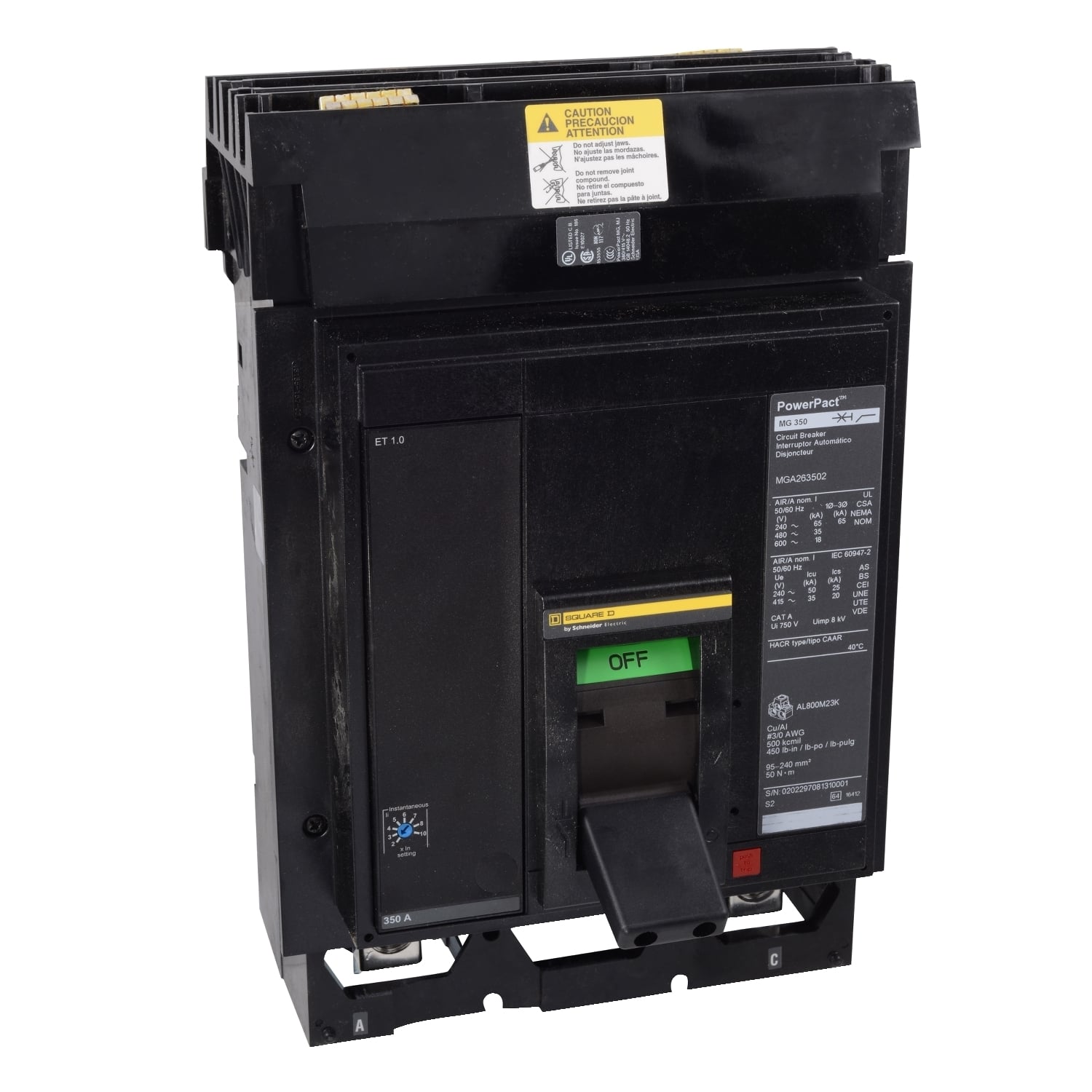

MGA36300YP Power Pact Circuit Breaker, 600 V AC, 300 A, 65 kA at 240 V AC/35 kA at 480 V AC/18 kA at 600 V AC/50 kA at 240 V AC/35 kA at 380/415 V AC Interrupt, 3 Poles, Electronic Trip
- MFR:
- Schneider Electric
- MFR #:
- MGA36300YP
- Item #:
- 1010125
MGA36300YP Power Pact Circuit Breaker, 600 V AC, 300 A, 65 kA at 240 V AC/35 kA at 480 V AC/18 kA at 600 V AC/50 kA at 240 V AC/35 kA at 380/415 V AC Interrupt, 3 Poles, Electronic Trip
- MFR #:
- MGA36300YP
- Item #:
- 1010125
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
PowerPacTM-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT M-Frame circuit breakers have either a fixed long time electronic trip unit or an adjustable amperage version. This circuit breaker has an electronic trip unit, ET 1.0. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT M, 300A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. This unit includes a factory installed handle padlocking device, off or on. PowerPacT M circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Manuals and Documentation
| Catalog Number | MGA36300YP |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Color | Black |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458436406&lang=en-us |
| GTIN | 03606486284667 |
| Width | 8.27 |
| Width UOM | Inch |
| Height | 12.86 |
| Height UOM | Inch |
| Depth | 8.05 IN |
