Appleton

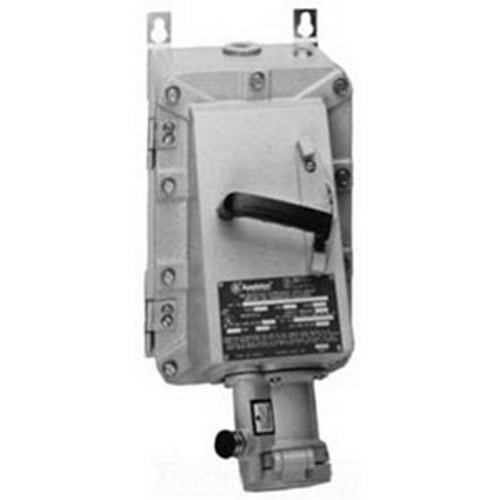

Receptacle with Mounting Box; 100 Amp, 480 Volt AC, 4-Pole, 3-Wire, Pressure Wire Terminal

MFR:
Appleton Electric
MFR #:
EBR1034EH100
UPC:
781381187923
Item #:
100771

Availability

Location Available Qty
Available Available to Order
$11,028.01 each

EBR Series Receptacle With Mounting Box, Number Of Poles: 4, Number Of Wires: 3, Amperage Rating: 100 AMP, Voltage Rating: 480 VAC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Nema Rating: NEMA 3, 3R, 4, 4X, 7

Manuals and Documentation
Catalog Number EBR1034EH100
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 100
Application For ACP Plugs
Connection Pressure Wire Terminal
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Mounting Surface
NEMA Rating 3, 3R, 4, 4X
Number of Poles 4
Number of Wires 3
Phase 3
Special Features Includes 3-pole 100 AMP EHD circuit breaker; Interlocked circuit breaker provides interlocked connect and disconnect operation as well as short circuit and thermal time delay overload protection; Explosionproof, dust-Ignitionproof; Weatherproof spring cover; Energized receptacle contacts deeply recessed to reduce danger of accidental touching; Spring door keeps dust out of receptacle when plug is not in use, screw cap also supplied; Brass contacts exert constant pressure along entire contact surface and provide superior electrical contact; Contacts have beryllium copper wire springs; Insulators provide superior dielectric and mechanical strength and lowest arc tracking; 1-1/2 NPT tapped conduit openings; one top to bottom; Fiber glass reinforced polyester insulating blocks; For lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, pumps; Flip cover suitable for NEMA 3, 3R only; NEMA 4 rating maintained with Appleton NEMA 4 plug installed
Standard Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups F, G; Class III; UL 1010 (UL 1203), UL 894, UL 1682, UL 1686; UL Listed: E79132, E10784, E313360
UPC 781381187923
GTIN 00781381187923
Item Type EBR Series Receptacle With Mounting Box
Voltage Rating 480
