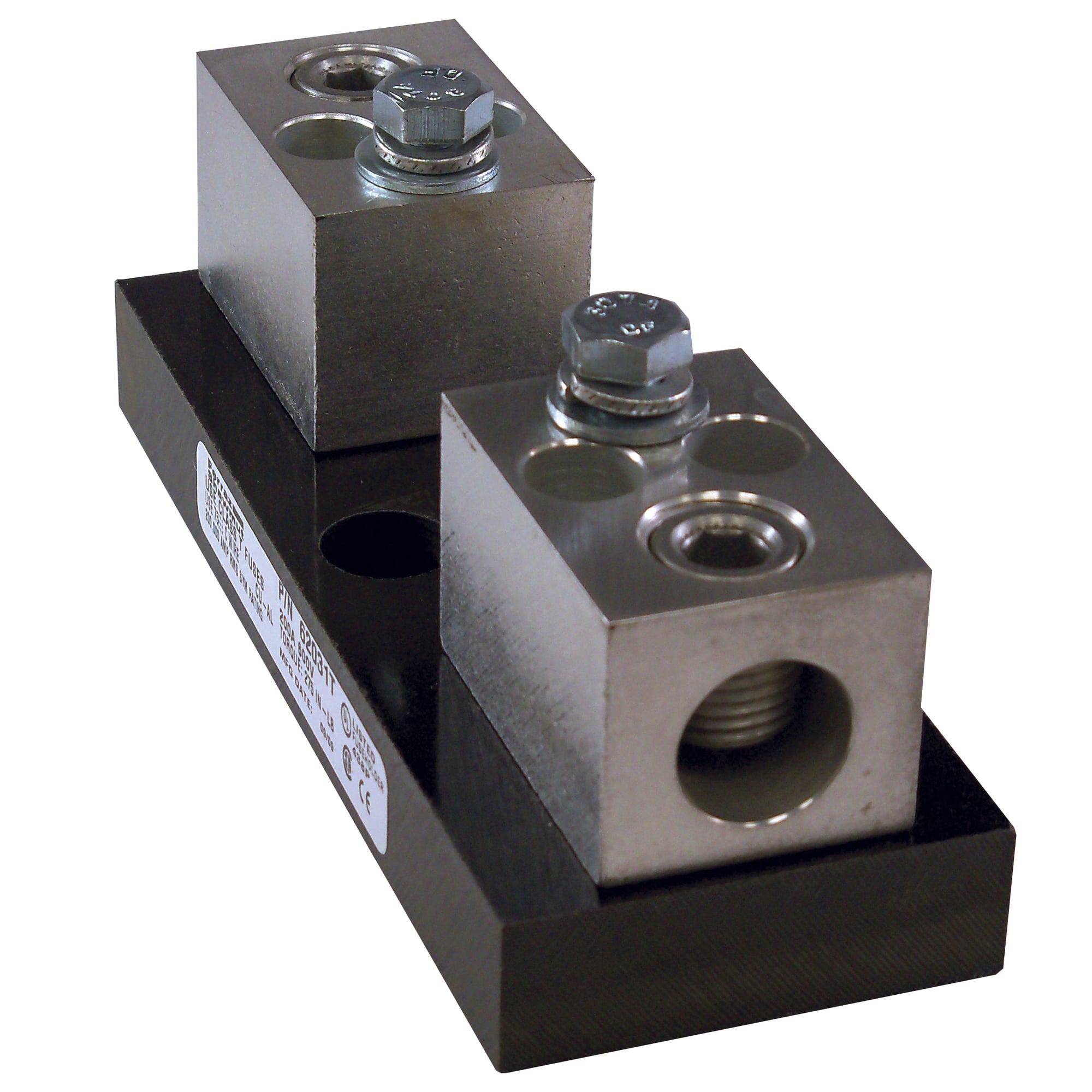

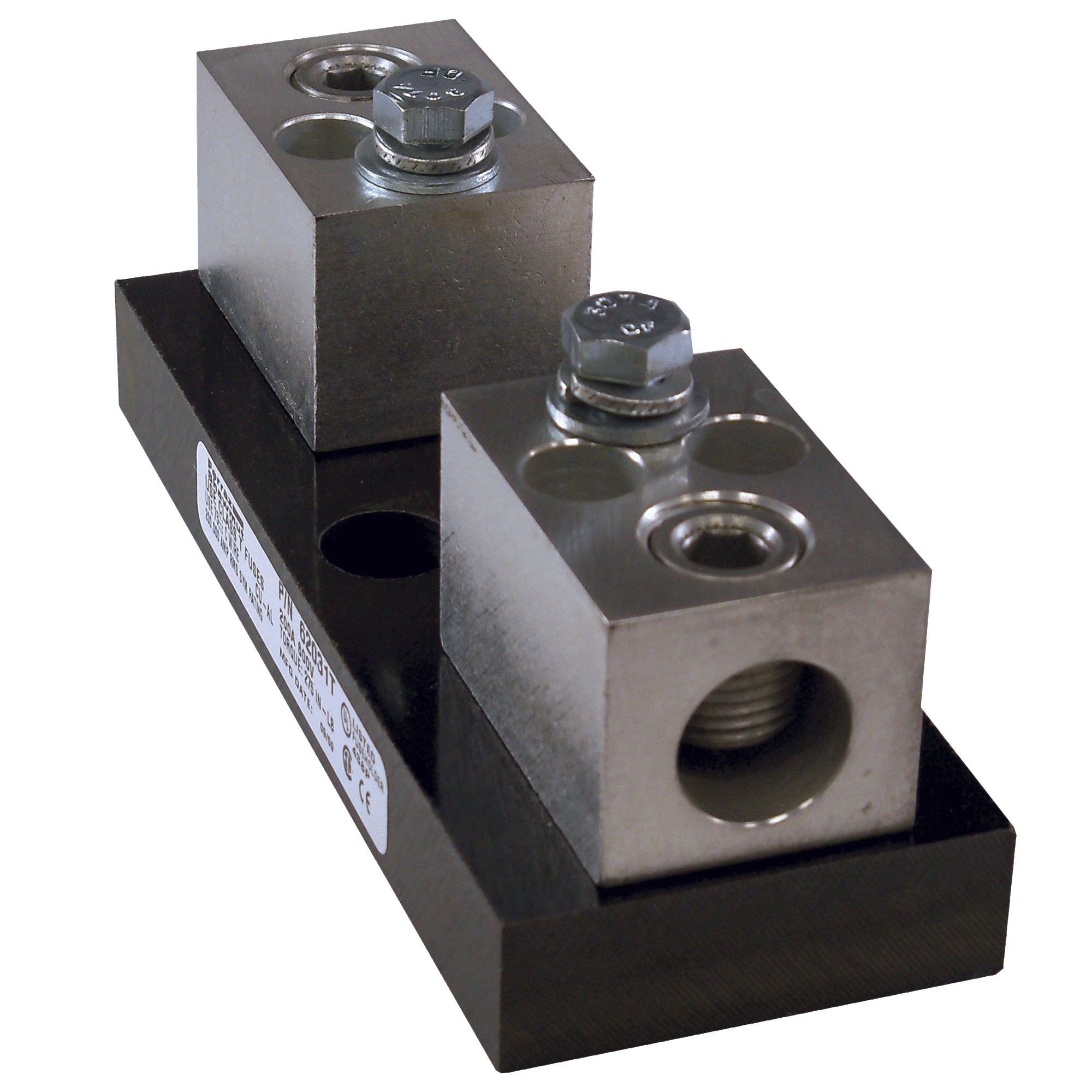

62031T Open Style Fuse Block, 600 V AC/300 V DC, 200 A, Class: T, 6 AWG to 350 kcmil Wire, 1 Poles
- MFR:
- Mersen
- MFR #:
- 62031T
- UPC:
- 782001675646
- Item #:
- 1007679
62031T Open Style Fuse Block, 600 V AC/300 V DC, 200 A, Class: T, 6 AWG to 350 kcmil Wire, 1 Poles
- MFR #:
- 62031T
- UPC:
- 782001675646
- Item #:
- 1007679
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Fuse Block 600VAC 600VDC Class T 200A 1-Pole Box
Manuals and Documentation
| Catalog Number | 62031T |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 200 |
| Connection | Box |
| Material | Phenolic |
| Mounting | Screw |
| Number of Poles | 1 |
| Phase | 1 |
| Special Features | Unique integral DIN-rail adapters for 600V, 30 & 60A blocks Full barrier design (30 & 60A) increases pole to pole safety Unique adder-block design (30 & 60A) for design flexibility Spring reinforcing standard for all 30 & 60A clips Features high conductivity copper alloy fuse clips Cool running high amperage (100 - 600A) connectors Copper connectors available 30 - 600A |
| Standard | All fuse blocks meet the requirements of UL 4248 UL listed, guide IZLT, File E52283 UL recognized component guide IZLT2, file E52283 CSA certified class 6225, File 32169 |
| UPC | 782001675646 |
| GTIN | 00782001675646 |
| Item Type | UL/CSA Fuse Bases |
| Size | 6 x 2.25 x 2.5 |
| Voltage Rating | 600 |
