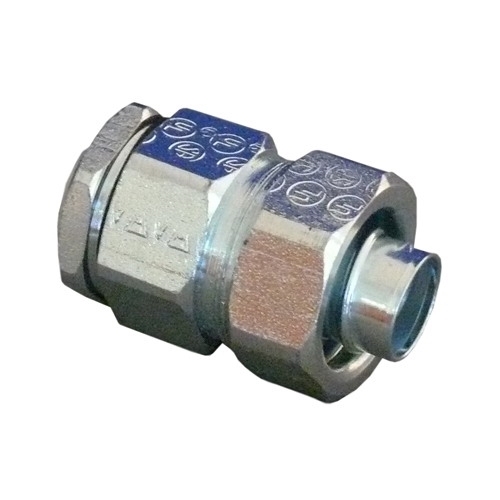

Flexible Metallic Straight Liquidtight Connector, 1 inch, Malleable Iron, Zinc Electroplated
- MFR:
- Appleton Electric
- MFR #:
- STN-100
- UPC:
- 781381684859
- Item #:
- 100759
Flexible Metallic Straight Liquidtight Connector, 1 inch, Malleable Iron, Zinc Electroplated
- MFR #:
- STN-100
- UPC:
- 781381684859
- Item #:
- 100759
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$63.10
each
STN Series Straight Liquidtight Connector, Size: 1 IN, Material: Steel, Finish: Zinc Electroplate, Insulation: Insulated Throat, Dimensions: 1-3/4 IN Length X 1.81 IN Height, Hole Diameter: 1.34 - 1.47 IN, Wall Thickness: 0.06 - 1/4 IN, S
Manuals and Documentation
| Catalog Number | STN-100 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Liquidtight Flexible Metal Conduit Connections To Sheet Metal Enclosure |
| Finish | Zinc Electroplate |
| Insulation | Insulated Throat |
| Material | Steel |
| Special Features | Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Flame resistant, insulating insert recessed into hex-head wedge adapter protects against wire damage, without reduction in throat diameter; Space-saving hex-hub wedge adapter fits nearly flush against inside walls of enclosures, providing maximum wiring room; Suitable for wet locations |
| Standard | Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1 |
| UPC | 781381684859 |
| GTIN | 00781381684859 |
| Item Type | STN Series Straight Liquidtight Connector |
| Size | 1 |
