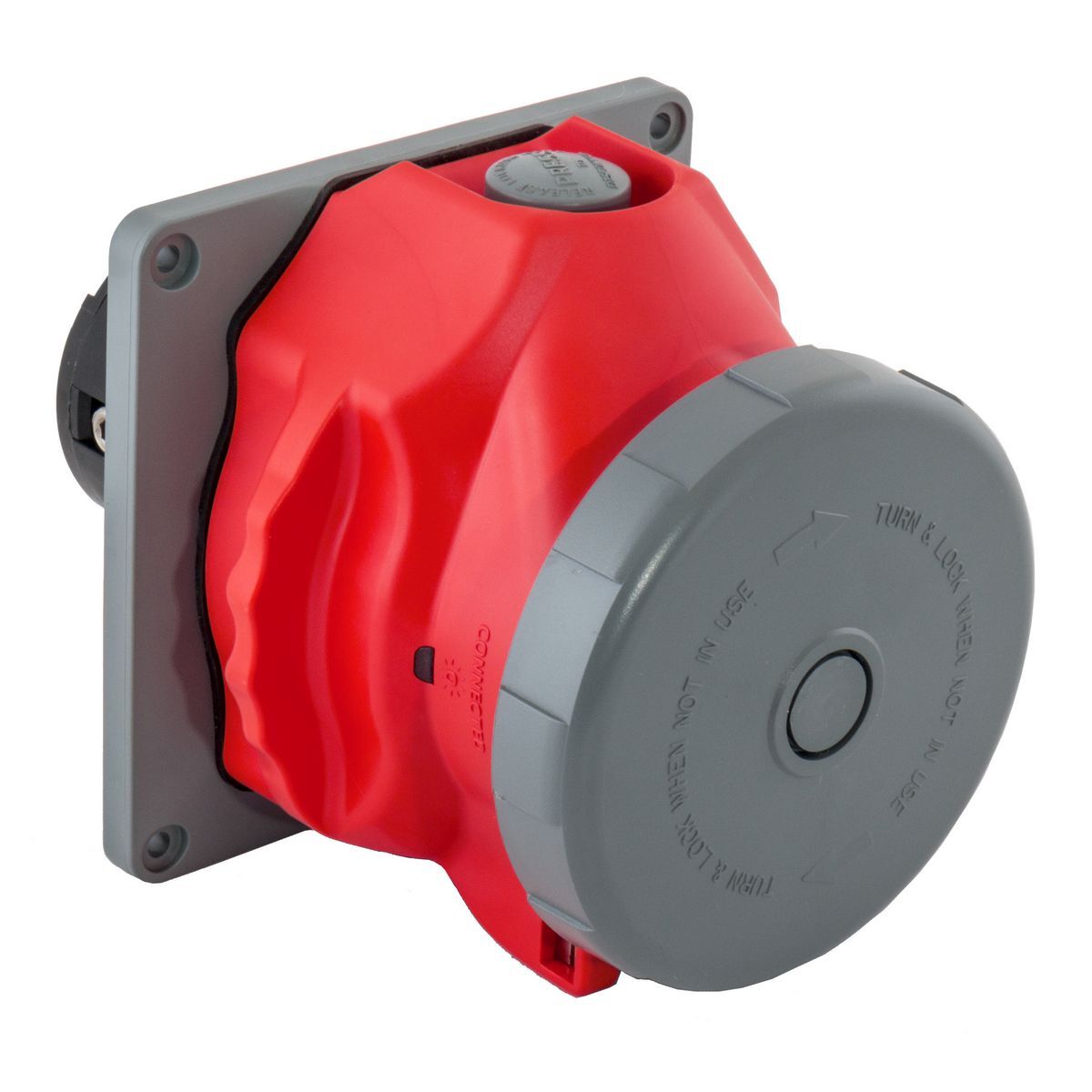

Advantage HBLS4100R7W 3-Phase Female Grounding Heavy Duty Switch Rated Standard Pin and Sleeve Receptacle, 480 V AC, 100 A, 3 Poles, 4 Wires, Red
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBLS4100R7W
- UPC:
- 783585575377
- Item #:
- 1006794
Advantage HBLS4100R7W 3-Phase Female Grounding Heavy Duty Switch Rated Standard Pin and Sleeve Receptacle, 480 V AC, 100 A, 3 Poles, 4 Wires, Red
- MFR #:
- HBLS4100R7W
- UPC:
- 783585575377
- Item #:
- 1006794
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Advantage Series Pin and Sleeve Switch-Rated - Hubbell Wiring Device-Kellems Advantage Series Pin and Sleeve SwitchRated Devices are IEC 60309-2 compatible devices that are approved as a disconnecting means for motor and branch circuits. Compact design, this device is similar in size to standard IEC 60309-2 devices. Robust and durable housing, UV-stabilized, impact and corrosion-resistant PBT housing is designed to withstand harsh industrial environments. Stainless steel hardware provides superior corrosion resistance in wet and harsh environments Receptacles mount to standard Hubbell IEC Pin and Sleeve back boxes. The Advantage Series has a UL witnessed IP69k and 4X,12 environmental rating, two power-indicating LEDs, continuous ground engagement, labelless laser markings and a compact and ergonomic design. Hubbells Pin and Sleeve connections have always been safe that hasnt changed. The Advantage series simply has more Advantages.
Manuals and Documentation
| Catalog Number | HBLS4100R7W |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | Puerto Rico |
| Made in USA | No |
| Amperage Rating | 100 |
| Application | Industrial/Commercial |
| Color | Red |
| Connection | Pressure Screw Terminal |
| Insulation | Insulated Body |
| Material | Composite |
| Mounting | Screw |
| Number of Poles | 3 |
| Number of Wires | 4-Wire |
| Phase | 3 |
| Special Features | Watertight |
| Standard | UL Listed, File E146033;CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2 |
| UPC | 783585575377 |
| GTIN | 00783585575377 |
| Item Type | Watertight Receptacle |
| Size | Standard |
| Environmental Conditions | Watertight |
| Temperature Rating | Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact, -25 Degrees with impact |
| Voltage Rating | 3 Phase 480 |
| Wire Size | #6AWG - #1AWG |
