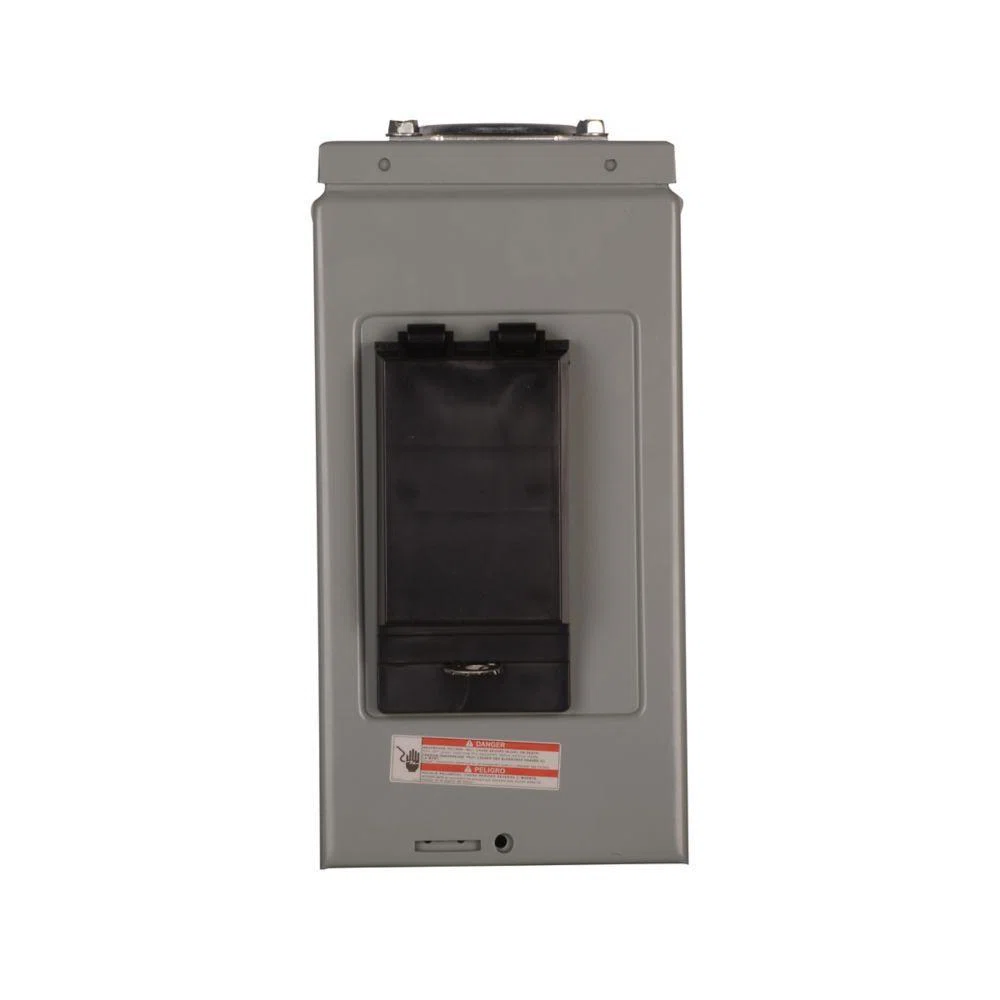

CH2L40RP 1-Phase Standard Main Lug Load Center, 120/240 V AC, 40 A, 4 Poles, 25 kA Interrupt
- MFR:
- Eaton
- MFR #:
- CH2L40RP
- UPC:
- 782114190425
- Item #:
- 100637
CH2L40RP 1-Phase Standard Main Lug Load Center, 120/240 V AC, 40 A, 4 Poles, 25 kA Interrupt
- MFR #:
- CH2L40RP
- UPC:
- 782114190425
- Item #:
- 100637
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$414.03
each
Eaton’s CH 3/4-inch loadcenters enclose CH circuit breakers for power distribution and circuit protection in residential and light commercial applications. Also called a breaker box, electrical box or even a fuse box, the main function is to take electricity supplied by the utility and distribute it throughout the home to feed lights and receptacles. Covers are typically packaged separately and available as surface or flush mount.
Manuals and Documentation
Features
- One-piece silver flash plated copper bus provides superior conductivity throughout the entire product line
- Steel backpan provides positive, reliable mounting
- Unique sandalwood finish provides an esthetically appealing, scratch resistant powder coating
- Type CH breakers include an industry exclusive "trip to Off" feature that allows a homeowner to easily identify a tripped circuit breaker
- Mechanical flag feature on CH breakers for easy trip indication
- Suitable for use as service equipment when not more than two service disconnecting mains are provided or when not used as a lighting and appliance panelboard
- Overhead feed applications
- Outdoor enclosure type
- Insulated/bondable single neutral
- Copper bus
| Manufacturer Part Number | CH2L40RP |
| Stripped Manufacturer Part Number | CH2L40RP |
| Brand | EATON |
| Manufacturer | Eaton |
| UPC | 782114190425 |
| Country Of Origin | US |
| Amperage Rating | 40 A |
| Dimensions | 9.5 in L x 4.5 in W x 3.13 in H |
| Enclosure Type | NEMA 3R |
| Housing Material | Metal |
| Mounting Type | Surface/Plug-On |
| Type | 1-Phase Standard |
| Voltage Rating | 120/240 V AC |
| Alternative Part Number | 7387383 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | Lifetime Limited |
| Standards Approvals | UL 67,UL 50 |
| Application | Industrial Facilities, Factories, Power Distribution, Control, Outdoor, Commercial and Residential Applications |
| Breaker Type | CH |
| Bus Rating | 40 A |
| Enclosure Box Size | NEMA 5R |
| Interrupt Rating | 25 kA |
| Number Of Circuits | 2 |
| Number Of Poles | 4 |
| Number Of Spaces | 2 |
| Wire Size | 14 to 6 AWG |
| Wiring Configuration | 3-Wire |
