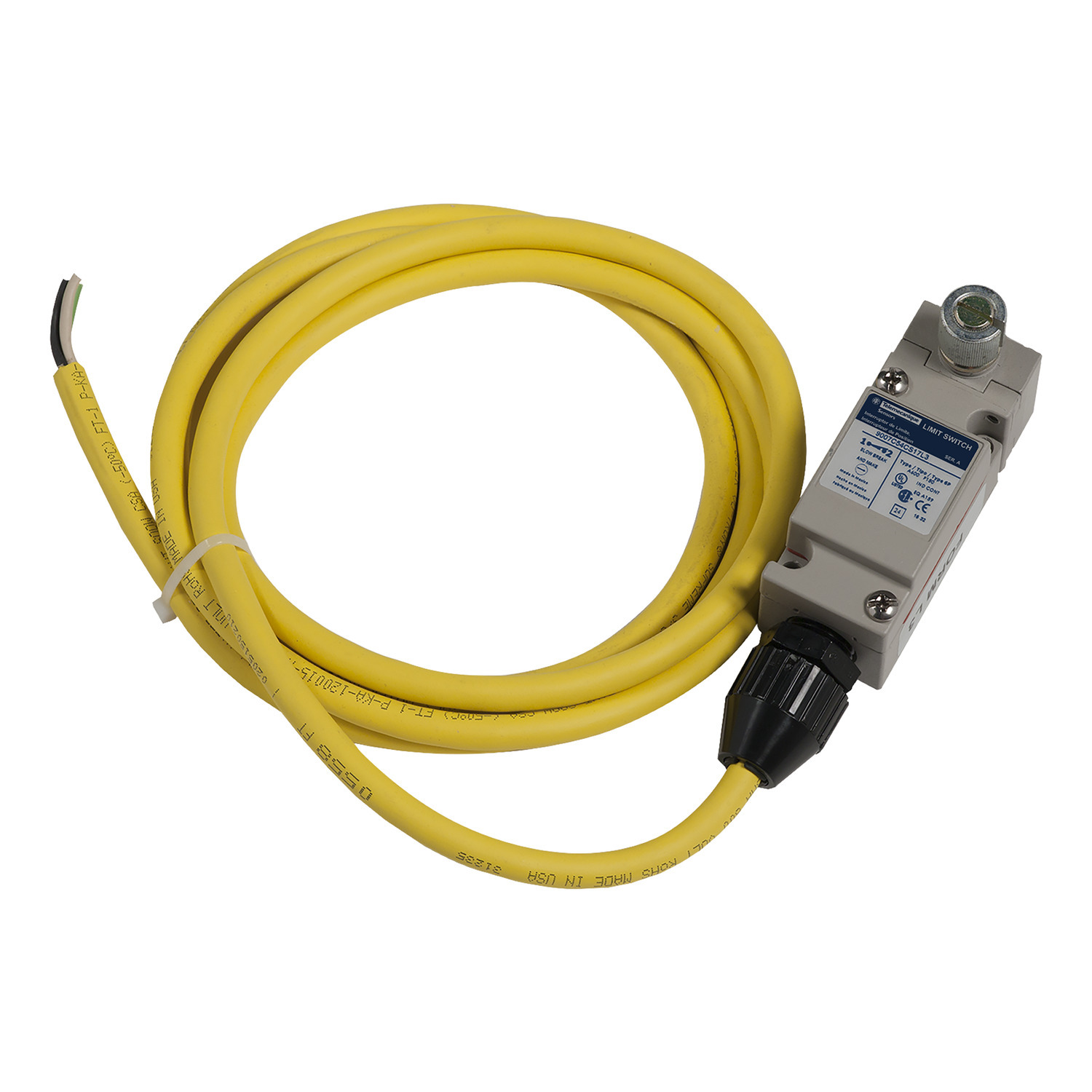

NEMA limit switch, 9007C, heavy duty, standard, spring return lever, special

MFR:
Telemecanique Sensors
MFR #:
9007C54CS17L3
UPC:
785901046059
Item #:
100549

Availability

Location Available Qty
Available Available to Order
$744.02 each

These industrial heavy duty limit switches are applied in almost any environments. This special maintained contact rotary lever arm switch has a standard body and receptacle which is good for most applications. Limit switch has one normally open and one normally closed contact. The snap action contacts will change state as the top push rod is moved. Contacts have an A600 and Q600 inductive ratings and 10A resistive rating. Switch has a 0.50 inch conduit entry with 14 NPT. Limit switch has a special finish. This limit switch special is UL listed and CSA certified. This product is certified by CE, UL Listed and CSA. The 9007C heavy duty metal limit switches, compact and standard, with 39mm plug in bodies or 69mm fixed body for hazardous locations. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.

Manuals and Documentation
Catalog Number 9007C54CS17L3
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Action CW and CCW;Snap action
Actuator spring return lever arm to be ordered separately; maintained
Amperage Rating 10
Application C,HEAVY DUTY,TURRET HEAD ROTARY LEVER
Contact Configuration 1 NO/1 NC;Form Z
Special Features STAINLESS STEEL
Standard UL Listed;CSA;CE
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=374629&lang=en-us
UPC 785901046059
GTIN 00785901046059
Item Type TURRET HEAD ROTARY LEVER
Size NPT CONDUIT ENTRY, CABLE OUTER DIAMETER: 0.5 IN
Environmental Conditions CHEMICAL POLLUTION RESISTANCE
Operating Temperature -20-185 A Degrees F
Voltage Rating 10 A, A600-10 A, Q600
