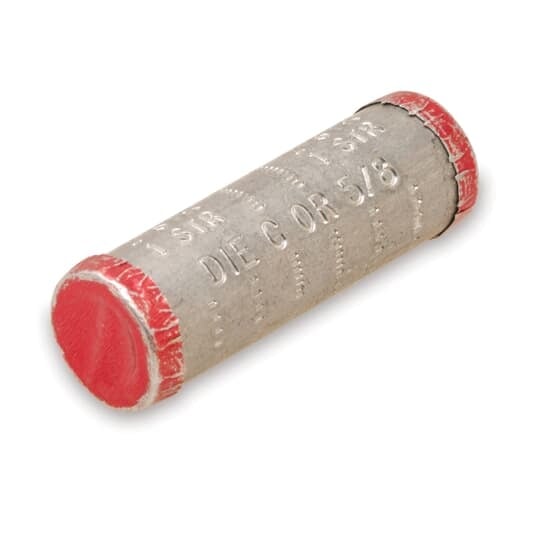

CS61 Blackburn CS Series Basic Non-Insulated Service Entrance Splice, 8 to 6 AWG Solid/Stranded Conductor, Die Code: 5/8, 2 in L, Aluminum
- MFR:
- ABB - Installation Products
- MFR #:
- CS61
- UPC:
- 783786100910
- Item #:
- 100526
CS61 Blackburn CS Series Basic Non-Insulated Service Entrance Splice, 8 to 6 AWG Solid/Stranded Conductor, Die Code: 5/8, 2 in L, Aluminum
- MFR #:
- CS61
- UPC:
- 783786100910
- Item #:
- 100526
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2.99
each
Manuals and Documentation
| Catalog Number | CS61 |
| Manufacturer | ABB - Installation Products |
| Brand | BLACKBURN MECHANICAL |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Basic, uninsulated Splices for Service Entrances. For Combinations of Aluminum-to-Aluminum or Aluminum-to-Copper Conductors |
| Conductor Range | End A: #8 STR , 6 SOL End B: #8 STR , 6 SOL |
| Connection | Compression |
| Material | Aluminum |
| Number of Conductors | 2 |
| Special Features | Constructed from Aluminum for High Conductivity. Solid Center Barriers and large Chamfers for easy cable insertion. Prefilled with Oxide Inhibitor to prevent oxidation and keep out moisture. All Splices are color coded and marked with strip lengths, installation die codes and compression locations, providing easy identification for easy installation |
| Standard | RUS Accepted. Complies with ANSI C119.4 when properly installed on Aluminum-to-Aluminum or Aluminum-to-Copper Conductors |
| UPC | 783786100910 |
| GTIN | 00783786100910 |
| Item Type | Compression Splice Service Entrance |
| Size | 2 Inch |
| Environmental Conditions | All Seasons / Conditions |
