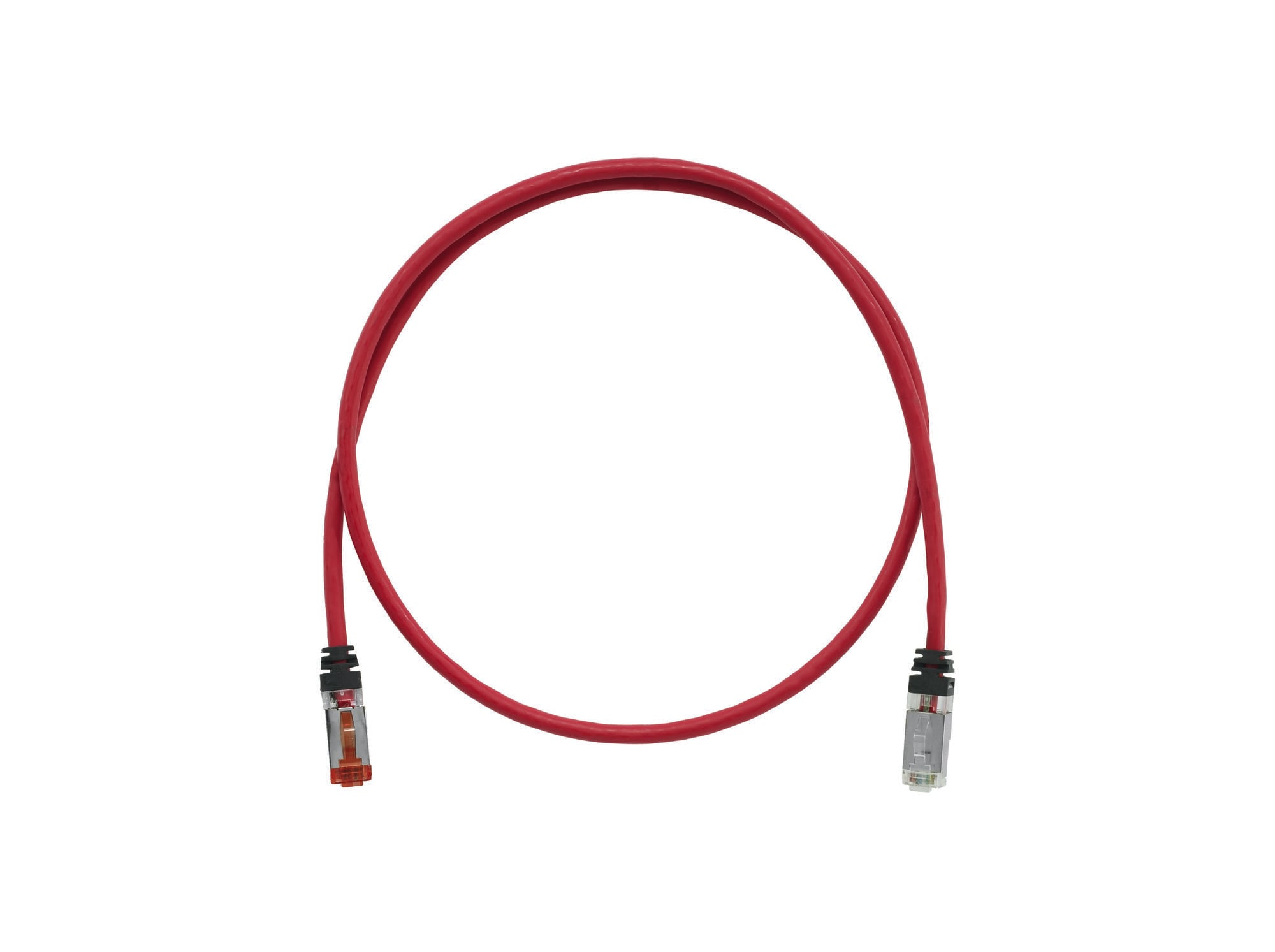

The TX6A 10Gig Keyed Cat 6A STP Patch Cord is a 14-Foot, Red cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable. It's equipped with a TX6A 10Gig Keyed Modular Plug on one end and a Non-Keyed Modular Plug on the other. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Manuals and Documentation
| Catalog Number | STPK6X14RD |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Multiple |
| Made in USA | No |
| Application | (1) 10GBASE-T Ethernet (2) Data center I/O consolidation(3) Data center server virtualization (4) Consolidation of network interconnects(5) Back-bone aggregation(6) Parallel processing and high speed computing |
| Color | Red |
| Conductor Material | Copper |
| Jacket Material | LSZH Material |
| Plug Type | Keyed Modular Plug |
| Standard | Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA, meets ANSI/TIA-1096-A requirements (formerly FCC Part 68), meets IEC 60603-7, meets IEC 60332-1, IEC 60754-1, IEC 61034-2, UL 1863 approved, Rated for 2500 cycles with IEEE 802.3af / 802.3at |
| UPC | 074983118687 |
| GTIN | 00074983118687 |
| Item Type | Shielded Patch Cord |
| Length | 14.00 |
| Length UOM | Inch |
| Outside Diameter | 0.23 IN |
| Temperature Rating | 140 °F |
| Wire Size | 26 |
