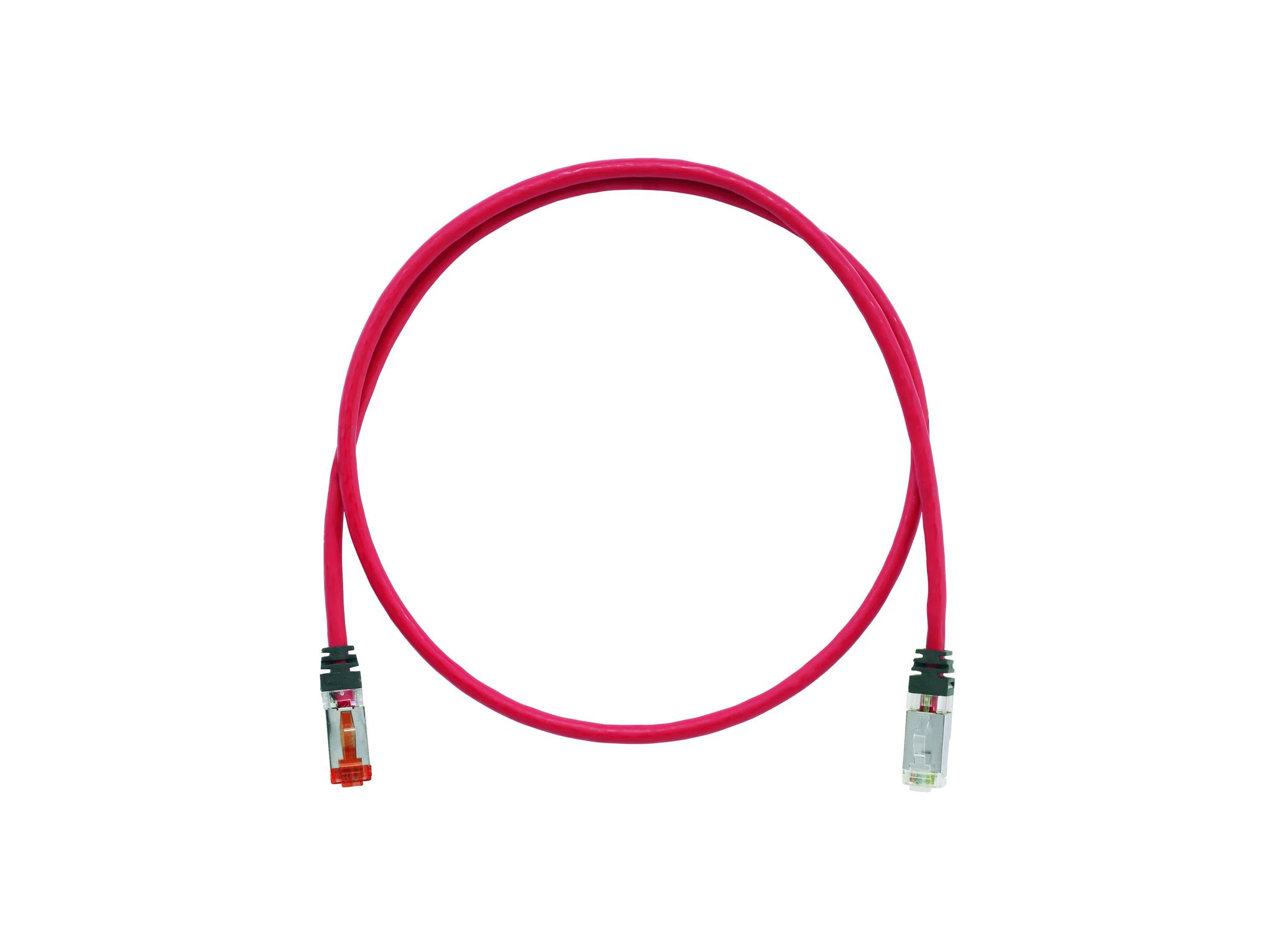

STPK6X7RD PanNet TX6A 10Gig Shielded Patch Cord, Cat 6A/Class EA, 26 AWG S/FTP Stranded Copper Conductor, Keyed Modular Plug x Non-Keyed Modular Plug Connector, 7 ft L Cord, Red
- MFR:
- Panduit
- MFR #:
- STPK6X7RD
- UPC:
- 074983118663
- Item #:
- 1005230
STPK6X7RD PanNet TX6A 10Gig Shielded Patch Cord, Cat 6A/Class EA, 26 AWG S/FTP Stranded Copper Conductor, Keyed Modular Plug x Non-Keyed Modular Plug Connector, 7 ft L Cord, Red
- MFR #:
- STPK6X7RD
- UPC:
- 074983118663
- Item #:
- 1005230
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Cat 6a/Class EA, keyed shielded patch cords shall be constructed of 26 AWG shielded stranded copper cable with a keyed modular plug on one end and a non-keyed modular plug on the other end. Keyed modular plugs shall be mechanically keyed with color specific positive and negative keying features to prevent unintentional mating with unlike keyed or non-keyed jack modules. Copper conductors in patch cable shall be twisted in pairs and separated by a quadrant separator. All four pairs shall be surrounded by a foil shield and a flame retardant jacket. Patch cords shall be used in all work area outlets and patch panels and shall be compatible with both T568A and T568B wiring schemes.
Manuals and Documentation
Features
- Color specific keys with positive and negative keying features
- 100% performance tested
- Centered de-embedded plug
- Integral pair manager
- Patented tangle-free latch
- Slender strain relief boot
- Robust construction
- Color specific keys with positive and negative keying features
- 100% performance tested for wire map, NEXT and return loss
- Center de-embedded plug
- Integral pair manager
- Patented tangle free latch prevents snags and provides easy release, saving time on frequent moves, adds and changes
- Slender strain relief boot
- Flexible stranded cable
- Provides identification of performance level, length and quality control number for future traceability
- Robust construction
| Manufacturer Part Number | STPK6X7RD |
| Brand | Panduit® |
| Manufacturer | Panduit |
| UPC | 074983118663 |
| EAN | 0074983118663 |
| Category Type | Cat 6A/Class EA |
| Color | Red |
| Conductor Size | 26 AWG |
| Conductor Type | S/FTP Stranded Copper |
| Connector Type | Keyed Modular Plug x Non-Keyed Modular Plug |
| Cord Length | 7 ft |
| Jacket Color | Red |
| Series | STPK6 |
| Temperature Rating | 14 to 140 deg F |
| Type | Shielded |
| Alternative Part Number | 10563080 | 10879585 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | Exceeds the requirements of ANSI/TIA/EIA568-B.2-10, ISO 11801 Class EA Edition 2.1, and IEEE 802.3an-2006, meets ANSI/TIA-968-A, meets IEC 60603-7, meets IEEE 802.3af and draft requirements of IEEE 802.3at for PoE Plus, UL 1863, RoHS Compliant | ARRA Compliant | Buy American Act Compliant | RoHS Compliant | IEC 60603-7 | IEEE 802.3af/802.3at/802.3bt Type 3, Type 4 | UL 1863 | CSA C22.2 | PoE Compliant |
| Application | For 10GBASE-T Ethernet, data center I/O consolidation, data center server virtualization, consolidation of network interconnects, back-bone aggregation, parallel processing, high speed computing applications |
